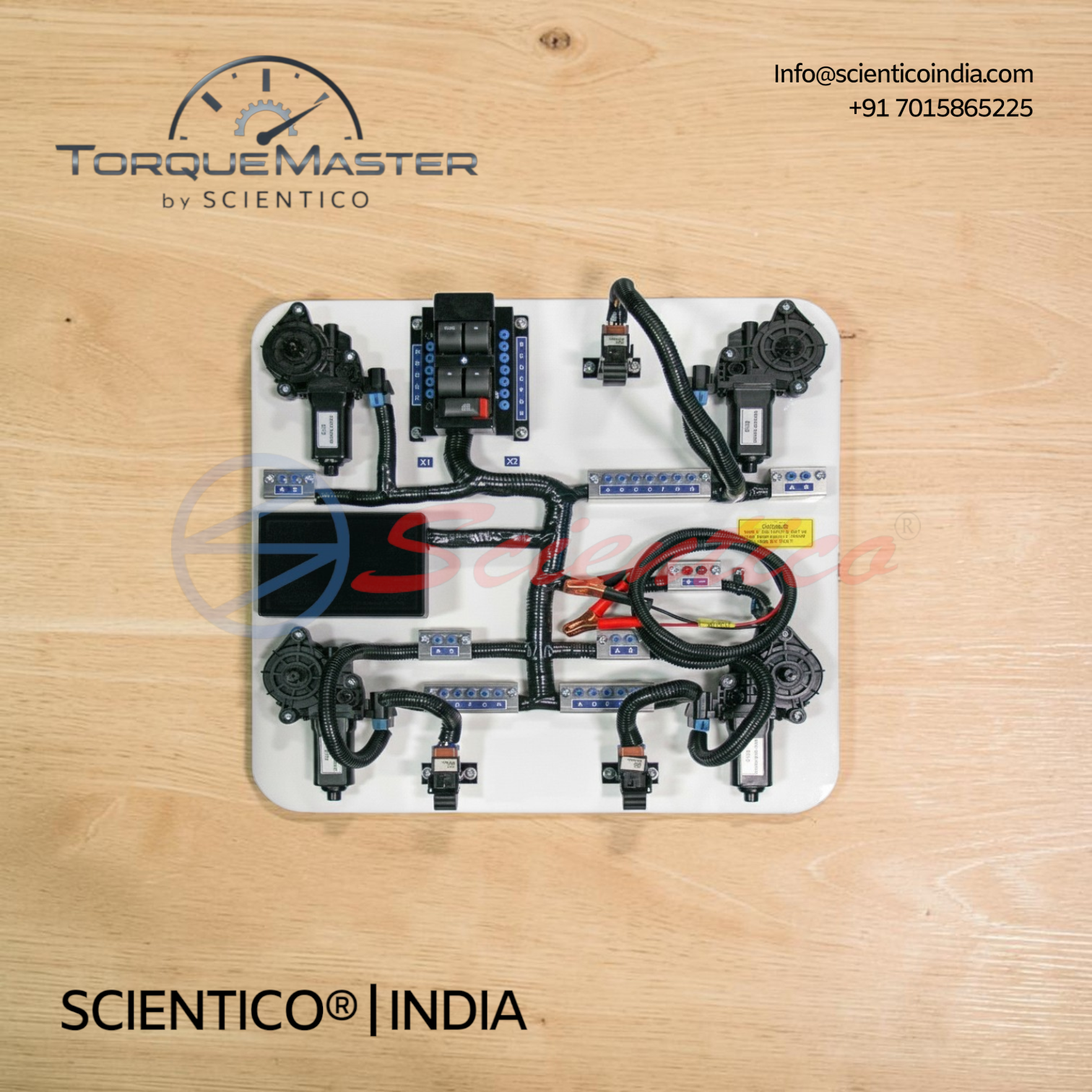

Power Window System Trainer Torquemaster-19 demonstrates a complete four-door power window system using OEM components and real-world circuit architecture. This Power Window System Trainer includes 4 window motors, master and slave switches, central door locking, and a lockable fault box with up to 4 insertable faults for diagnostic training. Diagnostic test points and detection terminals allow measurement of electrical signals, resistance, voltage, current, and frequency. It requires external 12V DC power and includes a user manual.
The Power Window System Trainer Torquemaster-19 allows for the demonstration of a complete power window system using real world components. This Power Window System Trainer is designed for the demonstration and explanation of the structure and components of automotive window systems.
Product Overview
The Torquemaster-19 features OEM components including window motors and switches with OEM matching wire colors. Terminal block receptacles are provided for diagnostic test points. The Power Window System Trainer can be used as a visual aid for students of mechanical subjects and as educational equipment for system repair and service procedures. Central door locking and electric window switches can be operated to demonstrate the working processes of the systems. Organic glass with aluminum rims is included. The diagram and real objects help trainees learn and analyze the working principles of the systems. The training platform is installed with detection terminals to detect electric signals, resistance, voltage, current, and frequency of circuit components. A lockable system fault box allows instructors to insert from one to four faults for student diagnostic learning.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Power Window System Trainer Torquemaster-19 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | Torquemaster-19 |
| Power Windows | 4 doors |
| Window Motors | 4 units |
| Switches | Master and slave switches |
| Fault Box | Lockable fault box with 4 faults |
| Test Points | Electrical test points for circuit diagnosis |
| Components | OEM components with OEM matching wire colors |
| Windows | Organic glass with aluminum rims |
| Diagnostic Capability | Detection terminals for electric signals, resistance, voltage, current, and frequency |
| Power Supply Required | External 12V DC |
| Length x Width x Height (approx.) | 600 x 600 x 300 mm |
| Weight (approx.) | 25 kg |
Technical Data
| Component | Detail |
|---|---|
| Window Motors | 4 units, OEM components |
| Switches | Master and slave switches for window control |
| Central Door Locking | Included for system demonstration |
| Fault Insertion System | Lockable fault box, allows 1 to 4 fault insertions |
| Test Terminal Block | Receptacles for diagnostic test points |
| Detection Terminals | For measurement of electric signals, resistance, voltage, current, and frequency |
| Glazing | Organic glass with aluminum rims |
Key Features
- Components: OEM components (window motors, switches, with OEM matching wire colors)
- Fault Box: Lockable system fault box allowing 1 to 4 fault insertions for diagnostic learning
- Diagnostic Points: Electrical test points included on the trainer for circuit diagnosis
- Monitoring: Detection terminals to measure electric signals, resistance, voltage, current, and frequency
- Control: Central door locking and electric window switch operation for system demonstration
- Design Type: Power Window System Trainer with 4-door configuration for comprehensive training
Experiments
- Study of power window motor operation
- Study of master and slave switch function
- Study of central door locking system
- Measurement of electrical signals at test points
- Measurement of resistance, voltage, current, and frequency in circuit components
- Fault insertion and diagnostic troubleshooting
- Study of window control circuit operation
Construction and Design
The Power Window System Trainer Torquemaster-19 uses OEM components throughout, including four window motors and master and slave switches with OEM matching wire colours. The unit features organic glass with aluminum rims for window representation. A lockable system fault box with capacity for one to four faults is integrated for diagnostic training. Terminal block receptacles provide diagnostic test points for circuit measurement and analysis. Detection terminals allow measurement of electric signals, resistance, voltage, current, and frequency of circuit components. The central door locking system and electric window switches can be operated to demonstrate working processes. The trainer requires an external 12V DC power supply for operation.
Scope of Delivery
- Four-door power window system trainer
- 4 power window motors
- Master and slave window switches
- Central door locking system
- Lockable fault box with 4 faults
- Diagnostic test point terminal blocks
- Detection terminals for electrical measurements
- Organic glass windows with aluminum rims
- User manual
Required for Operation
- External 12V DC power supply
Q1: What does the Power Window System Trainer Torquemaster-19 demonstrate?
A: It demonstrates a complete power window system using real OEM components, including window motor operation, master and slave switch function, and central door locking.
Q2: How many faults can be inserted using the fault box?
A: The lockable system fault box allows instructors to insert from one to four faults for student diagnostic learning.
Q3: What measurements can be made at the detection terminals?
A: Electric signals, resistance, voltage, current, and frequency of circuit components can all be measured at the detection terminals.
Q4: What type of components are used in this trainer?
A: OEM components are used throughout, including window motors and switches with OEM matching wire colours.
Q5: What are the dimensions and weight of the trainer?
A: The approximate dimensions are 600 x 600 x 300 mm, with an approximate weight of 25 kg.
