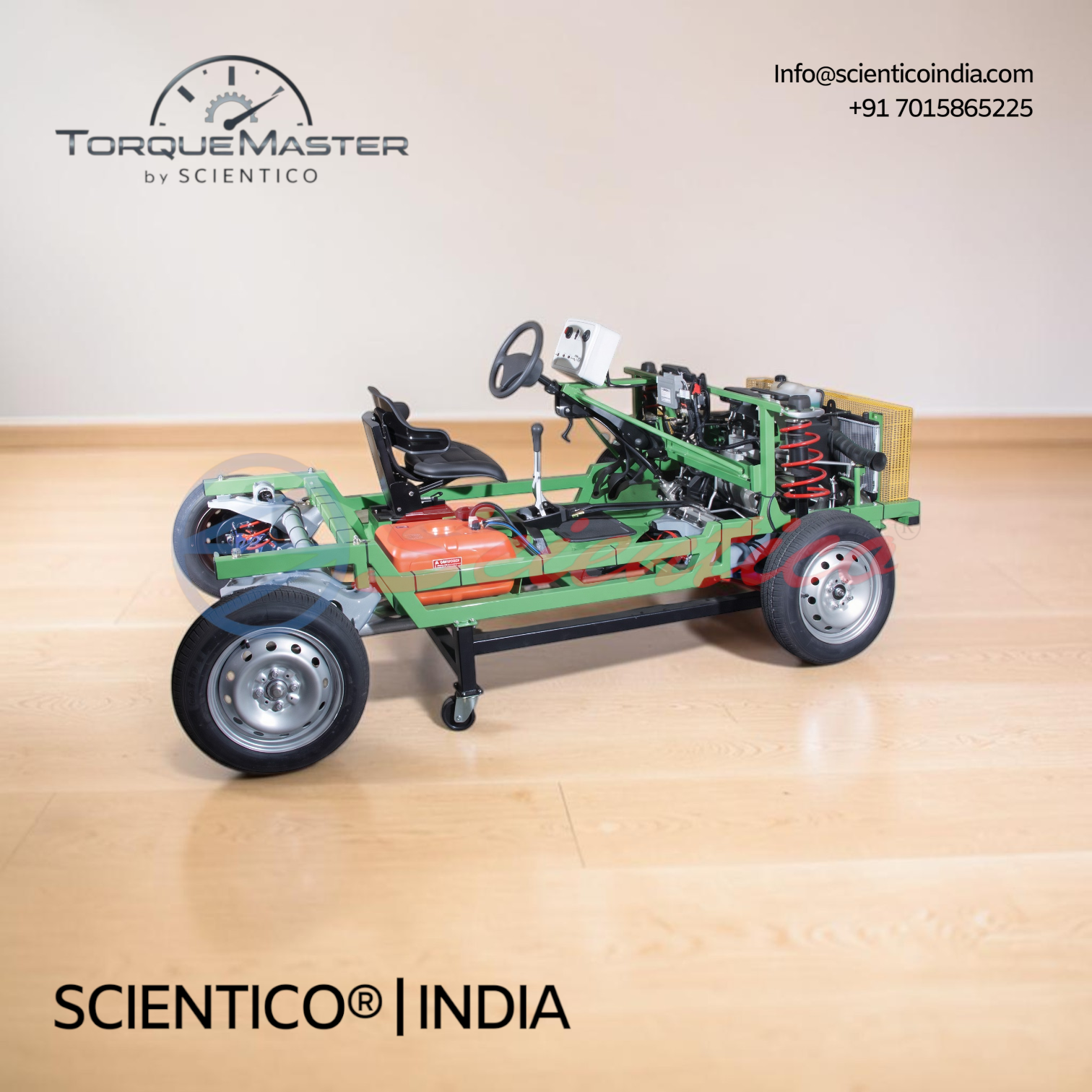

Fully Functional Cut Section Model Of Chassis Torquemaster-20 is built from a medium displacement vehicle with all mechanical systems completely functional and carefully assembled. This Fully Functional Cut Section Model Of Chassis features a 4 cylinder 1242 cc petrol engine with multipoint injection, 5-speed front wheel drive transmission, disc and drum braking system, McPherson and independent suspension, radiator with electric fan, and OBD diagnostic socket. Colour-coded components and electroplated hardware enable comprehensive systems training and assembly/disassembly practice.
The Fully Functional Cut Section Model Of Chassis Torquemaster-20 is realized from a medium displacement vehicle, particularly useful for the study of main components, repair operations, and diagnostics via the OBD socket. This Fully Functional Cut Section Model Of Chassis is mounted on a tubular frame with all mechanical parts carefully revised and assembled.
Product Overview
The Torquemaster-20 features engine, gearbox, clutch, brakes, lubricating circuit, cooling system, injection, ignition, suspensions, electric system, and exhaust that are completely functional. The chassis allows easy display and the possibility of assembly and disassembly of each part. The model is mounted on a tubular frame with imported colour painting and Miracle coating for extra gloss and shine. The painting uses different colours for different components to aid identification of sectioned areas and systems according to colour code. All hardware and gears are suitably electroplated. This Fully Functional Cut Section Model Of Chassis serves as a comprehensive training tool for understanding automotive systems integration and diagnostic procedures.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Fully Functional Cut Section Model Of Chassis Torquemaster-20 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | Torquemaster-20 |
| Vehicle Type | Medium displacement vehicle |
| Engine Type | 4 cylinder 4 stroke Petrol Engine |
| Displacement | 1242 cc |
| Injection | Multipoint electronic injection |
| Ignition | Electronic ignition |
| Gearbox | 5 forward gears and reverse |
| Drive Type | Front wheel drive |
| Exhaust | Catalytic silencer |
| Fuel System | Electric fuel pump |
| Braking | Depression servo-brake with front disc and rear drum brakes |
| Front Suspension | McPherson front suspension |
| Rear Suspension | Independent wheels with oscillating arms |
| Parking Brake | Hand brake |
| Fuel Tank | Included |
| Battery | Included |
| Cooling | Radiator with electric fan |
| Control Panel | Dashboard |
| Diagnostics | Diagnostic socket |
| Operation | Motorized |
| Equipment Layout | On stand with wheels |
| Finish | Fine finish with imported colour painting and Miracle coating |
| Length x Width x Height (approx.) | 3200 x 1400 x 1400 mm |
| Weight (approx.) | 380 kg |
Technical Data
Engine and Fuel System
| Component | Detail |
|---|---|
| Engine Configuration | 4 cylinder 4 stroke Petrol Engine |
| Displacement | 1242 cc |
| Fuel Injection | Multipoint electronic injection |
| Ignition System | Electronic ignition |
| Fuel Pump | Electric fuel pump |
| Tank | Included |
Drivetrain
| Component | Detail |
|---|---|
| Gearbox | 5 forward gears and reverse |
| Drive Type | Front wheel drive |
| Clutch | Fully functional |
Braking System
| Component | Detail |
|---|---|
| Main Brakes | Depression servo-brake system |
| Front Brakes | Disc brakes |
| Rear Brakes | Drum brakes |
| Parking Brake | Hand brake |
Suspension and Chassis
| Component | Detail |
|---|---|
| Front Suspension | McPherson front suspension |
| Rear Suspension | Independent wheels with oscillating arms |
| Frame | Tubular frame construction |
Cooling and Electrical
| Component | Detail |
|---|---|
| Cooling System | Radiator with electric fan |
| Electrical System | Battery and dashboard |
| Lubricating Circuit | Fully functional |
| Exhaust System | Catalytic silencer |
| Diagnostics | OBD diagnostic socket |
Key Features
- Operation: Motorized
- Layout: On stand with wheels
- Finish: Fine finish with imported colour painting and Miracle coating
- Handling: Simple operations
- Accuracy: Functional accuracy
- Design Type: Fully Functional Cut Section Model Of Chassis with complete engine, drivetrain, and suspension systems
- Colour Coding: Different colours for different components and sectioned areas for easy system identification
- Hardware: All hardware and gears suitably electroplated
Experiments
- Study of 4 cylinder 4 stroke petrol engine operation
- Study of multipoint electronic injection and electronic ignition systems
- Study of 5-speed gearbox with front wheel drive configuration
- Study of disc and drum brake systems with servo assistance
- Study of McPherson front suspension and independent rear suspension
- Study of radiator and electric fan cooling system
- Study of lubricating and fuel circuits
- Study of hand brake and parking system
- Assembly and disassembly of chassis components
- Diagnostic socket usage and OBD system operation
- Study of complete vehicle systems integration
Construction and Design
The Fully Functional Cut Section Model Of Chassis Torquemaster-20 is constructed from a medium displacement vehicle with all mechanical parts carefully revised and assembled on a chassis. The model is mounted on a tubular frame and finished with imported colour painting and Miracle coating for extra gloss and shine. Different colours are applied to different components and sectioned areas for identification according to colour code standards. All hardware and gears are suitably electroplated for durability. The engine is a 4 cylinder 4 stroke petrol unit with 1242 cc displacement, featuring multipoint electronic injection and electronic ignition. The drivetrain includes a 5-speed gearbox with reverse and front wheel drive. The braking system uses a depression servo-brake with disc brakes at the front and drum brakes at the rear, plus a hand brake. The front suspension uses McPherson struts, while the rear uses independent wheels with oscillating arms. A fully functional radiator with electric fan provides cooling, and a complete electrical system with battery and dashboard is included. The OBD diagnostic socket allows system diagnostics and training.
Scope of Delivery
- Fully functional cut section chassis from medium displacement vehicle
- 4 cylinder 4 stroke petrol engine assembly
- 5-speed gearbox with front wheel drive
- Complete braking system with disc and drum brakes
- McPherson front suspension and independent rear suspension
- Radiator with electric fan cooling system
- Battery and complete electrical system
- Diagnostic socket for OBD connectivity
- Tubular frame with stand and wheels
- Dashboard and control panel
Q1: What does the Fully Functional Cut Section Model Of Chassis Torquemaster-20 demonstrate?
A: It demonstrates the complete integration of all vehicle systems, including the engine, transmission, braking, suspension, cooling, electrical systems, and diagnostics, in a medium displacement vehicle.
Q2: Can individual components be assembled and disassembled on this model?
A: Yes, the chassis allows easy display and the possibility of assembling and disassembling each part for training and repair procedures.
Q3: What is the engine displacement and configuration?
A: The engine is a 4 cylinder 4 stroke petrol engine with a displacement of 1242 cc.
Q4: What diagnostic capabilities does this model have?
A: It includes a diagnostic socket that allows OBD system access for learning and troubleshooting.
Q5: What are the dimensions and weight of the model?
A: The approximate dimensions are 3200 x 1400 x 1400 mm, with an approximate weight of 380 kg.
