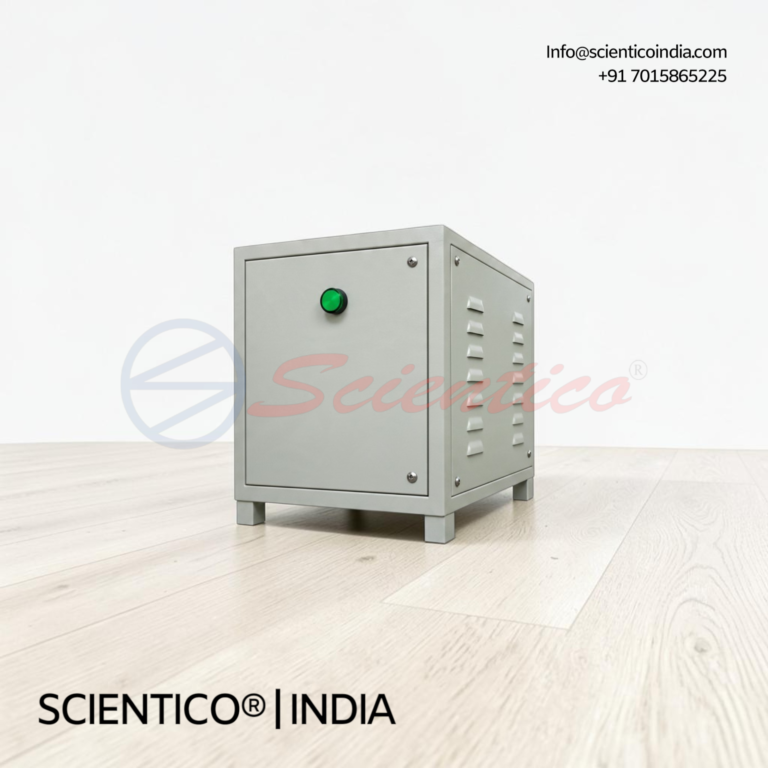

The Isolating Transformer, Three-Phase, Bench Mounted – SC-ITR 3050 provides galvanic isolation between mains and low-voltage outputs. Built from three isolated single-phase transformers, it is ideal for machines, rectifier experiments, control circuits and machine trainers.
Product Overview
The Isolating Transformer, Three-Phase, Bench Mounted – SC-ITR 3050 gives galvanic isolation between the mains (L1–L2–L3) and low-voltage secondary outputs. It is built from three isolated single-phase transformers, with the wiring diagram shown on the front panel. The primary accepts 3 x 400 V AC at 50/60 Hz. Each secondary offers four taps: 22 V, 110 V, 220 V and 244 V AC on 4 mm safety sockets. A star-point terminal group on 4 mm sockets allows single- and three-phase use from any tap. The unit delivers 500 VA per secondary, 1.5 kVA total, in continuous S1 duty. Primary protection includes a 6 A C-curve MCB. Secondary fuses are 2.5 A per phase. The enclosure is IP20 with a front panel schematic and tap arrangement printed for reference.
The Operational Amplifier and Amplifier Training Kit – SC-OPA 1103 is a circuit construction deck with 4 mm sockets for op-amp and power amplifier circuits. It includes a full component set on 4 mm male-ended carriers.
Product Overview
The Operational Amplifier and Amplifier Training Kit – SC-OPA 1103 features a gridded construction deck with 4 mm female sockets and a patch area for discrete parts, ICs, and power devices. Power supplies include ±15 V DC and 0–30 V variable, both short-circuit proof. The kit includes resistors, capacitors, potentiometers, coils, transistors, diodes, thyristors, triacs, and op-amp ICs. All components are mounted on 4 mm male-ended carriers and stored in a compartmented case with printed inventory and labelled carriers.

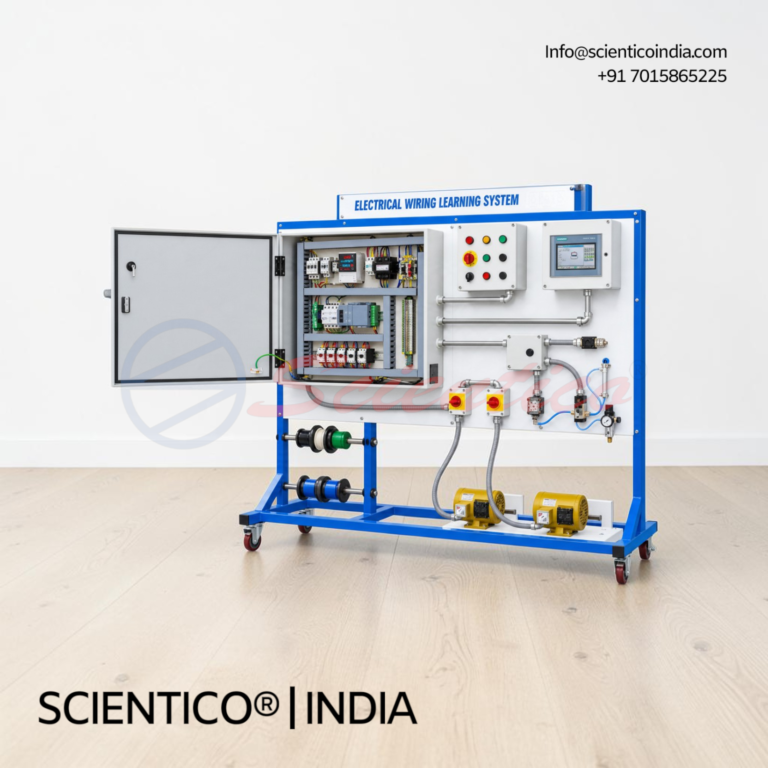

The Industrial and Domestic Electrical Wiring Wall Training Kit SC-EWW 1091 is a wall-mounted wiring trainer for hands-on electrical wiring practice. It covers both industrial and domestic wiring work in one kit.
Product Overview
The Industrial and Domestic Electrical Wiring Wall Training Kit SC-EWW 1091 is a wall-mounted wiring trainer built on a pre-drilled wooden panel. A storage cabinet with two shelves and a transparent sliding door holds the components. Insulated test sockets are mounted at the top of the unit. The kit is supplied with at least 2 pieces of every accessory and a full bill of quantities.

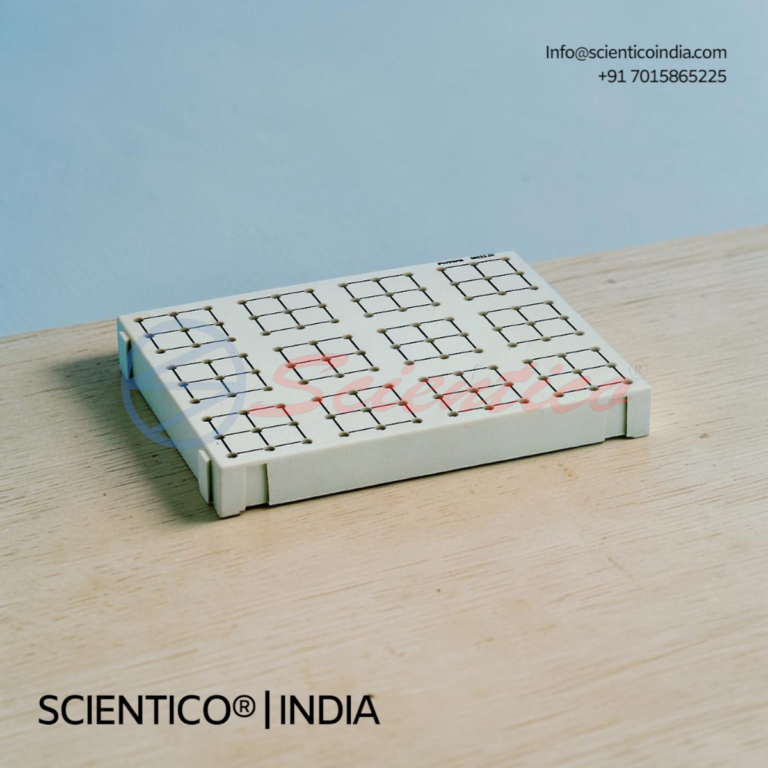

Gridded Plug-in Board SC-GPB 1085 is a gridded plug-in board for mounting and connecting 4 mm male-ended component carriers. The board provides 160 x 4 mm female sockets and 2 mm sockets per node on a 19 mm grid.
Product Overview
The Gridded Plug-in Board SC-GPB 1085 is a rigid panel with a printed layout. Interconnected node groups are printed on the panel to guide circuit construction. The board accepts the 4 mm male-ended component carriers of kit Item. It can be used bench standing or frame mounted, and supply rails are provided on the 4 mm sockets.
Electrical and Electronic Component Training Kit SC-EEK 1084 is a trainer box of 4 mm male-ended component carriers. The carriers plug directly into experimenter board Item 11085.
Product Overview
The Electrical and Electronic Component Training Kit SC-EEK 1084 includes switches, pushbuttons, lamps, LEDs, resistors, potentiometers, capacitors, semiconductors, and coils. Each carrier shows the circuit symbol and value. The kit includes a compartmented case with printed inventory.
Air Suspension Trainer SC-ASS 3015 is a hybrid PC-based and physical trainer for bus and truck air-suspension behaviour. All functional components used in the exercises are real, operating parts on a mobile steel frame.
Product Overview
The Air Suspension Trainer SC-ASS 3015 simulates bus and truck air-suspension behaviour. It combines PC simulation with a physical trainer. Students work with real components, including air springs, valves, sensors, and a compressor. The unit supports ride-height, leak, valve, compressor, and sensor fault exercises.
The Diesel Engine Training Stand SC-DET 6025 is a fully functional 6-cylinder turbocharged common-rail diesel engine for demonstration and practical diagnosis. This diesel engine training stand includes a visible ECU, OBD-II access, and 12 switchable sensor and actuator faults.
Product Overview
The SC-DET 6025 diesel engine training stand uses a 6-cylinder in-line engine with 2.5 to 3.0 litre displacement, turbocharging, and Euro 4 emissions. It runs on diesel fuel available in Jordan. Common-rail injection, liquid cooling, and an oil sump with filter are fully functional. Air filter, intercooler, catalytic converter, and silencer are fitted. The outlet is prepared for workshop extraction through a 100 mm hose connection at approximately 600 m³/h. Sensors include MAP, MAF, ECT, CKP, CMP, IAT, O2, and knock. Actuators include injectors, throttle body, turbo actuator, and EGR valve. Twelve independently switchable faults support diagnostic training. The unit is CE compliant.
The Portable High-Voltage Safety Tester SC-HVT 2000 is a training instrument for checking hybrid and electric vehicle HV systems. It verifies absence of voltage, insulation resistance, and equipotential bonding without a vehicle. This portable high-voltage safety tester uses an HV demonstrator in the training case.
Product Overview
The SC-HVT 2000 portable high-voltage safety tester measures DC voltage from -1,000 V to +1,000 V and insulation resistance up to 1 GΩ. Insulation test voltage is selectable from 250 to 1,000 V DC in 16 steps. Equipotential bonding is measured with a four-wire method to UNECE R100, at test currents of 100 to 1,000 mA. Resistance ranges from 0 Ω to 10 MΩ, and a diode test provides polarity indication. Capacitance measurement is included. Menu-guided measurements are documented continuously, with values shown on a connected PC and test reports generated. The instrument is USB powered and supplied calibrated with a certificate.
The Sectioned Automatic Gearbox SC-AGS 3011 is a cut-away automatic gearbox for classroom demonstration and instruction. This sectioned automatic gearbox is mounted on a mobile stand, with all main assemblies opened so the class can follow the converter, clutches, and planetary sets.
Product Overview
The SC-AGS 3011 sectioned automatic gearbox opens the housing, torque converter, converter lock-up clutch, oil pump, all clutches, all three planetary gear sets, and the hydraulic unit. Demonstrable functions include the converter, lock-up clutch, freewheels, oil pump, parking lock, clutches and planetary sets, and solenoid valves with the hydraulic unit. Cut surfaces are machined, deburred, painted in contrasting colours, and corrosion protected. The gearbox sits on a mobile stand with lockable castors and measures approximately 1,200 x 600 x 1,000 mm (W x D x H).
The Wheel Alignment Training Stand SC-WAS 3010 is an open training stand for demonstrating suspension geometry and practising wheel alignment. This wheel alignment training stand supports 3D aligners, CCD aligners, and mechanical methods, with measurement possible from all sides.
Product Overview
The SC-WAS 3010 wheel alignment training stand has an open construction that allows measurement from all sides without a lifting platform. Front suspension camber, SAI, and caster adjust through shock absorber position, eccentric bolts, and wheel position on the lower arm. Toe-in and toe-out adjust by tie rod. The rear multi-link suspension has three adjustment points for toe, camber, and wheelbase. Adjustment ranges cover camber ±3°, caster 0° to +8°, SAI 8° to 16°, and toe ±5 mm per wheel. Resolution is 0.05° and 0.5 mm. Measurable parameters include wheelbase, SAI, ride height, shear angle, turning radius, track width, and setback. The stand measures approximately 120 x 340 x 180 cm extended and weighs about 200 kg.
The High-Voltage Electric Vehicle Safety Interactive Course SC-HVS 2207 is a PC-based course for safe handling of high-voltage electric vehicles and charging systems. It includes course software, animations, an HV safety experiment unit, Class 0 safety gloves, and a Class 0 insulating mat.
Product Overview
The SC-HVS 2207 high-voltage electric vehicle safety course covers HV safety fundamentals, repair-shop job orders, and diagnostic functions. Students carry out measurement-based investigation and practical switchable fault exercises. The trainer operates only at safe extra-low voltage, 30 V DC and 12 V AC (SELV), so no live high voltage is present. The experiment unit demonstrates human-body resistance and electrical safety principles, with an earth-potential reference and resistance-measurement sockets. Class 0 gloves rated to 1,000 V AC are supplied with leather over-gloves in sizes 9 and 10. The insulating mat is IEC 61111 Class 0, 1000 x 1000 x 3 mm.
The Modern Common Rail Diesel Injection Interactive Course SC-CRD 2206 is a PC-based course on common rail diesel injection, pressures, procedures, and quantities. It includes course software, animations, and an experiment unit for common rail diesel injection.
Product Overview
The SC-CRD 2206 common rail diesel injection course covers diesel injection requirements and designs, common rail design and operation, and troubleshooting. It also covers injection response of solenoid and piezo injectors, low- and high-pressure circuits, electrical testing of injectors, and hydraulic components. Eight simulated faults support diagnostic and troubleshooting training. Experiments use virtual instruments on the interactive training interface SC-IPT 4016 or any functionally equivalent system.
Review the product information, specifications and model before requesting a quotation.
