Bifilar and Trifilar Apparatus | Vibrano X – 05

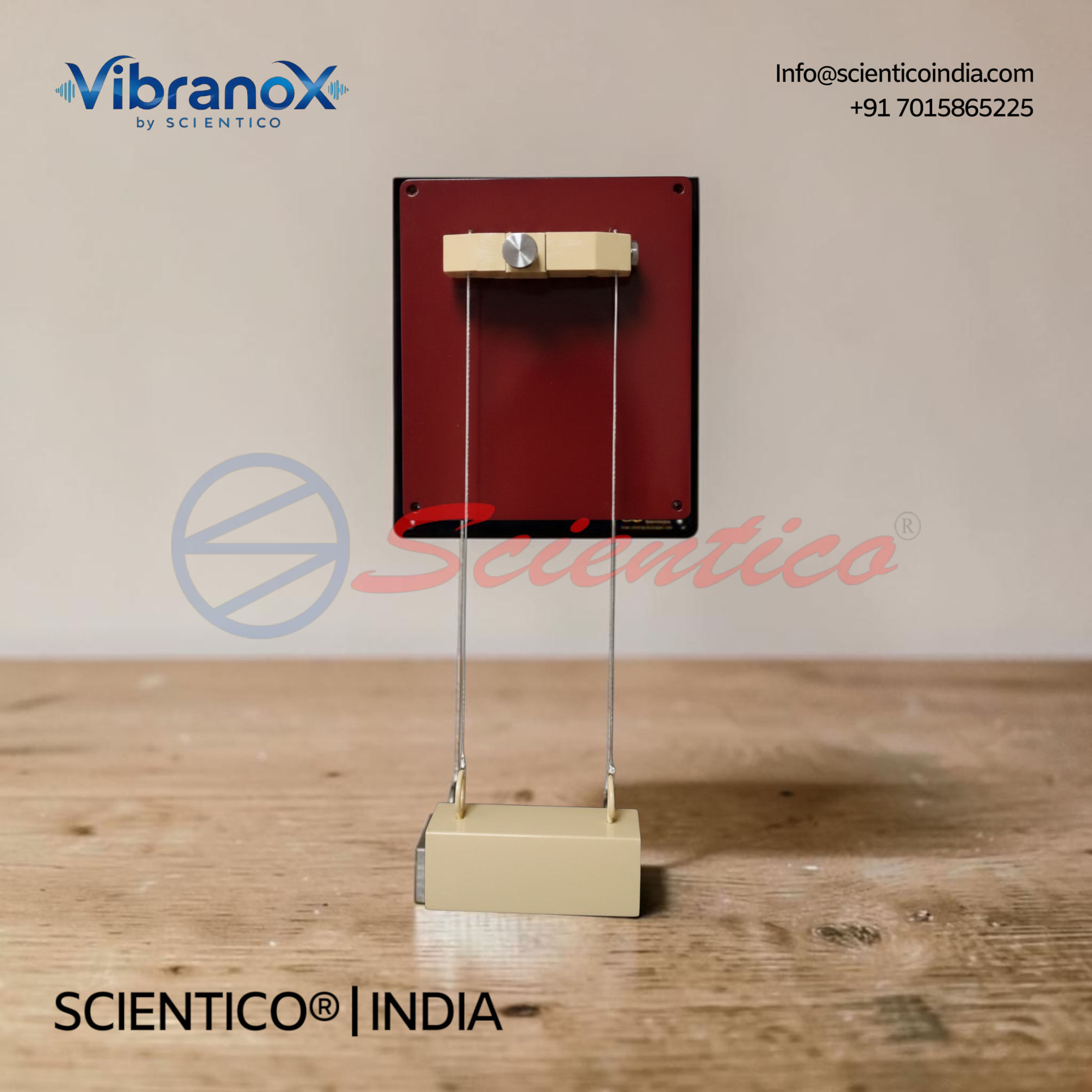

The Bifilar and Trifilar Apparatus – Vibrano X – 05 studies oscillations on pendulums with bifilar and trifilar suspension. It uses a rectangle bar, disk cylinder, and hollow disk cylinder, all made of stainless steel, suspended from a wall mounted plate. This Bifilar and Trifilar Apparatus features quick-action clamping for suspension cords up to 2000mm in length. The beam functions as a mathematical pendulum, while the cylinder and ring work as rotary pendulums.
The Bifilar and Trifilar Apparatus – Vibrano X – 05 allows the user to study oscillations on pendulums with bifilar and trifilar suspension. A rectangle bar, disk cylinder, or hollow disk cylinder made of stainless steel can be hung from a wall mounted plate and placed in oscillation. This Bifilar and Trifilar Apparatus supports both rotary and translational pendulum experiments.
Product Overview
This apparatus allows the user to study the oscillations on pendulums with bifilar and trifilar suspension. For this purpose, a rectangle bar, a disk cylinder, or a hollow disk cylinder made of stainless steel can be hung from a wall mounted plate and placed in oscillation.
The bodies used in the experiments have strong steel hooks for attachment to the suspension cords. The length of the cords can be rapidly changed and securely fixed using clamping screws. The beam can oscillate by translation in the plane of suspension, like an ideal mathematical pendulum. The cylinder and the circular ring work as rotary pendulums.
This Bifilar and Trifilar Apparatus enables rotary and pendulum oscillation experiments with 3 different bodies on bifilar or trifilar pendulums. Suspension cord length of up to 2000mm is possible.
Bifilar and Trifilar Apparatus – Vibrano X – 05 — Technical Specifications
| Specification | Detail |
|---|---|
| Application | Rotary and pendulum oscillation experiments with 3 different bodies on bifilar / trifilar pendulums |
| Suspension Clamp | Quick-action clamp for the suspension cords |
| Bar Material | Stainless Steel |
| Disk Cylinder Material | Stainless Steel |
| Hollow Disk Cylinder Material | Stainless Steel |
| Suspension Cord Length | Up to 2000mm possible |
Technical Data
Disk Cylinder
| Parameter | Value |
|---|---|
| D x h | 160 x 19mm |
| Mass | 3kg |
Hollow Disk Cylinder
| Parameter | Value |
|---|---|
| Outer diameter | 160mm |
| Inner diameter | 100mm |
| Height | 41mm |
| Mass | 4kg |
Key Features
- Core Function: this Bifilar and Trifilar Apparatus studies oscillations on pendulums with bifilar and trifilar suspension
- Test Bodies: rectangle bar, disk cylinder, hollow disk cylinder, all made of stainless steel
- Attachment: strong steel hooks on bodies for suspension cord connection
- Cord Adjustment: quick-action clamping screws for rapid length change
- Suspension Cord Length: up to 2000mm possible
- Oscillation Modes: beam oscillates by translation like an ideal mathematical pendulum; cylinder and ring act as rotary pendulums
- Mounting: wall mounted plate
- Disk Cylinder: D x h 160 x 19mm, mass 3kg
- Hollow Disk Cylinder: outer diameter 160mm, inner diameter 100mm, height 41mm, mass 4kg
- Experiment Range: 3 different bodies on bifilar / trifilar pendulums
Experiments
- Oscillation experiments on a mathematical pendulum
- Determination of the center of inertia of a beam, a disk cylinder, and a hollow disk cylinder in a rotary pendulum experiment
Construction and Design
The Bifilar and Trifilar Apparatus – Vibrano X – 05 is built around a wall mounted plate from which test bodies are suspended. The bodies, a rectangle bar, a disk cylinder, and a hollow disk cylinder, are all made of stainless steel. Each body has strong steel hooks for attachment to the suspension cords. The suspension cords can be rapidly changed in length and securely fixed using clamping screws. The beam oscillates by translation in the plane of suspension, functioning like an ideal mathematical pendulum. The cylinder and the circular ring function as rotary pendulums. This Bifilar and Trifilar Apparatus supports suspension cord lengths of up to 2000mm.
Scope of Delivery
- 1 Experimental module
- 1 Bar pendulum
- 1 Disc pendulum
- 1 Ring pendulum
- 1 Thread
- 1 Measuring scale
- 1 Stopwatch
- 1 Instruction manual
Q: What does the Bifilar and Trifilar Apparatus – Vibrano X – 05 study?
A: It studies oscillations on pendulums with bifilar and trifilar suspension, using a bar, disk cylinder, and hollow disk cylinder.
Q: What material are the test bodies made of?
A: The rectangle bar, disk cylinder, and hollow disk cylinder are all made of stainless steel.
Q: What is the maximum suspension cord length?
A: Suspension cord length of up to 2000mm is possible.
Q: How do the different bodies oscillate?
A: The beam oscillates by translation like an ideal mathematical pendulum, while the cylinder and circular ring work as rotary pendulums.
Q: What is included in the scope of delivery?
A: The delivery includes 1 experimental module, 1 bar pendulum, 1 disc pendulum, 1 ring pendulum, 1 thread, 1 measuring scale, 1 stopwatch, and 1 instruction manual.
