Vibration of Spiral Spring Apparatus | Vibrano X – 03
The Vibration of Spiral Spring Apparatus – Vibrano X – 03 studies the vibration behavior of a spiral spring rotating mass system. It features a cold rolled steel spiral spring with stiffness of c = 238Nmm approximately, clamped between a ball bearing mounted shaft and a fixed bracket. This Vibration of Spiral Spring Apparatus uses two adjustable sliding weights on diametrically opposite levers to vary moment of inertia. Rotation angle is read on a 0…360° scale disc with 1° resolution. The unit is wall mounted and includes a stopwatch for timing measurements.
The Vibration of Spiral Spring Apparatus – Vibrano X – 03 is designed to study the vibration behavior of a spiral spring rotating mass system. A spiral spring made of cold rolled steel is clamped between a ball bearing mounted shaft and a fixed bracket. This Vibration of Spiral Spring Apparatus is intended for wall mounting and enables determination of spring stiffness and natural frequency.
Product Overview

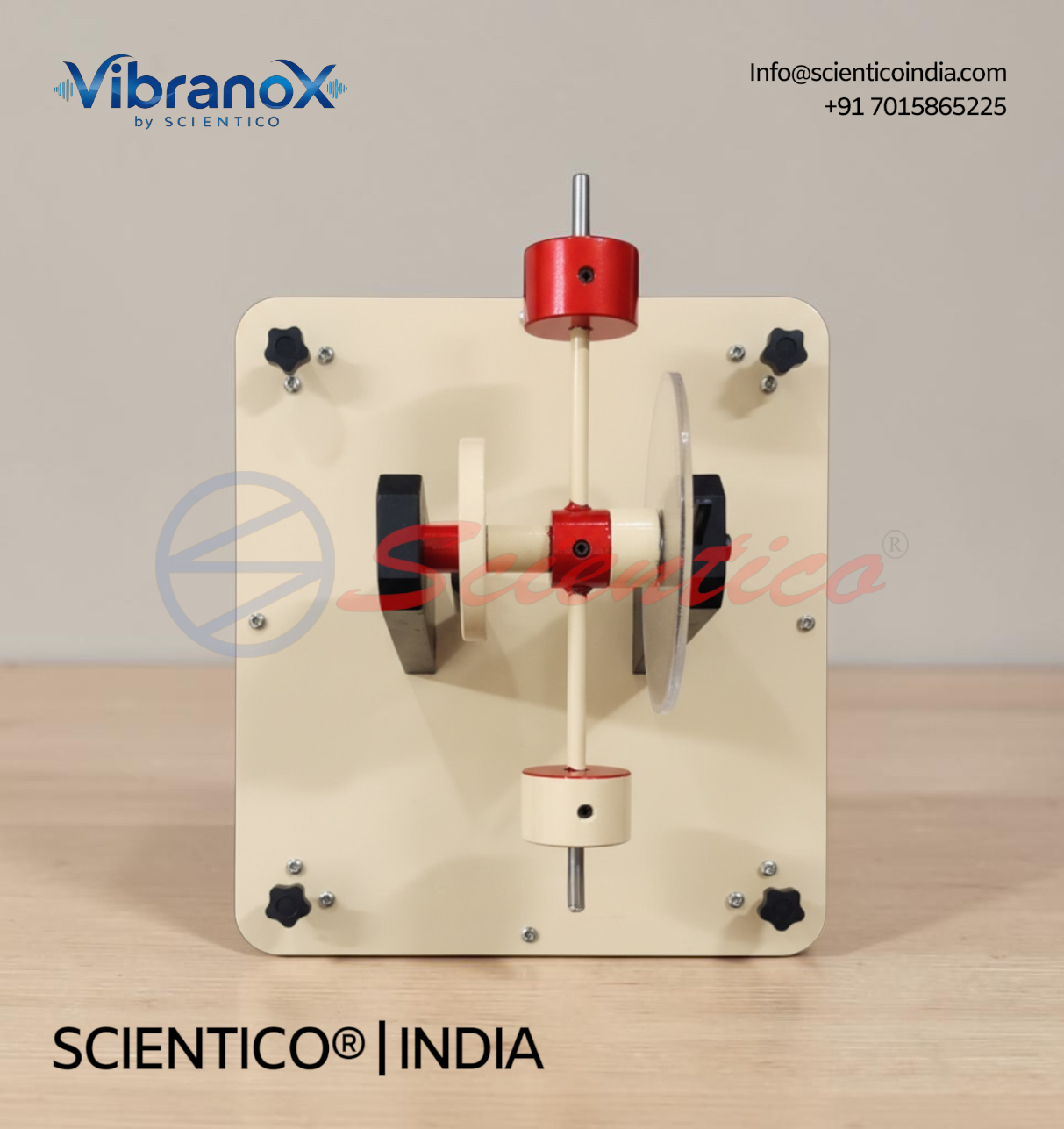

A spiral spring made of cold rolled steel is clamped between a ball bearing mounted shaft and a fixed bracket. Two levers are fitted to the shaft diametrically opposite each other. Two sliding weights of metal on the levers can be securely fixed in position using clamping screws. These form the rotating mass with an adjustable moment of inertia.
The system is displaced by hand. The angle of rotation is read off on a 1° scale disc that is also attached to the shaft. The unit is intended for wall mounting.
This Vibration of Spiral Spring Apparatus determines the periodic time for a spiral spring attached to a shaft of vibration moment of inertia. It features an effective torque of 30mm. A stop watch is included, along with all necessary accessories with list and instruction language.
Vibration of Spiral Spring Apparatus – Vibrano X – 03, Technical Specifications
| Specification | Detail |
|---|---|
| Function | Determines the periodic time for a spiral spring attached to a shaft of vibration moment of inertia |
| Effective Torque | 30mm |
| Timing | Stop watch |
| Accessories | All necessary accessories with list |
| Instruction | Instruction language |
| Mounting | Wall mounting |
| Internal Reference Code | Vibrano X – 03 |
Technical Data
Spiral Spring
| Parameter | Value |
|---|---|
| Stiffness | c = 238Nmm approximately |
| Cross-section | 10x1mm |
| Effective length | approx. 800mm |
| Inside radius | 10mm |
| Outside radius | 50mm |
Weights (Made of Stainless Steel)
| Parameter | Value |
|---|---|
| Mass | 0.5kg |
| Diameter | 50mm |
Levers (Made of Stainless Steel)
| Parameter | Value |
|---|---|
| Diameter | 8mm |
| Length | 154mm |
Measurement
| Parameter | Value |
|---|---|
| Arm radius of the rotating mass | 36…150mm |
| Angle measuring scale | 0…360° |
| Resolution | 1° |
Key Features
- Core Function: this Vibration of Spiral Spring Apparatus determines spring stiffness and natural frequency of a rotating mass system
- Spring Material: cold rolled steel
- Spring Stiffness: c = 238Nmm approximately
- Spring Cross-section: 10x1mm
- Spring Effective Length: approx. 800mm
- Spring Radii: inside 10mm, outside 50mm
- Shaft Mounting: ball bearing mounted shaft, clamped to fixed bracket
- Levers: stainless steel, diameter 8mm, length 154mm, fitted diametrically opposite
- Sliding Weights: stainless steel, mass 0.5kg, diameter 50mm, secured with clamping screws
- Moment of Inertia: adjustable via sliding weight position
- Arm Radius: 36…150mm
- Angle Scale: 0…360°, 1° resolution
- Effective Torque: 30mm
- Mounting Type: wall mounting
- Timing: stop watch included
Experiments
- Determination of the stiffness of a spiral spring
- Determination of the natural frequency of a spiral spring-rotating mass system, with varying total vibrating mass
- Determination of the natural frequency of a spiral spring-rotating mass system, with varying mass distribution
Construction and Design
The Vibration of Spiral Spring Apparatus – Vibrano X – 03 is built around a spiral spring made of cold rolled steel. The spring is clamped between a ball bearing mounted shaft and a fixed bracket. Two levers are fitted to the shaft, positioned diametrically opposite each other. Two sliding weights made of metal are mounted on the levers. These weights can be securely fixed in position using clamping screws, forming a rotating mass with adjustable moment of inertia. The system is displaced by hand to initiate vibration. The angle of rotation is read off a 1° scale disc attached to the shaft. This Vibration of Spiral Spring Apparatus is designed for wall mounting.
Scope of Delivery
- 1 Experimental module
- 1 Set of weight
- 1 Stopwatch
- 1 Instruction manual
Q: What does the Vibration of Spiral Spring Apparatus – Vibrano X – 03 measure?
A: It measures the stiffness of a spiral spring and the natural frequency of a spiral spring-rotating mass system.
Q: What material is the spiral spring made of?
A: The spiral spring is made of cold rolled steel.
Q: How is the angle of rotation measured?
A: The angle of rotation is read off a 1° scale disc attached to the shaft, with a measuring range of 0…360°.
Q: How is the moment of inertia adjusted?
A: The moment of inertia is adjusted by sliding the metal weights on the levers and securing them with clamping screws at different arm radii, ranging from 36 to 150mm.
Q: How is this unit installed?
A: The unit is intended for wall mounting.
