Fundamentals of Sedimentation | FluidoSurge-X 244
A CE-certified precision laboratory apparatus for engineering experimentation and technical education, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.
The Fundamentals of Sedimentation FluidoSurge-X 244 is a laboratory apparatus designed to study and compare sedimentation processes in suspensions. Manufactured by SCIENTICO, the unit enables observation and measurement of settling behavior of solid particles in liquids. It is intended for instructional experiments in fluid mechanics, environmental engineering, and process engineering laboratories. The system supports clear visual analysis through transparent tanks and backlighting.
Product Overview

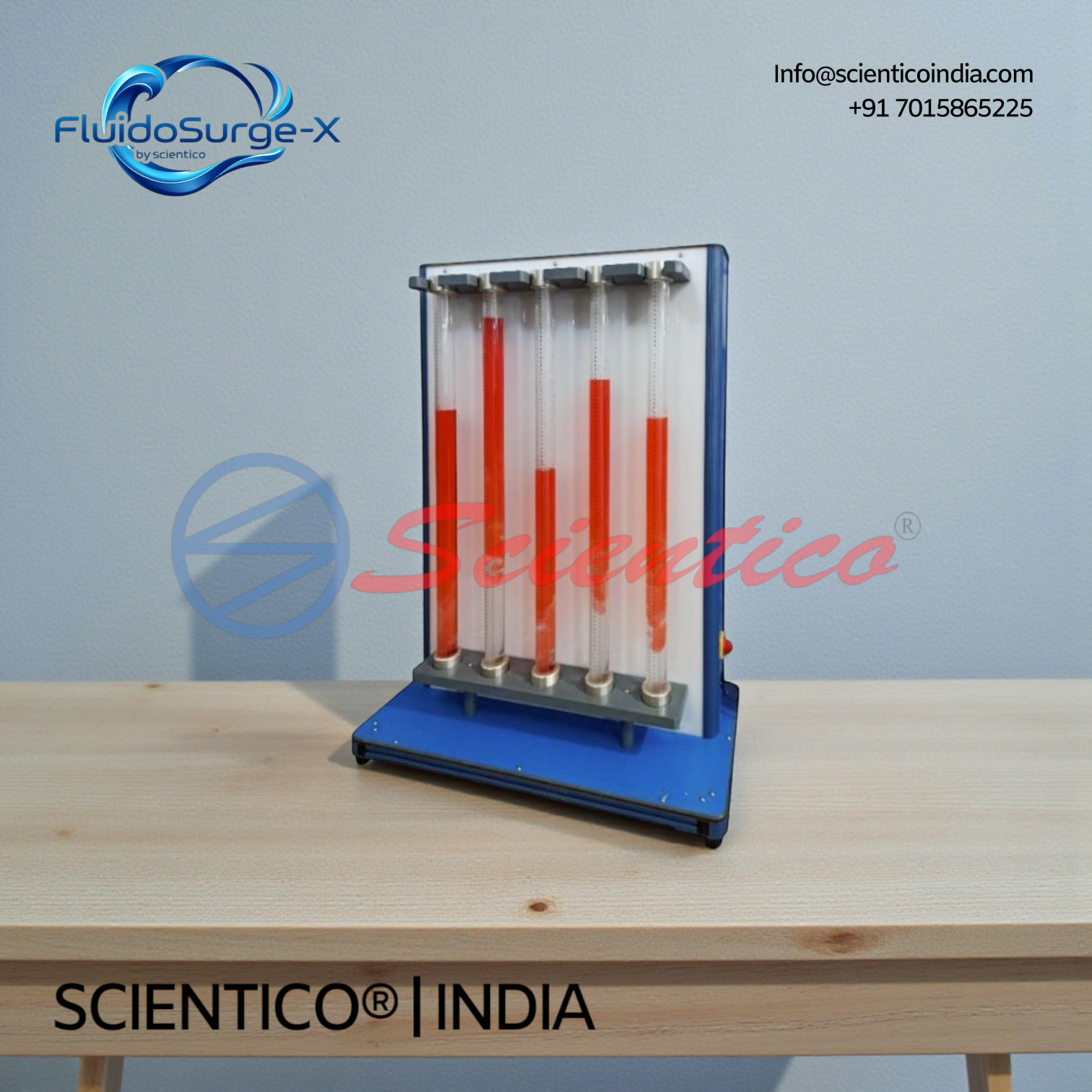

FluidoSurge-X 244 consists of five transparent cylindrical tanks mounted vertically on a rigid experimental frame. Suspensions are prepared separately in measuring beakers and transferred to the tanks for testing. The tanks are removable to allow easy filling, mixing, and cleaning. Backlighting using fluorescent tubes or LEDs enhances visibility of the sedimentation interface, enabling accurate comparison of settling velocities under different conditions.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ, Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Apparatus Type | Sedimentation study unit |
| Number of Tanks | 5 |
| Tank Material | Plexiglas |
| Tank Length | 1000 mm |
| Tank Inside Diameter | 42 mm |
| Scale Division | 1 mm |
| Tank Mounting | Vertical |
| Illumination | Fluorescent tubes / LED |
| Power Consumption | < 100 W |
| Measuring Beakers | 3 units |
| Measuring Beaker Capacity | 5000 mL |
| Measuring Beaker Scale Division | 100 mL |
| Stopwatch Resolution | 1/100 s |
Key Features
-
Designed for fundamental sedimentation experiments
-
Five transparent tanks for simultaneous comparison
-
Tanks removable for easy preparation and cleaning
-
Integrated backlighting for clear observation of settling behavior
-
Suitable for studying different suspensions and concentrations
-
Simple and repeatable experimental setup for teaching use
Applications
-
Fluid mechanics laboratory experiments
-
Environmental engineering studies
-
Study of solid-liquid separation processes
-
Comparison of settling velocities in suspensions
-
Demonstration of sedimentation principles in teaching laboratories
Construction & Design Details
The apparatus features five vertical Plexiglas tanks mounted on a stable support structure. Each tank includes a graduated scale for direct measurement of sedimentation height over time. The backlighting system improves visibility of the settling interface. Measuring beakers are used to prepare suspensions prior to testing, ensuring consistent and repeatable experimental conditions.
Experiments
-
Determination and comparison of settling velocities of solids in suspensions
-
Study of the influence of solid density and concentration
-
Investigation of the effect of liquid density and viscosity
-
Examination of the influence of coagulants on settling velocity
Recommended Accessories (Optional)
-
Pycnometer for density determination of liquids and solids
-
Balance for mass measurement
-
Coagulants for sedimentation studies
Standard Scope of Delivery
-
1 experimental module
-
3 measuring beakers
-
1 stopwatch
-
1 power cord
-
1 instruction manual
Export & Supply Capability
SCIENTICO manufactures the Fundamentals of Sedimentation FluidoSurge-X 244 for engineering colleges, technical universities, and research laboratories. The equipment is suitable for domestic and international supply. Export packing and documentation are provided according to customer and destination requirements.
Q1. What is the purpose of FluidoSurge-X 244?
It is used to study and compare sedimentation behavior of solids in liquid suspensions.
Q2. How many sedimentation tanks are provided?
Five transparent tanks are provided for simultaneous experiments.
Q3. Can the tanks be removed for cleaning?
Yes. All tanks are removable for filling, mixing, and cleaning.
Q4. How is sedimentation observed clearly?
The tanks are backlit using fluorescent tubes or LEDs to enhance visibility.
Q5. Are coagulants supplied with the apparatus?
No. Coagulants are recommended as optional accessories.
