Fluid Properties & Hydrostatics Bench | FluidoSurge-X 212
A CE-certified precision laboratory apparatus for engineering experimentation and technical education, manufactured by Scientico India to ISO 9001:2015 standards. Supplied with calibration certificate, operation manual, and complete export documentation. Designed for Fluid Mechanics laboratories in engineering colleges and technical institutions.

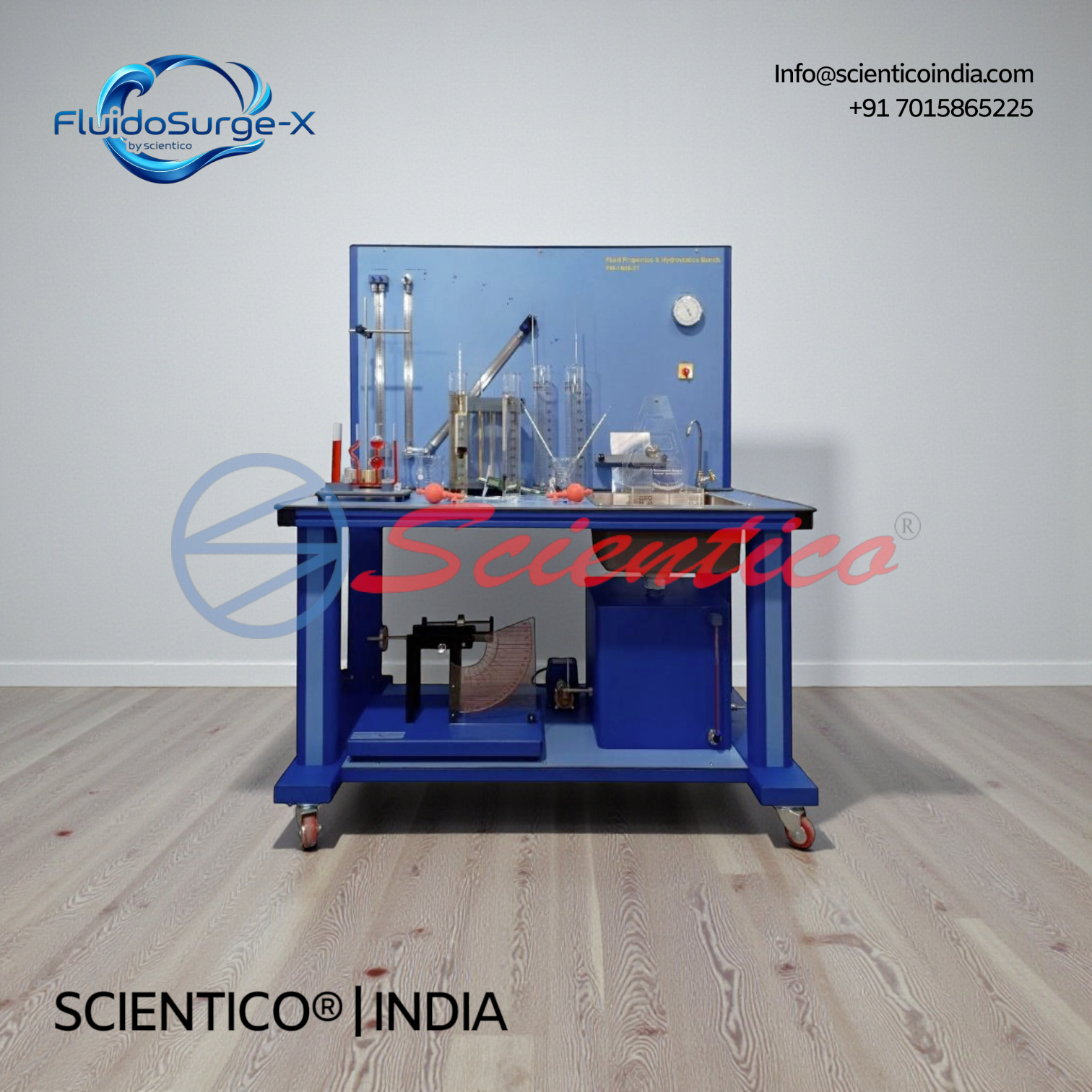

The FluidoSurge-X 212 is a self-contained, mobile hydrostatics bench designed for comprehensive experimental study of fluid properties and hydrostatics. It consolidates all required apparatus on a single unit, independent of laboratory services. The bench supports investigation of Newtonian fluid behaviour, covering density, viscosity, pressure, buoyancy, surface tension, and hydrostatic pressure principles.
Product Overview
The FluidoSurge-X 212 Fluid Properties & Hydrostatics Bench is a fully self-contained and mobile experimental platform requiring no external laboratory services. It includes a complete set of ancillary instruments — precision balance, laboratory weights, and stopwatch. The bench houses instruments for measurement of density, specific gravity, viscosity, pressure, and humidity, along with dedicated apparatus for hydrostatic pressure, metacentric height, Pascal’s Law, capillary effects, and surface tension. All apparatus is integrated for immediate use within a cohesive experimental workflow.
Request Specifications & Pricing
CE-certified, ISO 9001:2015 compliant. Supplied to universities and institutions in 60+ countries.
WhatsApp: +91 701-586-5225 | Email: [email protected]
View Quality Certifications | FAQ — Shipping, Warranty, Lead Time
| Parameter | Specification |
|---|---|
| Water Manometer Range | 0 to 500 mm |
| Water Manometer Slope (Adjustable) | 10% to 100% |
| Mercury Manometer Range | 0 to 500 mm |
| Bourdon Gauge Range | 0 to 4 kg/cm² |
| Aneroid Barometer Range | 954 to 1073 mbar |
| Hygrometer Range | 10 to 100% RH |
| Thermometer Range | -10 to 110°C and 0 to 300°C |
| Hydrometer Range | 0.7 to 2.0 (in multiple ranges) |
| Specific Gravity Bottle Capacity | 0 to 25 ml |
| Beakers, Containers and Pipette | 2 units each |
| Capillary Viscometer Range | 2 to 10 cSt |
| Falling Sphere Viscometer Range | 10 to 850 St |
| Circulation Pump Flow Rate | 10 LPM @ 2 m head |
| Triple Beam Balance Range | 0 to 2610 g |
| Triple Beam Balance Accuracy | ±0.1 g |
| Vernier Hook Gauge Range | 0 to 150 mm |
| Vernier Hook Gauge Accuracy | ±0.05 mm |
| Capillary Tubes | 3 to 5 units |
| Storage Tank Capacity | 100 L |
| Dead Weight Pressure Tester | Included |
| Hydrostatic Pressure Apparatus | Included |
| Metacentric Height Apparatus | Included |
| Archimedes’ Apparatus | Included |
| Pascal’s Apparatus | Included |
| Capillary Attraction Plates | Included |
Technical Data
Dead Weight Gauge Calibrator
| Parameter | Value |
|---|---|
| Diameter | 6″ or 150 mm |
| Bourdon Tube Pressure Range | 0 to 4 bar |
| Least Count | 0.1 bar / 1 PSI |
| Scale | PSI / bar |
Hydrostatic Pressure Apparatus
| Parameter | Value |
|---|---|
| Water Tank Content | 1.8 L |
| Water Tank Inclination Angle | 0 to 90° |
| Water Tank Scale | 0 to 250 mm |
| Lever Arm Maximum Length | 0 to 250 mm |
| Balancing Weight | 250 g |
| Sliding Weight | 250 g |
Metacentric Height Apparatus
| Parameter | Value |
|---|---|
| Water Tank Material | Molded plastic |
| Water Tank Dimensions | nominally 600 mm x 400 mm x 120 mm |
| Floating Pontoon Dimensions | 360 mm x 203 mm x 76 mm |
| Angular Tilt of Pontoon | nominally 15° each side of vertical center line |
| Working Height of Sail | 240 mm |
| Adjustable Sail Weight | 525 g (approx.) |
Pascal’s Apparatus
| Parameter | Value |
|---|---|
| Parallel Vessel Inside Diameter | 26 mm |
| Conical Vessel Inside Diameter | 26 to 101 mm (at top) |
| Tapered Vessel Inside Diameter | 26 mm to 9 mm (at top) |
| Diameter at Diaphragm | 56 mm |
| Maximum Depth of Water | 228 mm (to top of vessels) |
Key Features
- Self-contained and mobile bench — independent of all laboratory services
- Comprehensive apparatus suite covering fluid properties and hydrostatics in a single unit
- Water manometer with adjustable slope: 10% to 100%, range 0 to 500 mm
- Mercury manometer range: 0 to 500 mm
- Bourdon gauge: 0 to 4 kg/cm²; dead weight pressure tester included for calibration
- Aneroid barometer: 954 to 1073 mbar; hygrometer: 10 to 100% RH
- Dual thermometer ranges: -10 to 110°C and 0 to 300°C
- Hydrometer covering multiple ranges: 0.7 to 2.0
- Capillary viscometer: 2 to 10 cSt; falling sphere viscometer: 10 to 850 St
- Triple beam balance: 0 to 2610 g, ±0.1 g accuracy
- Vernier hook gauge: 0 to 150 mm, ±0.05 mm accuracy
- Circulation pump: 10 LPM at 2 m head; storage tank: 100 L
- Dedicated apparatus for hydrostatic pressure, metacentric height, Archimedes, Pascal’s Law, capillary attraction, and surface tension
- Hydrostatic pressure water tank: 1.8 L, inclination 0 to 90°, scale 0 to 250 mm
- Metacentric height pontoon: 360 mm x 203 mm x 76 mm with ±15° angular tilt
- Pascal’s apparatus with three vessel profiles and diaphragm diameter of 56 mm
Experiments
- Measurements of density, specific gravity, viscosity, pressure and humidity
- Function and use of a hydrometer
- Function and use of a hygrometer
- Demonstration of fluid upthrust (Pascal’s Law)
- Determination of center of pressure (Hydrostatic Pressure) and metacentric height
- Calibration of pressure gauge using dead weight
- Familiarization with various items of pressure measuring equipment
- Determination of the buoyancy of various bodies
- Investigations on the density of liquids
- Determination of surface tension
- Demonstration of capillary effects
Construction and Design
The FluidoSurge-X 212 is built as a mobile, self-contained bench unit integrating all experimental apparatus within a single structure requiring no external laboratory services. The bench houses a 100 L storage tank and a circulation pump rated at 10 LPM at 2 m head. The metacentric height apparatus uses a molded plastic water tank nominally measuring 600 mm x 400 mm x 120 mm, paired with a floating pontoon of 360 mm x 203 mm x 76 mm providing up to 15° angular tilt on either side of the vertical center line. The hydrostatic pressure apparatus includes a 1.8 L water tank adjustable from 0 to 90° inclination with a 0 to 250 mm scale, and a lever arm adjustable from 0 to 250 mm with two 250 g weights. Pascal’s apparatus incorporates three distinct vessel profiles — parallel (26 mm ID), conical (26 to 101 mm ID at top), and tapered (26 mm to 9 mm ID at top) — with a diaphragm diameter of 56 mm and maximum water depth of 228 mm. The bench includes 3 to 5 capillary tubes, capillary attraction plates, and a vernier hook gauge measuring to ±0.05 mm accuracy.
Scope of Delivery
- 1 experimental module
- 1 set of accessories
- 1 instruction manual
Q1. Is this bench independent of laboratory water supply?
Yes, the bench is self contained and includes its own storage tank and circulation pump.
Q2. What type of fluids can be studied using this bench?
The apparatus is designed for experiments on Newtonian fluids using water and compatible laboratory liquids.
Q3. Are hydrostatic pressure and metacentric height experiments included?
Yes, dedicated hydrostatic pressure and metacentric height apparatus are included.
Q4. Can pressure gauges be calibrated using this bench?
Yes, a dead weight pressure calibrator is included for gauge calibration experiments.
Q5. Is the bench suitable for undergraduate laboratories?
Yes, it is designed for structured teaching in undergraduate and diploma level fluid mechanics labs.
