Heat Exchanger Service Unit | ThermoFlux – 7108

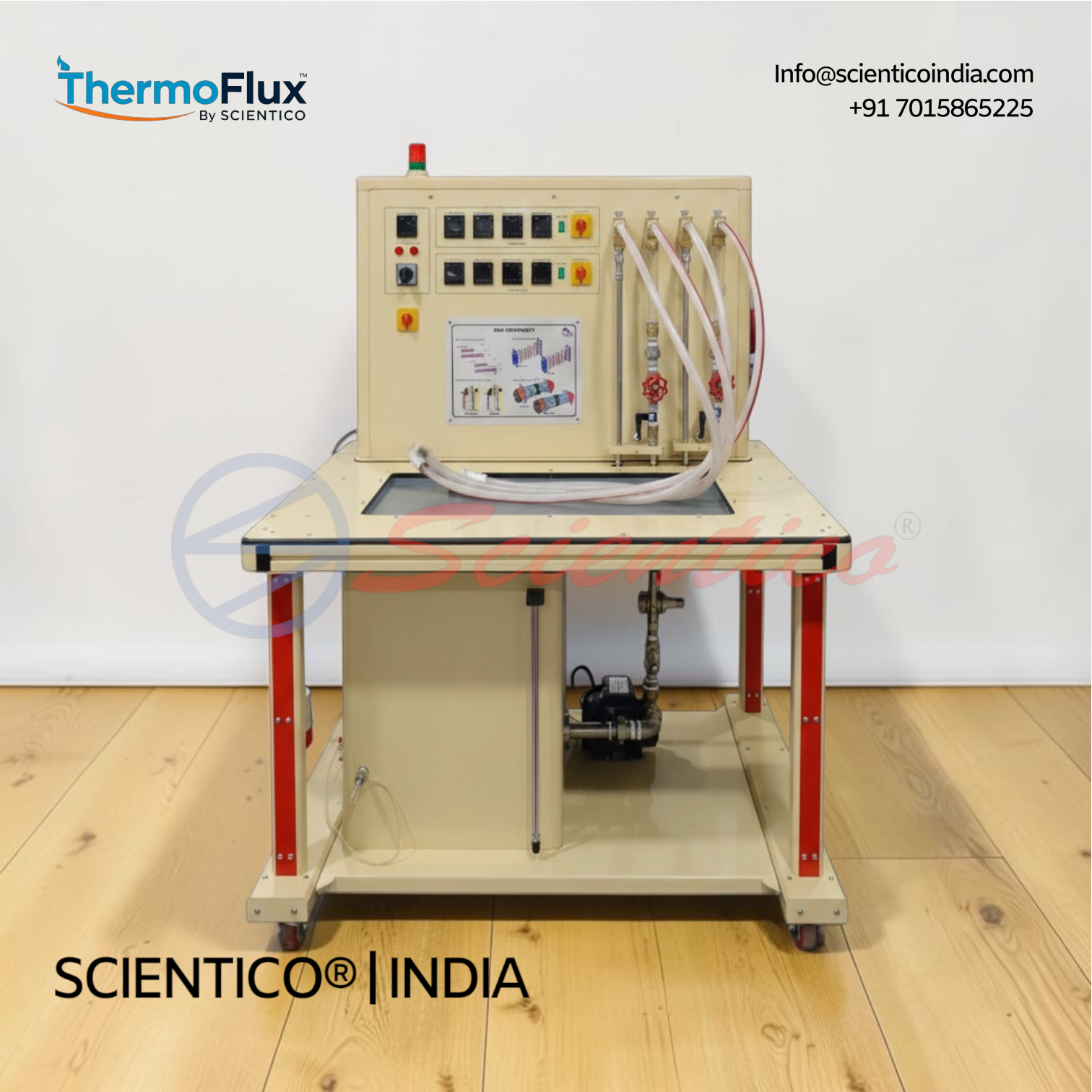

The Heat Exchanger Service Unit ThermoFlux – 7108 is a bench-mounted control and service unit providing hot and cold water circuits for the systematic investigation of heat exchanger performance across parallel flow and counter flow configurations. The unit houses a 50–60 litre stainless steel hot water tank with four 1.5 kW electric heating resistances (6 kW total), a PID digital temperature regulator (thermostat 70°C), a 0.75 HP centrifugal pump (0–29 LPM), and two independent flow meters (1–7 LPM each) for hot and cold circuits. Seven K-type thermocouples (−100°C to 400°C) provide comprehensive temperature monitoring; a pressure regulation valve set at 0.6 bar protects the connected exchanger module. The anodised aluminium frame with laser-engraved HDF panel supports four optional interchangeable heat exchanger modules: Plate Type (ThermoFlux – 7108-01), Concentric Tube (ThermoFlux – 7108-02), Shell and Tube (ThermoFlux – 7108-03), and Jacketed Vessel with Stirrer and Coil (ThermoFlux – 7108-04). Optional ThermoFlux – 7108SW DAQ software, developed in National Instruments™ LabVIEW™, enables PC data acquisition via USB/Ethernet on any Windows™ system.
The Heat Exchanger Service Unit ThermoFlux – 7108 is a bench-mounted experimental control unit designed to provide hot and cold water circuits for the investigation and comparison of multiple heat exchanger types under parallel flow and counter flow conditions. This heat exchanger service unit is compatible with up to four interchangeable heat exchanger modules — plate type, concentric tube, shell and tube, and jacketed vessel — enabling systematic study of thermal energy transfer, mean heat transfer coefficients, and temperature curve plotting across different exchanger designs and flow configurations.
Product Overview
The Heat Exchanger Service Unit ThermoFlux – 7108 forms the central control and service element of a modular heat exchanger experimental system. The unit houses a stainless steel hot water tank of 50–60 litre capacity fitted with four electric heating resistances of 1.5 kW each (6 kW total), a PID digital temperature regulator, a K-type thermocouple for water temperature measurement, level switches to prevent dry-running of the heater, a stainless steel cover, and a draining valve. Hot water is circulated through the connected heat exchanger by a 0.75 HP centrifugal pump with a flow range of 0–29 litres per minute. Cold water is supplied from the laboratory mains or an optional chilling unit. Two flow meters — one for hot water and one for cold water — each cover a range of 1 to 7 litres per minute. A control valve regulates cold water flow, and a regulation pressure valve set at 0.6 bar prevents excess pressure in the exchanger. Four flexible connecting tubes allow rapid interchange of heat exchanger modules. The structural frame is constructed from anodised aluminium with an insulated HDF wood panel; all water-contact parts are manufactured from PVC, brass, copper, or stainless steel. A front panel diagram with laser-engraved labelling provides a schematic representation of the real unit layout. Temperature is monitored by one K-type thermocouple dedicated to the temperature controller (−100°C to 400°C) and six additional K-type thermocouples (−100°C to 400°C) distributed across the system. Measured values are displayed on digital indicators on the panel and can simultaneously be transmitted to a PC via USB/Ethernet when the DAQ option is selected. The heat exchanger service unit is designed to work exclusively as the service base; at least one heat exchanger module must be ordered separately to conduct experiments.
Heat Exchanger Service Unit ThermoFlux – 7108 — Technical Specifications
| Parameter | Details |
|---|---|
| Model | ThermoFlux – 7108 |
| Unit Type | Bench-mounted heat exchanger service and control unit |
| Compatible Heat Exchanger Modules | Plate Type (ThermoFlux – 7108-01), Concentric Tube (ThermoFlux – 7108-02), Shell and Tube (ThermoFlux – 7108-03), Jacketed Vessel with Stirrer and Coil (ThermoFlux – 7108-04) |
| Flow Configurations | Parallel flow and counter flow |
| Frame Construction | Anodised aluminium structure; insulated HDF wood panel |
| Water-Contact Materials | PVC, brass, copper, stainless steel |
| Front Panel | Laser-engraved diagram matching real unit layout |
| Cold Water Supply | Laboratory mains or optional chilling unit |
| Data Output | Digital display; USB/Ethernet to PC (DAQ option) |
| Pressure Regulation Valve | Set at 0.6 bar |
| Flexible Connecting Tubes | 4 |
Technical Data
Heater
| Parameter | Value |
|---|---|
| Quantity | 4 |
| Total Power | 6 kW |
| Power per Heater | 1.5 kW each |
| Type | Electric heating resistance with thermostat (70°C) |
| Temperature Regulation | PID digital temperature regulator |
Hot Water Tank
| Parameter | Value |
|---|---|
| Material | Stainless steel |
| Capacity | 50–60 litres |
| Cover | Stainless steel cover |
| Level Protection | Level switches to prevent dry-running of heater |
| Drain | Draining water valve |
Pump
| Parameter | Value |
|---|---|
| Type | Centrifugal |
| Power | 0.75 HP |
| Flow Range | 0–29 litres per minute |
Flow Meters
| Circuit | Range |
|---|---|
| Hot water | 1–7 LPM |
| Cold water | 1–7 LPM |
Thermocouples
| Quantity | Range | Type |
|---|---|---|
| 1× (temperature controller) | −100°C to 400°C | K type |
| 6× (system measurement) | −100°C to 400°C | K type |
Key Features
- Unit function: Central service unit providing hot and cold water circuits for connection to interchangeable heat exchanger modules
- Compatible modules: Plate Type Heat Exchanger ThermoFlux – 7108-01; Concentric Tube Heat Exchanger ThermoFlux – 7108-02; Shell and Tube Heat Exchanger ThermoFlux – 7108-03; Jacketed Vessel with Stirrer and Coil ThermoFlux – 7108-04 — all optional, ordered separately
- Flow configurations: Parallel flow and counter flow — selectable by reversing water connections
- Hot water tank: Stainless steel; 50–60 litre capacity; stainless steel cover; draining valve; level switches prevent heater dry-running
- Heating system: 4 electric heating resistances; 1.5 kW each; 6 kW total; thermostat set at 70°C; PID digital temperature regulator
- Pump: Centrifugal type; 0.75 HP; variable flow rate; range 0–29 litres per minute
- Flow meters: Two independent flow meters — one hot water circuit, one cold water circuit; range 1–7 LPM each
- Cold water supply: Laboratory mains connection or optional chilling unit; control valve for flow regulation
- Pressure protection: Regulation pressure valve set at 0.6 bar prevents excess pressure in the heat exchanger
- Temperature measurement: 1× K-type thermocouple for temperature controller; 6× K-type thermocouples for system measurement; all −100°C to 400°C
- Connecting tubes: 4 flexible tubes for module interchange
- Frame and panel: Anodised aluminium structure; insulated HDF wood panel; laser-engraved front panel diagram for long-life legibility
- Water-contact materials: PVC, brass, copper, and stainless steel throughout
- Data output: Digital display on panel; simultaneous USB/Ethernet transmission to PC when DAQ option is selected
- Software: Optional ThermoFlux – 7108SW DAQ software developed in National Instruments™ LabVIEW™; compatible with all Windows™ environments
Experiments
- Plotting temperature curves in parallel flow operation
- Plotting temperature curves in counter flow operation
- Determining the mean heat transfer coefficient
- Comparing different heat exchanger types
Construction and Design
The Heat Exchanger Service Unit ThermoFlux – 7108 is constructed on an anodised aluminium structural frame with an insulated HDF wood panel, providing a rigid and thermally stable mounting platform for all components. The stainless steel hot water tank (50–60 litre capacity) is fitted with four 1.5 kW electric heating resistances (6 kW total), a thermostat set at 70°C, a PID digital temperature regulator, a K-type thermocouple for water temperature monitoring, level switches for dry-run protection, a stainless steel cover, and a draining valve. A 0.75 HP centrifugal pump circulates hot water through the connected heat exchanger module at variable flow rates up to 29 litres per minute. Two independent flow meters, each covering 1–7 LPM, monitor the hot and cold water circuits respectively. A cold water control valve and a pressure regulation valve set at 0.6 bar manage cold circuit flow and system pressure. Four flexible connecting tubes provide rapid interchange between heat exchanger modules. All water-contact components are manufactured from PVC, brass, copper, or stainless steel. Seven K-type thermocouples — one dedicated to the temperature controller and six distributed across the system — each cover −100°C to 400°C. Measured values are presented on panel-mounted digital displays and can be simultaneously transmitted to a PC via USB/Ethernet when the DAQ system is selected. The front panel features a laser-engraved schematic diagram matching the real unit component layout for durable, long-life reference during laboratory use.

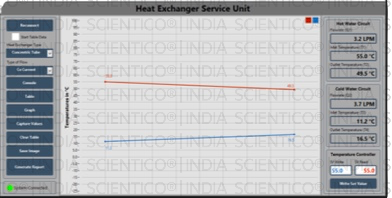

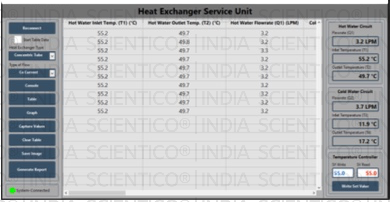

Software
ThermoFlux – 7108SW (Optional)
- DAQ software specifically developed for the ThermoFlux – 7108 apparatus
- Developed in the National Instruments™ LabVIEW™ environment
- Measures and calculates results directly from apparatus sensors
- Transmits measured values to PC via USB/Ethernet
- Compatible with all Windows™ operating environments
- When software option is selected, a set of electronic sensors is included
Scope of Delivery
- 1× Experimental unit
- 1× Set of hoses
- 1× Instructional manual
Optional Heat Exchanger Modules (Ordered Separately)
| Module | Model |
|---|---|
| Plate Type Heat Exchanger | ThermoFlux – 7108-01 |
| Concentric Tube Heat Exchanger | ThermoFlux – 7108-02 |
| Shell and Tube Heat Exchanger | ThermoFlux – 7108-03 |
| Jacketed Vessel with Stirrer and Coil | ThermoFlux – 7108-04 |
Q1: What is the function of the ThermoFlux – 7108, and can it be used as a standalone unit?
The ThermoFlux – 7108 is a service and control unit that provides the hot and cold water circuits required to operate heat exchanger modules. It cannot be used as a standalone experimental unit — at least one compatible heat exchanger module (ThermoFlux – 7108-01, -02, -03, or -04) must be ordered separately to conduct experiments.
Q2: Which heat exchanger modules are compatible with the ThermoFlux – 7108?
Four modules are available: Plate Type Heat Exchanger (ThermoFlux – 7108-01), Concentric Tube Heat Exchanger (ThermoFlux – 7108-02), Shell and Tube Heat Exchanger (ThermoFlux – 7108-03), and Jacketed Vessel with Stirrer and Coil (ThermoFlux – 7108-04). All are optional and ordered separately.
Q3: How is parallel flow or counter flow operation selected on the ThermoFlux – 7108?
Flow direction is changed by reversing the water connections between the service unit and the heat exchanger module. This allows the same unit and module combination to operate in either parallel flow or counter flow configuration without modification to the apparatus.
Q4: What is the heating capacity of the hot water tank, and how is temperature controlled?
The hot water tank is fitted with four 1.5 kW electric heating resistances providing 6 kW total heating power. Temperature is regulated by a PID digital temperature regulator and a thermostat set at 70°C, monitored by a dedicated K-type thermocouple. Level switches prevent the heater from operating without water in the tank.
Q5: Is the DAQ software included as standard with the ThermoFlux – 7108?
No. The ThermoFlux – 7108SW DAQ software is an optional accessory developed in the National Instruments™ LabVIEW™ environment. When selected, measured values are transmitted to a PC via USB/Ethernet and a set of electronic sensors is included. The software runs on any Windows™ operating system.
