Linear and Radial Heat Transfer Unit | ThermoFlux – 7043
The Linear and Radial Heat Transfer Unit ThermoFlux – 7043 is a tabletop experimental apparatus for the study of steady-state and unsteady-state heat transfer by conduction in both linear and radial geometries. The linear module features a multi-section brass cylindrical bar with 9 temperature sensors at 10 mm intervals, a 150 W electrical heater, and three interchangeable test sections in brass (25 mm and 16 mm diameter) and stainless steel (25 mm diameter), each 30 mm in length. The radial module comprises a 110 mm diameter, 6 mm thick brass disc fitted with 6 temperature sensors at 10 mm intervals and water-cooled at its outer boundary. Fast-response probes with 0.1°C resolution cover a temperature range of −100°C to 400°C, with power control continuously variable from 0–150 W. Optional ThermoFlux – 7043 DAQ software, developed in National Instruments™ LabVIEW™, is available for automated data acquisition and result calculation on any Windows™ system.
The Linear and Radial Heat Transfer Unit ThermoFlux – 7043 is a tabletop experimental apparatus designed to demonstrate and measure heat conduction in both linear and radial configurations using electrically heated test modules. This heat transfer unit provides accurate, single-dimensional and radial conduction studies on solid specimens — establishing the fundamental relationship between heat flow rate, temperature gradient, and cross-sectional area for engineering laboratory instruction.
Product Overview

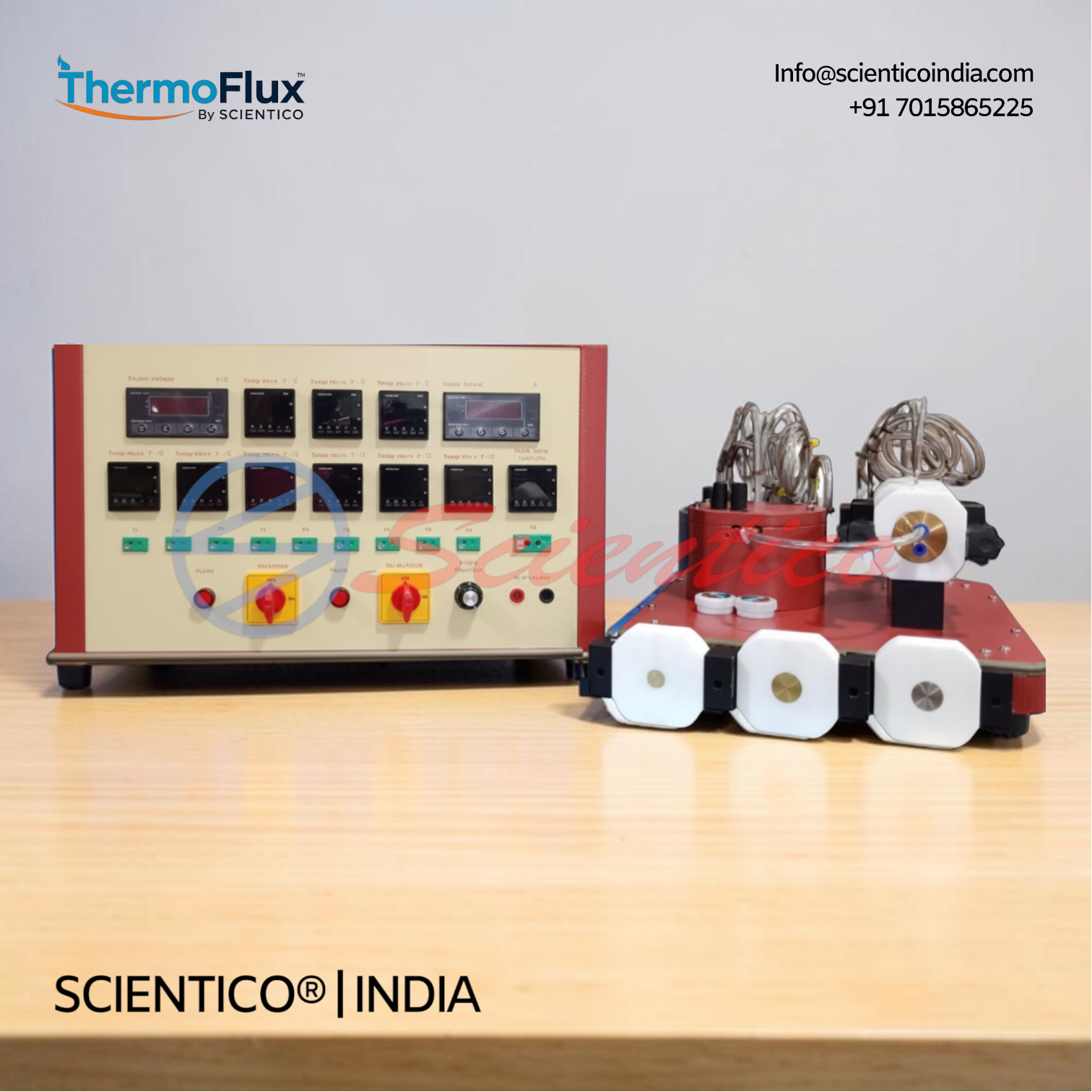

The Linear and Radial Heat Transfer Unit ThermoFlux – 7043 comprises two independently electrically heated modules mounted on a bench support frame. The linear module houses a multi-section cylindrical metal bar arrangement equipped with 9 temperature sensors at 10 mm intervals, supporting a range of linear conduction experiments including material comparison, series combinations, contact resistance investigation, and unsteady-state demonstration. The radial module contains a brass disc with 6 temperature sensors at 10 mm intervals for radial heat conduction studies. Cooling water supplied from a standard laboratory tap is directed to one end of each test piece to maintain a steady temperature gradient throughout the specimen. A control panel provides digital display of temperatures and heating power. Fast-response temperature probes with a resolution of 0.1°C are used throughout. The power control circuit delivers a continuously variable electrical output of 0–150 W. Interchangeable test sections allow investigation of the effects of cross-sectional area, material conductivity, and series combinations on heat transfer behaviour. The apparatus may also be used to measure the thermal conductivity of solid materials by clamping a sample of specific dimensions between the hot and cold elements. The test modules are designed to minimise errors arising from three-dimensional heat transfer effects, allowing the basic principles of conduction to be taught without prior knowledge of radiation or convective heat transfer.
Linear and Radial Heat Transfer Unit ThermoFlux – 7043 — Technical Specifications
| Parameter | Details |
|---|---|
| Model | ThermoFlux – 7043 |
| Configuration | Two modules: linear (cylindrical bar) and radial (brass disc) |
| Unit Type | Tabletop standalone unit |
| Heating | Electrical heating element, continuously variable 0–150 W output |
| Heater Power (Linear Module) | 150 W |
| Heater Power Measuring Range | 0–200 W |
| Cooling Method | Water cooling via standard laboratory tap supply |
| Temperature Measurement Range | −100°C to 400°C |
| Temperature Probe Resolution | 0.1°C |
| Linear Module — Temperature Sensors | 9 sensors at 10 mm intervals |
| Radial Module — Temperature Sensors | 6 sensors at 10 mm intervals |
| Display | Temperatures and heating power on control panel |
Technical Data
Linear Module
| Component | Parameter | Value |
|---|---|---|
| Heater Section | Material | Brass |
| Heater Section | Diameter | 25 mm |
| Heater Section | Heater Power | 150 W |
| Cooler Section | Material | Brass |
| Cooler Section | Diameter | 25 mm |
| Temperature Sensors | Quantity | 9 |
| Temperature Sensors | Spacing | 10 mm intervals |
Radial Module
| Parameter | Value |
|---|---|
| Material | Brass |
| Diameter | 110 mm |
| Thickness | 6 mm |
| Temperature Sensors | 6 sensors at 10 mm intervals |
Interchangeable Test Sections — Insulated Test Section with Temperature Sensor Array
| Material | Diameter | Length |
|---|---|---|
| Brass | 25 mm | 30 mm |
| Brass | 16 mm | 30 mm |
| Stainless Steel | 25 mm | 30 mm |
Measuring Ranges
| Parameter | Range |
|---|---|
| Temperature | −100°C to 400°C |
| Heater Power | 0–200 W |
Key Features
- Unit type: Tabletop standalone bench-mounted unit with two independent electrically heated modules
- Linear module: Multi-section cylindrical brass bar; 9 temperature sensors at 10 mm intervals; heater section diameter 25 mm; 150 W heater power
- Cooler section — linear module: Brass, 25 mm diameter; water-cooled to maintain steady temperature gradient
- Radial module: Brass disc; diameter 110 mm; thickness 6 mm; 6 temperature sensors at 10 mm intervals; water-cooled
- Interchangeable test sections: Brass 25 mm × 30 mm; Brass 16 mm × 30 mm; Stainless Steel 25 mm × 30 mm — enabling investigation of area, conductivity, and series combination effects on heat transfer
- Contact resistance: Contact resistance between specimen interfaces can be investigated using the linear module
- Unsteady-state conditions: Linear module supports demonstration of unsteady-state conduction behaviour
- Thermal conductivity measurement: Solid material samples of specific dimensions can be clamped between hot and cold elements for direct thermal conductivity measurement
- Temperature probes: Fast-response probes; resolution 0.1°C; measuring range −100°C to 400°C
- Power control: Continuously variable electrical output; 0–150 W operating range; 0–200 W measuring range
- Control panel: Digital display of temperatures and heating power
- Cooling: Water cooling via standard laboratory tap; applied to one end of each test piece
- Three-dimensional error minimisation: Test modules designed to minimise errors due to three-dimensional heat transfer effects
- Software: Optional ThermoFlux – 7043SW DAQ software developed in National Instruments™ LabVIEW™; compatible with all Windows™ environments
Experiments
Linear Heat Conduction (Plane Wall)
- Determination of temperature profiles for different materials
- Determination of temperature profile in case of disturbance
- Determination of thermal conductivity
Radial Heat Conduction
- Determination of temperature profile
- Determination of thermal conductivity
Construction and Design
The Linear and Radial Heat Transfer Unit ThermoFlux – 7043 is constructed around two electrically heated test modules mounted on a common bench support frame. The linear module consists of a multi-section cylindrical bar in brass, with a 25 mm diameter heater section rated at 150 W and a 25 mm diameter brass cooler section fed by laboratory tap water. Nine fast-response temperature sensors are distributed along the bar at 10 mm intervals, spanning the full conduction path. Three interchangeable insulated test sections — brass at 25 mm diameter, brass at 16 mm diameter, and stainless steel at 25 mm diameter, each 30 mm in length — allow systematic variation of material and cross-sectional area for controlled heat transfer experiments. The radial module comprises a 110 mm diameter brass disc of 6 mm thickness, fitted with 6 temperature sensors at 10 mm intervals and water-cooled on its outer boundary. A central electrical heater drives heat radially outward through the disc. The power control circuit delivers a continuously variable output across the 0–150 W range, with a measurement range extending to 200 W. A control panel provides digital readout of all temperatures and heating power; an optional data acquisition system interfaces via a selector switch on the control panel. All probes operate over −100°C to 400°C with 0.1°C resolution.
Software
ThermoFlux – 7044 (Optional)
- DAQ software specifically developed for the ThermoFlux – 7043 apparatus
- Developed in the National Instruments™ LabVIEW™ environment
- Measures and calculates results directly from apparatus sensors
- Compatible with all Windows™ operating environments
- When software option is selected, a set of electronic sensors is included
- Display of temperatures, heating power, and air velocity available within the software interface
Scope of Delivery
- 1× Experimental unit
- 1× Set of hoses
- 1× Set of thermocouples
- 1× Thermal paste
- 1× Instruction manual
Q1: What types of heat conduction experiments can be performed on the ThermoFlux – 7043?
The ThermoFlux – 7043 supports linear heat conduction experiments — including temperature profile determination for different materials, disturbance analysis, and thermal conductivity measurement — as well as radial heat conduction experiments covering temperature profile determination and radial thermal conductivity measurement.
Q2: What interchangeable test sections are supplied with the linear module?
Three insulated test sections with temperature sensor arrays are provided: brass at 25 mm diameter × 30 mm length, brass at 16 mm diameter × 30 mm length, and stainless steel at 25 mm diameter × 30 mm length. These allow investigation of the effects of cross-sectional area, material conductivity, and series combinations.
Q3: How many temperature measurement points does each module contain?
The linear module contains 9 temperature sensors positioned at 10 mm intervals along the bar. The radial module contains 6 temperature sensors at 10 mm intervals across the brass disc.
Q4: What cooling supply is required to operate the ThermoFlux – 7043?
Cooling water from a standard laboratory tap is required. It is fed to one end of each test module — the linear cooler section and the outer boundary of the radial disc — to maintain a steady temperature gradient during experiments.
Q5: Is the DAQ software included as standard?
No. The ThermoFlux – 7043SW DAQ software is an optional accessory developed in the National Instruments™ LabVIEW™ environment. It runs on any Windows™ operating system and, when selected, is supplied with a set of electronic sensors.
