Torsional Vibration Apparatus | Vibrano X – 04

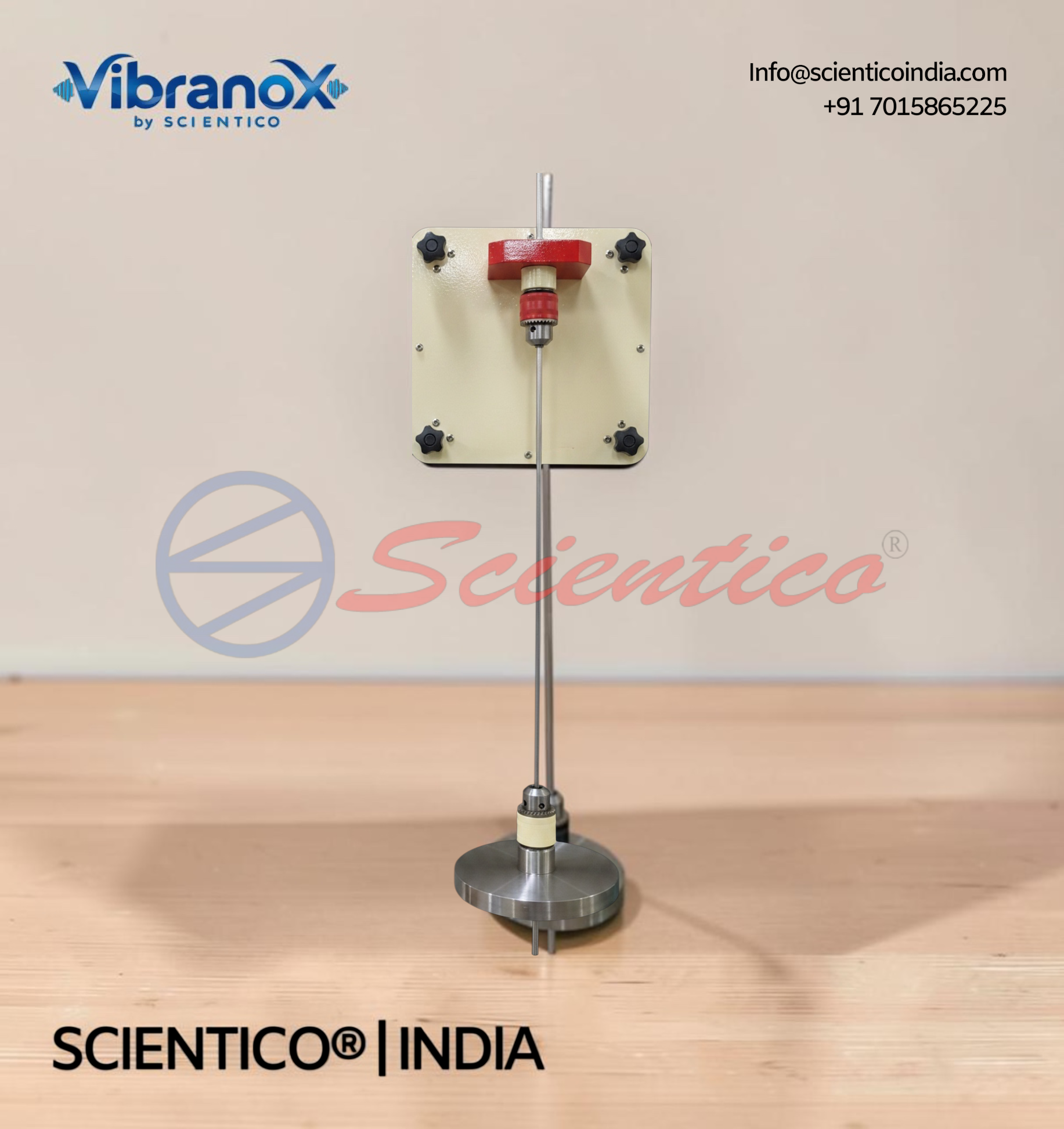

The Torsional Vibration Apparatus – Vibrano X – 04 investigates rotary vibration on torsion bars using a wall mounted base frame made of HDF. This Torsional Vibration Apparatus features a strong chuck system for clamping aluminium torsion rods, a galvanised steel mass disc, and a galvanised steel mass ring. Torsion rods are available in diameters of 2mm, 3mm, 4mm, 5mm and 6mm, at a length of 1100mm. The effective length is easy to adjust, making it suitable for student experiments on torsional vibration.
The Torsional Vibration Apparatus – Vibrano X – 04 enables rotary vibration on torsion bars to be investigated. The model consists of a wall mounted base frame made of HDF. This Torsional Vibration Apparatus is designed as a student experiment for studying torsional vibration behavior.
Product Overview
The model enables rotary vibration on torsion bars to be investigated. The model consists of a wall mounted base frame made of HDF. The carrier plate has a strong chuck. The torsion bars can be clamped in position with the aid of this chuck.
In the same way, the mass disc and the mass ring are clamped to the torsion bar using a chuck. The effective length is easy to adjust. This Torsional Vibration Apparatus is intended as a student experiment on torsional vibration.
Torsional Vibration Apparatus – Vibrano X – 04 — Technical Specifications
| Specification | Detail |
|---|---|
| Application | Student experiment on torsional vibration |
| Torsion Rods | Made of aluminium |
| Mass Disc | Made of galvanised steel |
| Mass Ring | Made of galvanised steel |
| Clamping | Strong chuck for fitting the rods |
| Mounting Plate | Made of HDF |
Technical Data
Torsion Rods
| Parameter | Value |
|---|---|
| Length | 1100mm |
| Diameter | 2mm, 3mm, 4mm, 5mm and 6mm |
Mass Disc
| Parameter | Value |
|---|---|
| Diameter | 160mm |
Mass Ring
| Parameter | Value |
|---|---|
| Outer diameter | 160mm |
| Inner diameter | 100mm |
Key Features
- Core Function: this Torsional Vibration Apparatus investigates rotary vibration on torsion bars
- Base Frame: wall mounted, made of HDF
- Torsion Rods: aluminium, length 1100mm, diameters 2mm, 3mm, 4mm, 5mm, 6mm
- Mass Disc: galvanised steel, diameter 160mm
- Mass Ring: galvanised steel, outer diameter 160mm, inner diameter 100mm
- Clamping System: strong chuck for fitting rods, mass disc, and mass ring
- Effective Length: easy to adjust
- Application: student experiment on torsional vibration
Experiments
- Determination of the period of torsional vibration as a function of torsion wire length
- Determination of the period of torsional vibration as a function of torsion wire diameter
- Determination of the period of torsional vibration as a function of rotating mass and its form
Construction and Design
The Torsional Vibration Apparatus – Vibrano X – 04 consists of a wall mounted base frame made of HDF. The carrier plate is fitted with a strong chuck. Torsion bars can be clamped in position using this chuck. The mass disc and mass ring are also clamped to the torsion bar using a chuck, in the same manner as the torsion bars. The effective length of the torsion bar is easy to adjust. Torsion rods are made of aluminium, while the mass disc and mass ring are made of galvanised steel. This Torsional Vibration Apparatus is built for straightforward setup and adjustment during student experiments.
Scope of Delivery
- 1 Experimental module
- 1 set of rods
- 1 mass disc
- 1 mass ring
- 1 drill chuck key
- 1 measuring scale
- 1 stopwatch
- 1 instruction manual
Q: What does the Torsional Vibration Apparatus – Vibrano X – 04 investigate?
A: It investigates rotary vibration on torsion bars, including the period of torsional vibration as a function of wire length, wire diameter, and rotating mass form.
Q: What material are the torsion rods made of?
A: The torsion rods are made of aluminium.
Q: What diameters are available for the torsion rods?
A: Torsion rods are available in diameters of 2mm, 3mm, 4mm, 5mm and 6mm.
Q: How are the mass disc and mass ring attached to the torsion bar?
A: Both the mass disc and mass ring are clamped to the torsion bar using a chuck.
Q: What is included in the scope of delivery?
A: The delivery includes 1 experimental module, 1 set of rods, 1 mass disc, 1 mass ring, 1 drill chuck key, 1 measuring scale, 1 stopwatch, and 1 instruction manual.
