Torsional Vibration System | Vibrano X – 10
The Torsional Vibration System – Vibrano X – 10 explains torsion of rods and torsional vibration through experiments with up to three mass configurations. It features stainless steel torsion bars, 3 mass discs, and 4 ball bearing mounted bearing units with chucks. This Torsional Vibration System uses a motorized exciter with excitation amplitudes of 1.4°, 1.6°, and 2.4°, along with an adjustable oil damper and 4 angle of rotation sensors. Shaft encoders and a servo control unit provide digital frequency display and signal output for analysis.
The Torsional Vibration System – Vibrano X – 10 is used to explain torsion of rods and torsional vibration experiments. This apparatus allows the student to demonstrate and perform experiments as well as calculate the results. This Torsional Vibration System supports assembly of vibrator systems with up to three masses.
Product Overview

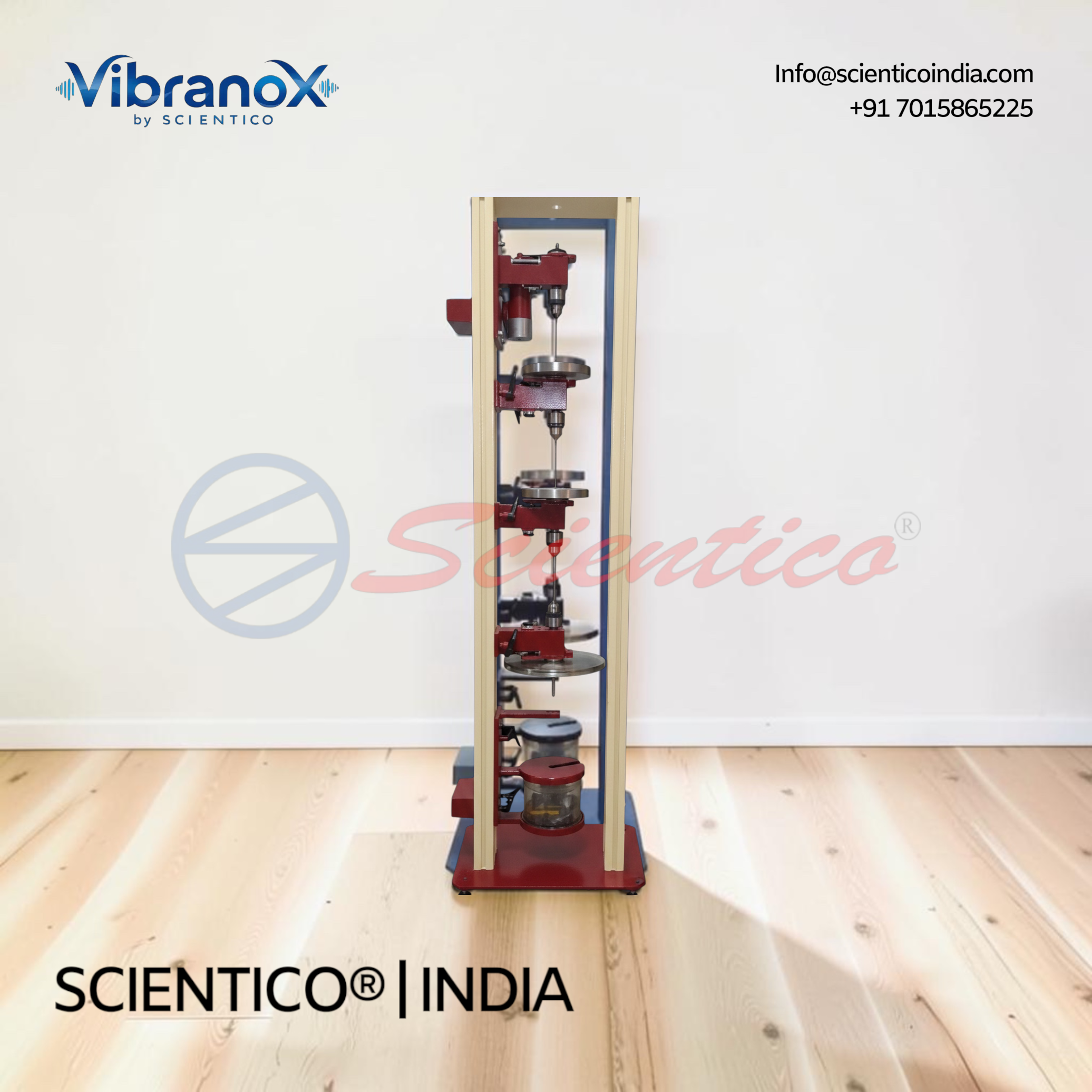

This apparatus is used to explain torsion of rods and torsional vibration experiments. This apparatus allows the student to demonstrate and to perform experiments foreseen as well as to calculate the results. The main unit of this apparatus is metal torsion bars.
With the aid of chucks, mass discs of varying inertia can be attached to the bars. In this way it is possible to assemble torsional vibrator systems with up to three masses. Vibrations can be induced on the system using a servo motorized exciter and the control unit. An adjustable damper can be used to influence the vibrations.
Shaft encoders on the chucks provide the amplitude of vibration as an electrical signal. The control unit conditions these signals and makes them available, for example, for display on the data acquisition software or on an oscilloscope (optional). This Torsional Vibration System enables investigation of torsional vibration and torsional stiffness across multiple mass configurations.
Torsional Vibration System – Vibrano X – 10 — Technical Specifications
| Specification | Detail |
|---|---|
| Application | Experimental unit for investigating torsional vibration and torsional stiffness |
| Frame | Anodized Aluminum Profiled Structure |
| Torsion Bar | Stainless Steel, corrosion-resistant |
| Mass Discs | 3 mass discs made of Stainless Steel |
| Bearing Units | 4 ball bearing mounted bearing units with chucks, positionable anywhere along the shaft |
| Damper | Oil damper for studying influence of damping |
| Exciter | Motorized exciter with drive crank, excitation amplitudes 1.4°, 1.6°, 2.4° |
| Rotation Sensors | 4 angle of rotation sensors |
| Control Unit | Servo exciter control unit with digital frequency display and supply for shaft encoders |
| Encoders | Shaft encoders |
Technical Data
Torsion Test Bar
| Parameter | Value |
|---|---|
| Qty | 3 pcs |
| Size (D x L) | 3mm x 1000mm, 5mm x 1000mm, 6mm x 1000mm |
| Material | Corrosion-resistant steel |
Mass Disk
| Parameter | Value |
|---|---|
| D=150mm | approx. 2.7kg, Qty: 2pcs |
| D=228mm | approx. 4.8kg, Qty: 1pc |
Chuck with Bearing Mounting Support
| Parameter | Value |
|---|---|
| Diameter | D=0.5…10mm |
| Qty | 4pcs |
Damper
| Parameter | Value |
|---|---|
| Type | Oil Type |
| Damping coefficient | Adjustable |
Exciter
| Parameter | Value |
|---|---|
| Type | Motorized |
| Exciter frequency | 1…20Hz |
| Control | Digital display with Potentiometer |
| Encoders | Qty: 4pcs |
| Mounting | Check Support Mounting |
Sensors (Angle Sensors)
| Parameter | Value |
|---|---|
| Qty | 4 |
| Measuring principle | Contact type |
| Output signal (for other devices) | Analogue/digital |
| Measuring Range | 0 ~ 360° |
Mounting Frame
| Parameter | Value |
|---|---|
| Material | Aluminum |
| Type | Profiled Structure |
| Groove width of profile | 10mm |
| Size (L x W) | 1400mm x 400mm |
Measuring Frequency Exciter
| Parameter | Value |
|---|---|
| Range | 0 ~ 50Hz |
Measuring Amplifier
| Parameter | Value |
|---|---|
| Multi input signals | From different sensors |
| Analogue output channels | 4, via BNC |
| Digital output | 2, for speed and other |
| Data Acquisition | Data Acquisition Device |
Key Features
- Core Function: this Torsional Vibration System investigates torsion of rods and torsional stiffness
- Frame: anodized aluminum profiled structure, size 1400mm x 400mm
- Torsion Bars: 3 pcs, stainless steel, corrosion-resistant, sizes 3mm, 5mm, 6mm x 1000mm
- Mass Discs: 3 discs, stainless steel, D=150mm (2.7kg, qty 2) and D=228mm (4.8kg, qty 1)
- Bearing Units: 4 ball bearing mounted units with chucks, positionable along shaft length
- Damping: oil damper with adjustable damping coefficient
- Exciter: motorized, exciter frequency 1…20Hz, excitation amplitudes 1.4°, 1.6°, 2.4°
- Rotation Sensors: 4 angle sensors, contact type, measuring range 0 ~ 360°
- Control Unit: servo exciter control unit with digital frequency display
- Multi-Mass Configuration: supports two mass and three mass torsional vibrator systems
- Signal Output: 4 analogue output channels via BNC, 2 digital outputs for speed and other data
- Optional Upgrade: LabVIEW based DAQ software available for measurement and calculation
Experiments
- Determination of the torsional stiffness of a torsion bar
- Determination of the mass moment of inertia
- Decay behavior of torsional vibration system
- Determination of the damping of torsional vibration
- Understanding the resonance by forced torsional vibration
- Torsional vibration systems with several weights, two mass torsional vibrator, three mass torsional vibrator
Construction and Design
The Torsional Vibration System – Vibrano X – 10 is built on a frame made of anodized aluminum profiled structure, sized 1400mm x 400mm with a groove width of 10mm. The main unit consists of metal torsion bars made of corrosion-resistant stainless steel. With the aid of chucks, mass discs of varying inertia can be attached to the bars, allowing assembly of torsional vibrator systems with up to three masses.
Four ball bearing mounted bearing units with chucks can be positioned anywhere along the length of the shaft. Vibrations are induced on the system using a servo motorized exciter with a drive crank, offering excitation amplitudes of 1.4°, 1.6°, and 2.4°, controlled through the control unit. An adjustable oil damper is used to influence the vibrations.
Shaft encoders on the chucks provide the amplitude of vibration as an electrical signal. The control unit conditions these signals and makes them available for display on data acquisition software or on an oscilloscope, which is optional. This Torsional Vibration System uses four angle of rotation sensors of contact type, with a measuring range of 0 ~ 360°.
Software
Software Vibrano X – 10 (optional)
DAQ software specially designed in National Instrument™, LabVIEW™ environment to measure and calculate the results of the apparatus. The software is optional. While using the software, a set of electrical vibration sensors with clamping set is included. The software can be run with any Windows™ environment.
Scope of Delivery
- 1 experimental module
- 1 set of torsion rods
- 4 chucks with bearing mounting
- 3 mass disks
- 1 damper
- 1 electrical exciter
- 4 position encoder with chuck mounting
- 1 measuring scale
- 1 control unit
- 1 storage tray
- 1 instruction manual
- 1 set of tool
Q: What does the Torsional Vibration System – Vibrano X – 10 investigate?
A: It investigates torsional stiffness, mass moment of inertia, decay behavior, damping, and resonance in torsional vibration systems.
Q: How many masses can be assembled in the vibrator system?
A: Up to three masses can be assembled, supporting both two mass and three mass torsional vibrator configurations.
Q: What are the torsion bar sizes available?
A: Torsion bars are available in 3mm x 1000mm, 5mm x 1000mm, and 6mm x 1000mm, made of corrosion-resistant steel, with 3 pcs supplied.
Q: How is vibration amplitude measured?
A: Shaft encoders on the chucks provide vibration amplitude as an electrical signal, which the control unit conditions for display on data acquisition software or an oscilloscope (optional).
Q: What is the exciter frequency range?
A: The motorized exciter operates at a frequency range of 1…20Hz, with excitation amplitudes of 1.4°, 1.6°, and 2.4°.
Explore Related Equipment
Discover more mechanical engineering lab equipment including testing systems, experimental setups, and training models designed for academic and industrial applications.
SCIENTICO manufactures a wide range of medical lab equipment designed for medical colleges, diagnostic laboratories, hospitals, and clinical research institutions. Our equipment supports diagnostic testing, clinical analysis, and medical education, helping institutions deliver accurate results and effective hands-on training.
Our medical lab equipment range covers pathology, microbiology, hematology, and general clinical diagnostics, built to support both academic training and functional lab operations. Each product is engineered for precision, reliability, and ease of maintenance.
