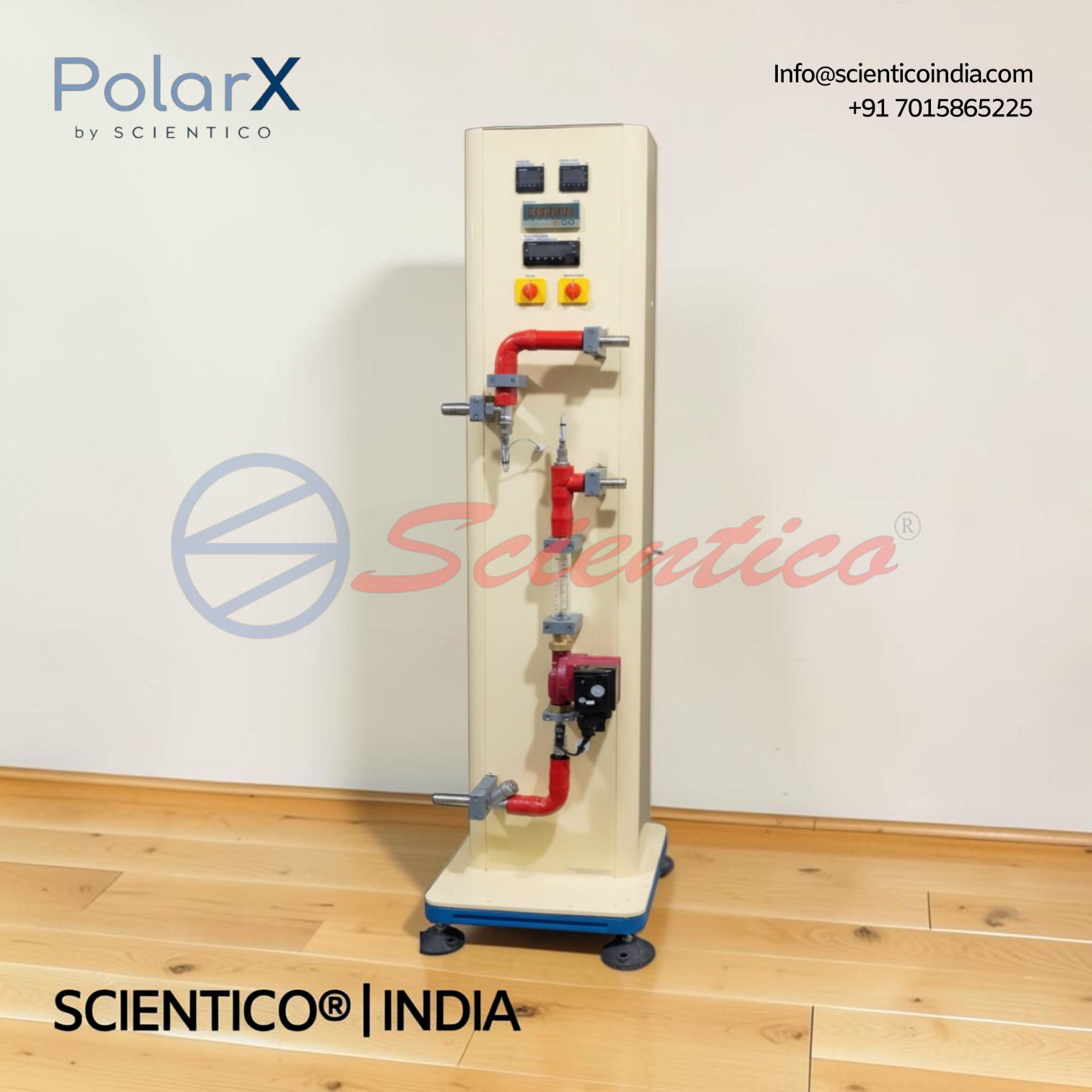

Universal Pumping Unit | PolarX – 528
The Universal Pumping Unit PolarX – 528 is engineered for versatile and efficient fluid handling in industrial and laboratory applications. This Universal Pumping Unit uses a high-efficiency centrifugal pump (60W, 2m³/h max flow, 4.8m head) with real-time monitoring via two K type thermocouples and a digital flow sensor. A rotameter with acrylic body and metal float provides additional flow measurement calibration (range 1.8 to 18 lpm). The aluminum frame and Bakelite panel components ensure durability, electrical insulation, and heat resistance.
The Universal Pumping Unit PolarX – 528 is engineered for versatile and efficient fluid handling applications. This Universal Pumping Unit integrates a high-efficiency pump with multiple monitoring and control components to provide precise and reliable fluid management.
Product Overview Designed for optimal performance and ease of use, this Universal Pumping Unit is ideal for various industrial and laboratory applications. It offers real-time data display and adjustable parameters to ensure operational accuracy and efficiency.
The frame is constructed from high-strength aluminum profiles, ensuring a lightweight yet robust structure that provides both durability and ease of handling. Bakelite is used for various panel components, offering excellent electrical insulation properties and resistance to heat. This makes it ideal for components exposed to varying temperatures and electrical components. A process flow diagram on the front of the panel describes the components involved in the apparatus and the process path followed by fluid.
The pump is a high-efficiency centrifugal pump with low power requirements. The suction and discharge nozzles connect to the respective fluid inlets and outlets, and all connections must be secure. Adjustable feet stabilize the unit on uneven surfaces and ensure proper alignment. Each foot can be adjusted individually to level the unit, accommodating different installation environments and maintaining operational stability.
Universal Pumping Unit PolarX – 528 — Technical Specifications
| Component | Type / Detail |
|---|---|
| Frame | High-strength aluminum profiles |
| Panel Components | Bakelite, electrically insulating and heat resistant |
| Front Panel | Process flow diagram describing components and fluid path |
| Pump Type | High-efficiency centrifugal pump, low power requirements |
| Installation | Adjustable feet, individually adjustable for leveling |
| Connections | Suction and discharge nozzles connect to fluid inlets and outlets |
Technical Data
Pump
| Parameter | Value |
|---|---|
| Power Consumption | 60W |
| Max. Flow Rate | 2m³/h |
| Head | 4.8m |
| Operating Temperature | max. 110°C |
Temperature Monitoring
| Parameter | Value |
|---|---|
| Type | Two K type thermocouples |
| Display | Digital display for accurate temperature readings |
| Temperature Range | -100~400°C |
Flow Monitoring
| Parameter | Value |
|---|---|
| Flowmeter | Digital flow sensor |
| Display | Digital display for real-time flow measurement |
| Measurement Range | 1.8~18lpm |
Flow Measurement
| Parameter | Value |
|---|---|
| Flowmeter | Rotameter |
| Type | Variable area flow meter |
| Range | 1.8 to 18 lpm |
| Material | Acrylic with a metal float |
Key Features
- Application: Universal Pumping Unit for versatile, efficient fluid handling
- Pump Type: High-efficiency centrifugal pump, low power requirements
- Power Consumption: 60W
- Max Flow Rate: 2m³/h
- Head: 4.8m
- Operating Temperature: max. 110°C
- Temperature Monitoring: Two K type thermocouples, range -100~400°C, digital display
- Flow Monitoring: Digital flow sensor, range 1.8~18lpm, digital display
- Rotameter: Variable area flow meter, acrylic with metal float, range 1.8 to 18 lpm
- Frame Construction: High-strength aluminum profiles
- Panel Material: Bakelite for electrical insulation and heat resistance
- Installation: Individually adjustable feet for leveling on uneven surfaces
Experiments
- Analyze the behavior of fluids under various conditions, leveraging the pump’s adjustable flow rate and head
- Use the integrated thermocouples to monitor and analyze temperature variations in fluid systems
- Energy balances
- Assess the efficiency and performance of the pumping unit under different operational conditions
- Utilize the digital flow sensor and rotameter for calibration of other flow measurement devices
Construction and Design
The Universal Pumping Unit PolarX – 528 features a frame constructed from high-strength aluminum profiles, ensuring a lightweight yet robust structure. Bakelite is used for various panel components, providing electrical insulation and heat resistance. A process flow diagram is displayed on the front of the panel, describing the components and the process path followed by fluid. The pump is a high-efficiency centrifugal pump with low power requirements. Suction and discharge nozzles connect to the respective fluid inlets and outlets, with all connections required to be secure. Adjustable feet, individually adjustable, stabilize the unit on uneven surfaces and maintain proper alignment.
Scope of Delivery
- 1 experimental unit
- 1 set of hoses
- 1 instructional manual
Optional Accessories
- Steam jet refrigeration system, PolarX – 528
- Domestic water heating with flat collector
Q: What type of pump does the Universal Pumping Unit PolarX – 528 use?
A: A high-efficiency centrifugal pump with low power requirements, consuming 60W.
Q: What is the maximum flow rate and head of the pump?
A: Max. flow rate is 2m³/h with a head of 4.8m.
Q: How is temperature monitored?
A: Two K type thermocouples with a digital display, covering a range of -100~400°C.
Q: What flow measurement instruments are included?
A: A digital flow sensor (range 1.8~18lpm) and a rotameter, a variable area flow meter made of acrylic with a metal float (range 1.8 to 18 lpm).
Q: How is the unit stabilized during installation?
A: Individually adjustable feet stabilize the unit on uneven surfaces and maintain proper alignment.
