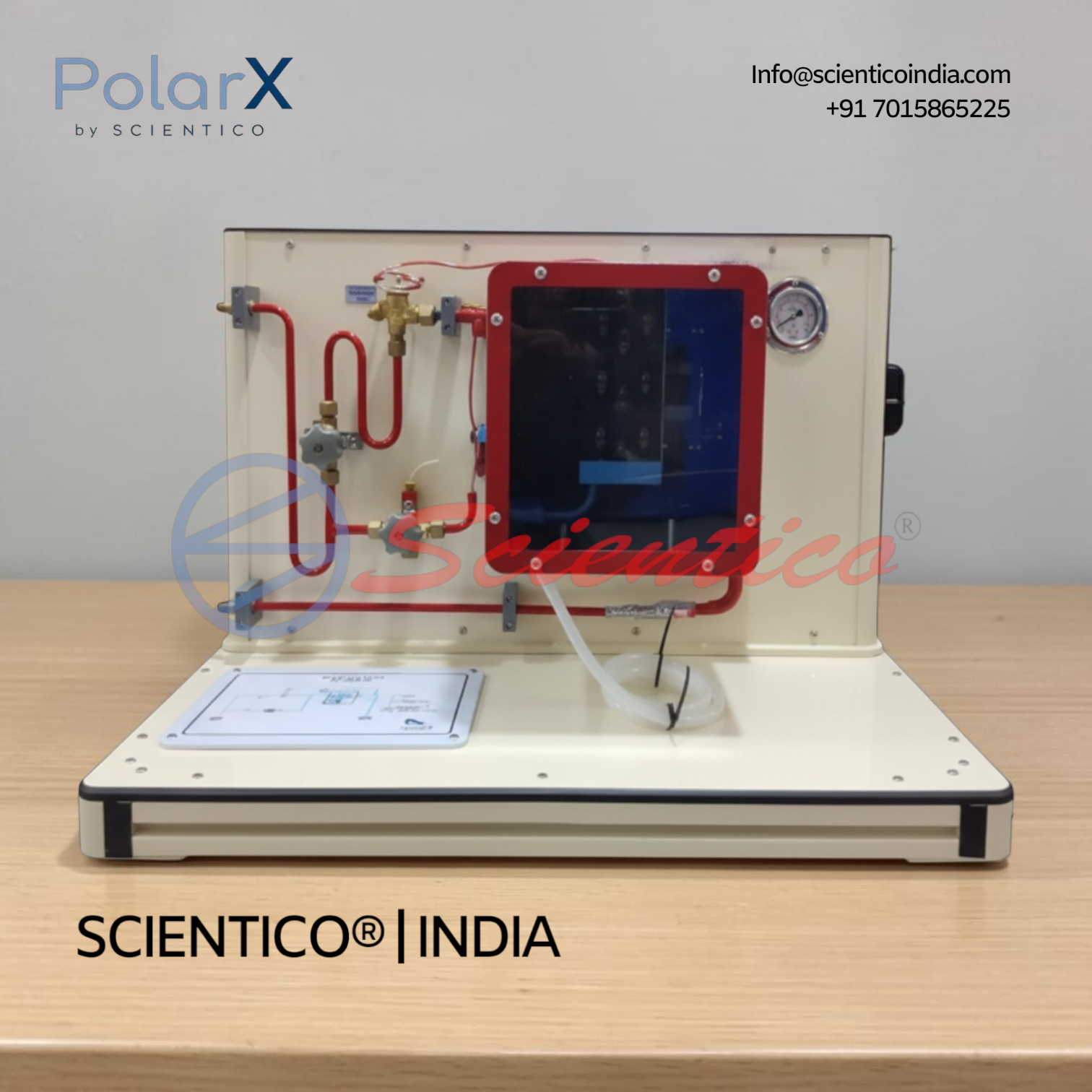

Refrigerator Model | PolarX – 588
The Refrigerator Model PolarX – 588 forms a functional domestic refrigerator model when plugged onto the base unit PolarX – 588, part of the HSI training system. This Refrigerator Model features a transparent refrigeration chamber (265x265x265mm) with a 150W electric PTC heater as cooling load, a thermostatic expansion valve, and a capillary tube (1.6~2.2m) selectable via solenoid valves. Sensors monitor temperature (3x, -100~400°C) and pressure (-1~15bar), with optional software enabling fault simulation and p-h diagram tracking.
The Refrigerator Model PolarX – 588 is part of the Hardware/Software Integration (HSI) training system for refrigeration and air conditioning technology. When used with the base unit PolarX – 588, this Refrigerator Model forms a functional model of a domestic refrigerator.
Product Overview The module attaches securely to the base unit with fasteners and connects to refrigerant hoses to create a complete refrigeration circuit. The trainer includes a refrigeration chamber equipped with a heater for simulating cooling loads, an evaporator, a fan, and various expansion elements. The fan ensures even temperature distribution within the chamber, while the heater simulates additional cooling loads. Solenoid valves allow the system to operate either with a capillary tube or an expansion valve. All components are neatly organized on a panel.
System components such as temperature control, fan, heater, compressor, and solenoid valves are managed through the software, which is optional. The software also offers fault simulation capabilities. Sensors monitor and record temperatures and pressures, which are displayed dynamically in the software. Changes in parameters can be tracked online using the p-h diagram.
Refrigerator Model PolarX – 588 — Technical Specifications
| Component | Type / Detail |
|---|---|
| System Integration | Model of a refrigerator to plug onto the base unit |
| Training Technology | Hardware/Software Integration (HSI) technology |
| Refrigeration Chamber | Evaporator, fan, cooling load |
| Chamber Front | Transparent |
| Heater | Electric heater to generate the cooling load |
| Expansion Elements | Selectable via solenoid valves: expansion valve or capillary tube |
| Sensors | Record temperature and pressure |
| Software Control | Operation of solenoid valves, fan, heater and fault simulation via software |
| Software Connectivity | Control functions and data acquisition via USB under Windows 10 (optional) |
| Software Package | Educational software, data acquisition, system operation, comes with base unit PolarX – 588 (optional) |
Technical Data
Refrigeration Chamber
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 265x265x265mm |
| Electric PTC Heater (cooling load) | 150W |
Expansion Elements
| Parameter | Value |
|---|---|
| Type | Thermostatic Expansion Valve |
| Capillary Tube Length | 1.6~2.2m |
| Selection | Separate valves to operate expansion valve or capillary tube |
Fan
| Parameter | Value |
|---|---|
| Function | Air circulation |
Measuring Ranges
| Parameter | Value |
|---|---|
| Temperature | 3x -100~400°C |
| Pressure | -1~15bar |
Key Features
- System Type: Refrigerator Model for HSI-based refrigeration and air conditioning training
- Base Compatibility: Plugs onto base unit PolarX – 588 to form a complete refrigeration circuit
- Refrigeration Chamber: 265x265x265mm, transparent front
- Cooling Load: Electric PTC heater, 150W
- Expansion Elements: Thermostatic expansion valve and capillary tube (1.6~2.2m), solenoid valve selectable
- Fan: Ensures even air circulation within the chamber
- Software Control: Manages solenoid valves, fan, heater, and fault simulation (optional)
- Connectivity: USB data acquisition under Windows 10 (optional)
- Temperature Sensors: 3x, range -100~400°C
- Pressure Range: -1~15bar
Experiments
- Design and operation of a simple refrigeration system
- Different expansion elements: operation with capillary tube, operation with expansion valve
- Operating behaviour under load
- Refrigeration cycle in the p-h diagram
- Fault simulation
Construction and Design
The Refrigerator Model PolarX – 588 attaches securely to the base unit using fasteners and connects via refrigerant hoses to complete the refrigeration circuit. The refrigeration chamber measures 265x265x265mm and features a transparent front. An electric PTC heater rated at 150W generates the cooling load, while a fan ensures even air circulation within the chamber. Solenoid valves allow selection between a thermostatic expansion valve and a capillary tube (length 1.6~2.2m). All components are neatly organized on a panel for clear visibility.
Required for Operation (optional)
- Base unit for refrigeration and air conditioning training system, PolarX – 588
Scope of Delivery
- 1 module
- 1 Instructional Manual
Q: What does the Refrigerator Model PolarX – 588 simulate?
A: When used with the base unit, it forms a functional model of a domestic refrigerator.
Q: What expansion elements are available?
A: A thermostatic expansion valve and a capillary tube (length 1.6~2.2m), selectable via solenoid valves.
Q: How is the cooling load generated?
A: An electric PTC heater rated at 150W simulates the cooling load within the refrigeration chamber.
Q: Can this module simulate faults?
A: Yes. The optional software offers fault simulation capabilities alongside control of solenoid valves, fan, and heater.
Q: What are the chamber dimensions?
A: The refrigeration chamber measures 265x265x265mm and has a transparent front.
