Working Model Of Hydraulic Braking System | Torquemaster-16

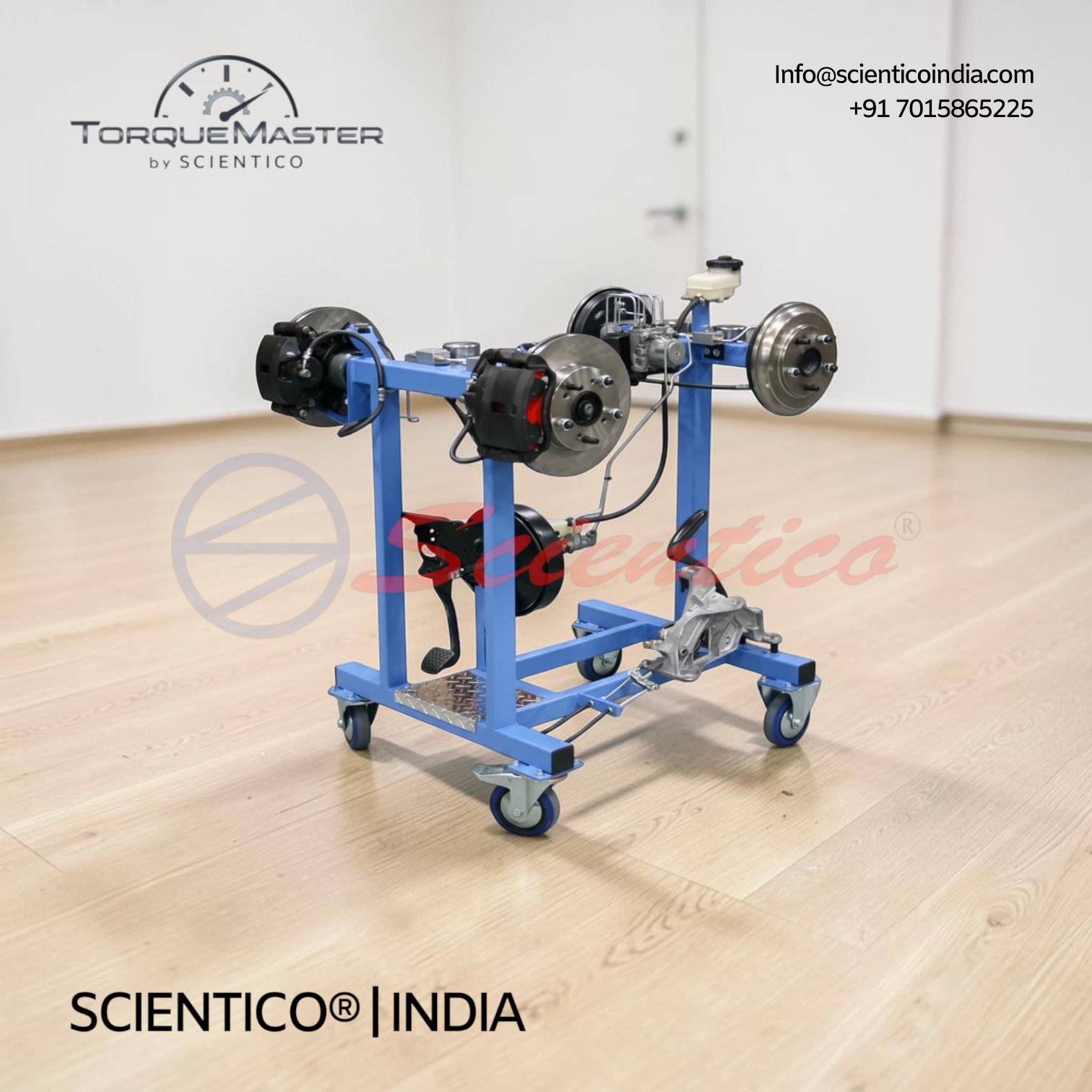

Working Model Of Hydraulic Braking System Torquemaster-16 is a four-wheel hydraulic brake system trainer demonstrating a typical non-ABS braking system as it operates on a real vehicle. This Working Model Of Hydraulic Braking System offers easy access to all brake components, with pressure gauges showing actual braking pressure at each wheel. It supports full brake service training including master cylinder, pad/shoe, disc/drum, and parking brake procedures. Mounted on a heavy duty metal stand with casters, it fits through a standard 30 inch door for easy transport.
The Working Model Of Hydraulic Braking System Torquemaster-16 is a four-wheel hydraulic brake system trainer used to demonstrate the functionality of a typical non-ABS braking system as it operates on a real vehicle. This Working Model Of Hydraulic Braking System can be used in the classroom environment for demonstrations to students.
Product Overview
The Torquemaster-16 provides a safe and effective method of demonstrating the principles of hydraulic braking systems used on today’s vehicles. The training brake rig can be used as a visual aid for students of mechanical subjects to demonstrate and explain the structure and components. This Working Model Of Hydraulic Braking System also serves as educational equipment for brake system repair and service procedures.
Planning an automobile lab? See the automobile engineering equipment and model-selection guide.
Working Model Of Hydraulic Braking System Torquemaster-16 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | Torquemaster-16 |
| System Type | Real automotive components with fully functional disc/drum hydraulic braking system |
| Door Clearance | Fits through a standard 30 inch door opening |
| Stand | Heavy duty metal stand with casters, two fixed and two swivel with locks |
| Length x Width x Height (approx.) | 1000 x 800 x 1200 mm |
| Weight (approx.) | 140 kg |
Technical Data
Hydraulic and Brake Components
| Component | Detail |
|---|---|
| Hydraulic Components | All hydraulic components included |
| Brake Pedal | Brake pedal and parking brake pedal |
| Booster | Power brake booster |
| Parking Brake | Parking brake components, fully functional parking brake system |
| Pressure Gauges | Hydraulic pressure gauges at each wheel (4) |
Serviceable Procedures
| Procedure | Detail |
|---|---|
| Master Cylinder Service | Supported |
| Brake Pad/Shoe Replacement | Supported |
| Disc/Drum Service | Supported |
| Wheel Bearing Service | Supported |
| Caliper/Wheel Cylinder Service | Supported |
| Brake Hose/Line Service | Supported |
| Parking Brake Service | Supported |
Key Features
- Functionality: Demonstrates full functionality of a 4-wheel hydraulic brake system
- Access: Easy access to all brake components without the confinements of a real vehicle
- Pressure Monitoring: Pressure gauges show actual braking pressure at each wheel
- Components: Real automotive components including power brake booster and parking brake system
- Portability: Heavy duty metal stand with casters for easy transport
- Design Type: Working Model Of Hydraulic Braking System built for classroom and service training
Experiments
- Study of 4-wheel hydraulic brake system operation
- Measurement of braking pressure at each wheel using pressure gauges
- Master cylinder service procedure
- Brake pad and shoe replacement procedure
- Disc and drum service procedure
- Wheel bearing service procedure
- Caliper and wheel cylinder service procedure
- Brake hose and line service procedure
- Parking brake service procedure
Construction and Design
The Working Model Of Hydraulic Braking System Torquemaster-16 is built with real automotive components forming a fully functional disc/drum hydraulic braking system. It includes all hydraulic components, a brake pedal and parking brake pedal, a power brake booster, and parking brake components. Hydraulic pressure gauges are fitted at each of the four wheels, and the parking brake system is fully functional. The unit is mounted on a heavy duty metal stand fitted with casters, two fixed and two swivel with locks, and is sized to fit through a standard 30 inch door opening for easy transport.
Scope of Delivery
- Four-wheel hydraulic braking system trainer
- All hydraulic components
- Brake pedal and parking brake pedal
- Power brake booster
- Parking brake components
- Hydraulic pressure gauges (4)
- Heavy duty metal stand with casters (two fixed, two swivel with locks)
Q1: What does the Working Model Of Hydraulic Braking System Torquemaster-16 demonstrate?
A: It demonstrates the full functionality of a typical non-ABS, 4-wheel hydraulic braking system as it operates on a real vehicle.
Q2: What service procedures can be performed on this trainer?
A: Master cylinder service, brake pad/shoe replacement, disc/drum service, wheel bearing service, caliper/wheel cylinder service, brake hose/line service, and parking brake service can all be performed.
Q3: How is braking pressure measured on this trainer?
A: Hydraulic pressure gauges at each of the four wheels show the actual braking pressure.
Q4: Is this trainer easy to transport?
A: Yes, it is mounted on a heavy duty metal stand with two fixed and two swivel casters with locks, and fits through a standard 30 inch door opening.
Q5: What are the dimensions and weight of the trainer?
A: The approximate dimensions are 1000 x 800 x 1200 mm, with an approximate weight of 140 kg.
