Maintenance Kit | PolarX – 596

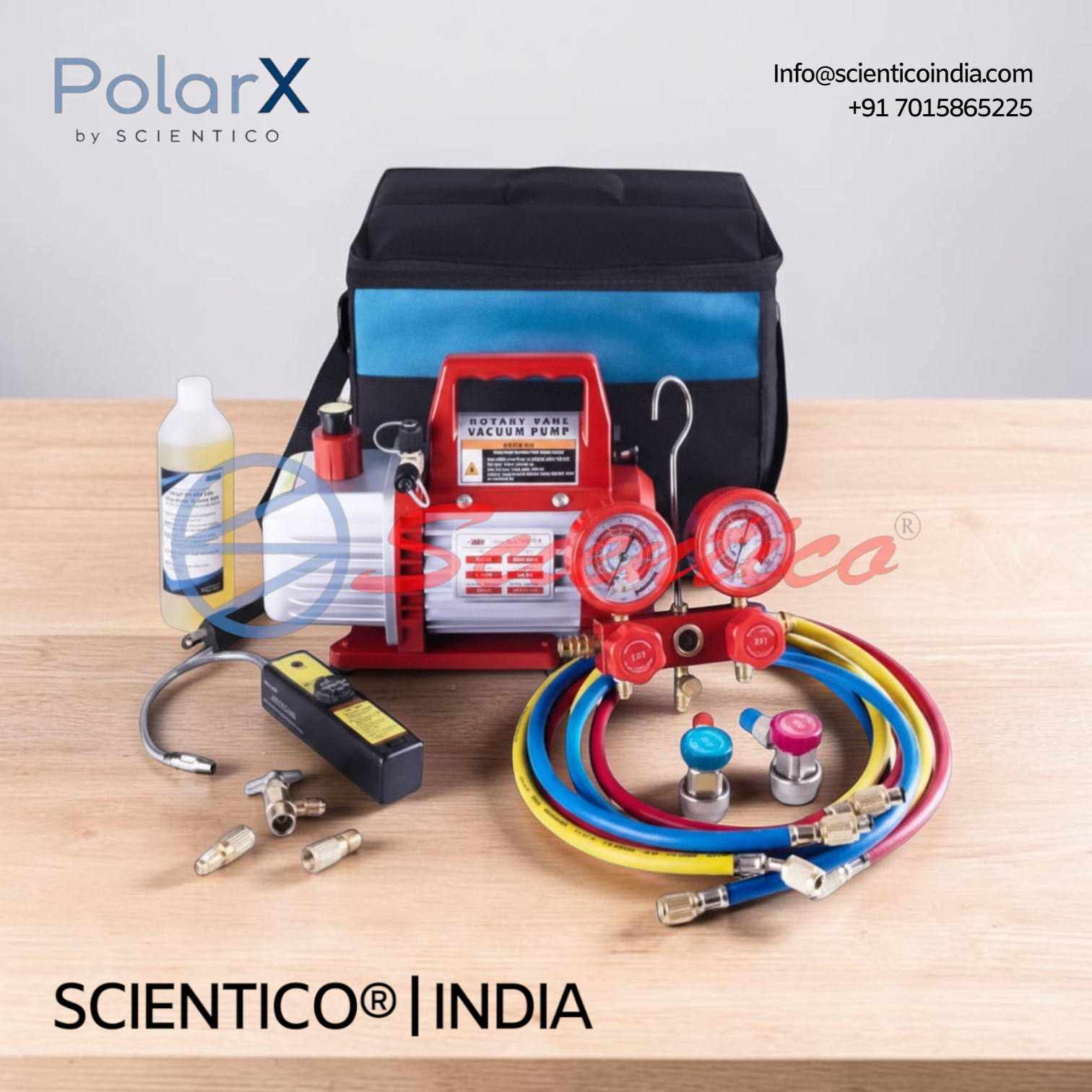

The Maintenance Kit PolarX – 596 is a complete refrigeration maintenance set for filling, evacuating, and leak-testing R134A refrigeration systems. This maintenance kit includes a filling station with vacuum pump, filling balance, and hoses, a 1,000 g filling cylinder, manometers for low side (-1 to 10 bar), high side (-1 to 30 bar), and cylinder pressure (-1 to 25 bar), a vacuum meter (0 to 1,000 mbar), two temperature ranges (-60°C to 40°C and -60°C to 85°C), a battery-operated leak detector, a digital multimeter, and hand tool sets for ring spanners, screwdrivers, and Allen keys. Experiments cover system filling, evacuation, leak detection, and primary and secondary controller setting.
The Maintenance Kit PolarX – 596 is a complete refrigeration maintenance set for filling, evacuating, leak detection, and troubleshooting refrigeration systems using refrigerant R134A. This maintenance kit includes a filling station with vacuum pump and filling balance, a battery-operated leak detector, a digital multimeter, manometers for intake, high pressure, and cylinder pressure, a vacuum meter, and a full set of hand tools. All components are common to refrigeration practice, providing direct hands-on exposure to real-world maintenance procedures.
Product Overview
The PolarX – 596 is designed for maintenance tasks and troubleshooting on refrigeration systems. The filling station handles both filling and evacuation of the refrigeration circuit. A vacuum pump removes air and humidity from the system before refrigerant is introduced. The correct refrigerant charge is monitored using the filling balance. The filling cylinder has a capacity of 1,000 g. The equipment is designed for use with refrigerant R134A.
Pressure measurement is covered by manometers for intake pressure, high pressure, and cylinder pressure. The low side pressure manometer covers -1 to 10 bar. The high side pressure manometer covers -1 to 30 bar. The cylinder manometer covers -1 to 25 bar. The vacuum meter covers 0 to 1,000 mbar. Two temperature measurement ranges are provided: -60°C to 40°C and -60°C to 85°C. A battery-operated leak detector identifies refrigerant leaks in the system. A digital multimeter is included for electrical measurements during troubleshooting. A full hand tool set covers ring spanners, straight screwdrivers, and Allen keys.
This maintenance kit supports three structured practical tasks: filling a refrigeration system, evacuating a refrigeration system, and leak detection, as well as setting of primary and secondary controllers.
Maintenance Kit PolarX – 596 — Technical Specifications
| Parameter | Value |
|---|---|
| Model | PolarX – 596 |
| Refrigerant | R134A |
| Filling Cylinder Capacity | 1,000 g |
| Low Side Pressure Range | -1 to 10 bar |
| High Side Pressure Range | -1 to 30 bar |
| Cylinder Pressure Range | -1 to 25 bar |
| Vacuum Range | 0 to 1,000 mbar |
| Temperature Range 1 | -60°C to 40°C |
| Temperature Range 2 | -60°C to 85°C |
| Leak Detector | Battery-operated |
| Multimeter | Digital |
| Scope of Delivery | 1 filling station with hoses, 1 set of ring spanners, 1 set of straight screwdrivers, 1 set of Allen keys, 1 multimeter, 1 leak detector |
Technical Data
Filling Station
| Parameter | Value |
|---|---|
| Refrigerant Compatibility | R134A |
| Filling Cylinder Capacity | 1,000 g |
| Function | Filling and evacuation of refrigeration systems |
| Vacuum Pump | Included, removes air and humidity from refrigeration circuit |
| Filling Balance | Included, monitors correct refrigerant charge |
Measuring Ranges
| Parameter | Range |
|---|---|
| Low Side Pressure (intake) | -1 to 10 bar |
| High Side Pressure | -1 to 30 bar |
| Cylinder Pressure | -1 to 25 bar |
| Vacuum | 0 to 1,000 mbar |
| Temperature Range 1 | -60°C to 40°C |
| Temperature Range 2 | -60°C to 85°C |
Instruments
| Instrument | Type |
|---|---|
| Multimeter | Digital |
| Leak Detector | Battery-operated |
| Manometers | Intake pressure, high pressure, cylinder pressure |
| Vacuum Meter | Included |
Hand Tools
| Item | Detail |
|---|---|
| Ring Spanners | 1 set |
| Straight Screwdrivers | 1 set |
| Allen Keys | 1 set |
Key Features
- Maintenance Kit Function: Filling, evacuation, leak detection, and troubleshooting of R134A refrigeration systems
- Filling Station: Handles filling and evacuation with hoses, vacuum pump, and filling balance
- Refrigerant: Designed for R134A
- Filling Cylinder Capacity: 1,000 g
- Low Side Pressure: -1 to 10 bar
- High Side Pressure: -1 to 30 bar
- Cylinder Pressure: -1 to 25 bar
- Vacuum Range: 0 to 1,000 mbar
- Temperature Ranges: -60°C to 40°C and -60°C to 85°C
- Leak Detector: Battery-operated
- Multimeter: Digital, for electrical measurements during troubleshooting
- Hand Tools: Ring spanners, straight screwdrivers, and Allen keys, one set each
- Components: Common refrigeration industry components for direct practice relevance
Experiments
- Performing maintenance tasks on refrigeration systems
- Filling of a refrigeration system
- Evacuation of a refrigeration system
- Leak detection in refrigeration systems
- Setting of primary and secondary controllers
Construction and Design
The Maintenance Kit PolarX – 596 is assembled as a complete, practice-oriented maintenance set for R134A refrigeration systems. The filling station is the central component. It incorporates a vacuum pump for system evacuation and a filling balance for refrigerant charge monitoring, connected via hoses to the refrigeration circuit. The filling cylinder has a 1,000 g capacity. Manometers cover three pressure points: intake pressure (-1 to 10 bar), high side pressure (-1 to 30 bar), and cylinder pressure (-1 to 25 bar). A vacuum meter covers 0 to 1,000 mbar. Two temperature measurement ranges are provided: -60°C to 40°C and -60°C to 85°C.
This maintenance kit includes a battery-operated leak detector for identifying refrigerant leaks without requiring an external power source. A digital multimeter supports electrical measurements and fault-finding during troubleshooting tasks. The hand tool set consists of ring spanners, straight screwdrivers, and Allen keys, covering the fastener types commonly encountered in refrigeration system maintenance. All components in the set are standard refrigeration industry items, ensuring direct relevance to practical field tasks.
Scope of Delivery
- 1 filling station with hoses
- 1 set of ring spanners
- 1 set of straight screwdrivers
- 1 set of Allen keys
- 1 multimeter
- 1 leak detector
Q1: What refrigerant is the Maintenance Kit PolarX – 596 designed for?
The kit is designed for use with refrigerant R134A. All components, including the filling station, filling cylinder, and manometers, are selected and rated for R134A systems.
Q2: What is the capacity of the filling cylinder included in the PolarX – 596?
The filling cylinder has a capacity of 1,000 g. The correct refrigerant charge during filling is monitored using the included filling balance.
Q3: What pressure ranges do the manometers cover?
Three pressure measurements are provided. The low side (intake) manometer covers -1 to 10 bar. The high side manometer covers -1 to 30 bar. The cylinder manometer covers -1 to 25 bar. A vacuum meter covers 0 to 1,000 mbar.
Q4: How does the vacuum pump function in the evacuation process?
The vacuum pump removes air and humidity from the refrigeration system before refrigerant is introduced. Evacuation is a required step before filling to ensure the system is free of non-condensables and moisture.
Q5: What tools and instruments are included in this maintenance kit?
The kit includes a digital multimeter, a battery-operated leak detector, one set of ring spanners, one set of straight screwdrivers, and one set of Allen keys, alongside the filling station with hoses, vacuum pump, filling balance, manometers, and vacuum meter.
