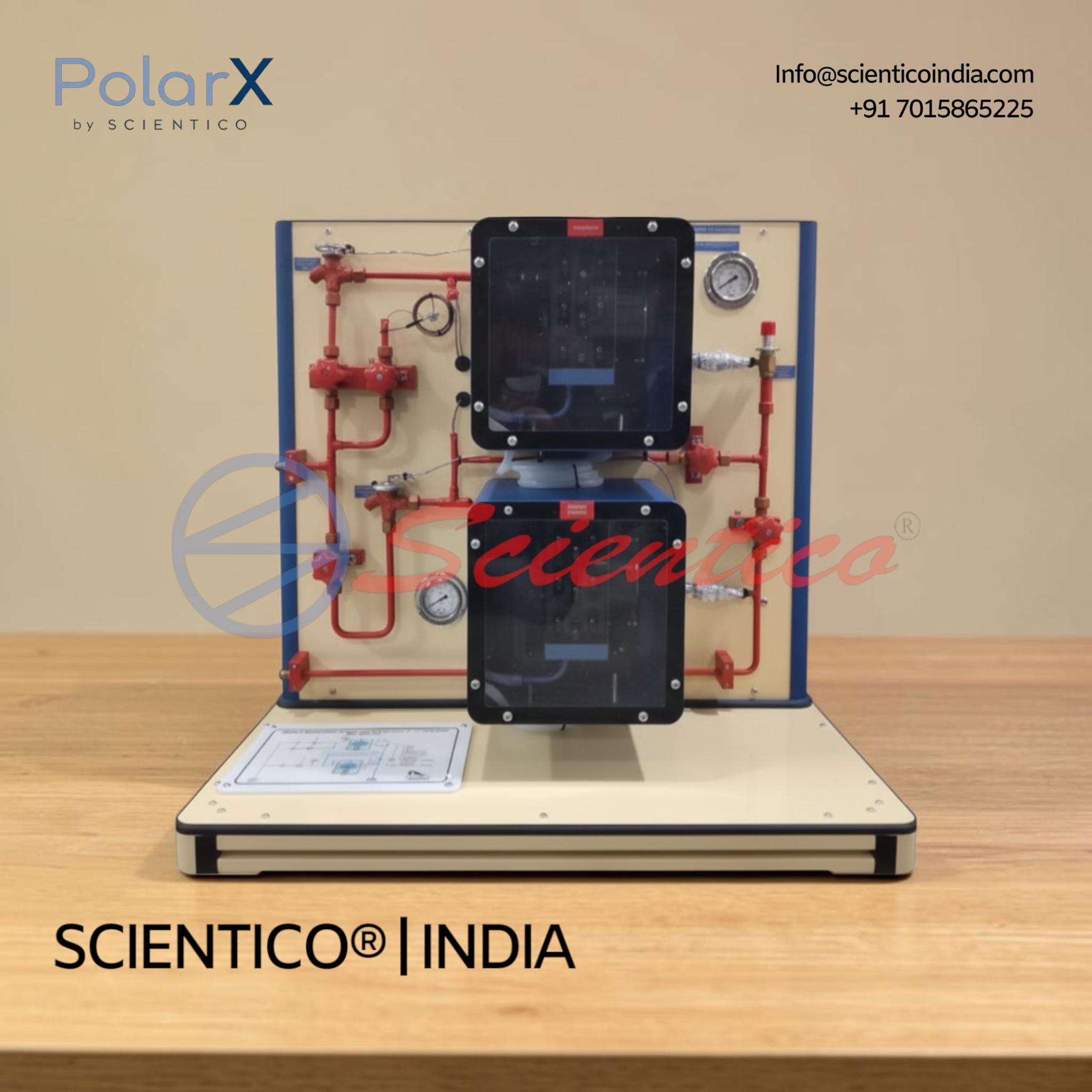

Model of a Refrigeration System with Refrigeration and Freezing Stage | PolarX – 592
The Model of a Refrigeration System with Refrigeration and Freezing Stage PolarX – 592 forms a complete dual-stage refrigeration system when combined with its base unit, sold separately. This Model of a Refrigeration System with Refrigeration and Freezing Stage features two transparent chambers (265x265x265mm each), configurable evaporators in series or parallel, and an adjustable evaporation pressure controller (0~6bar). Expansion options include a thermostatic expansion valve, capillary tube (1.6~2.2m), and bypass valve, with 5 manual service valves for mode configuration. Sensors monitor temperature (6x, -100~400°C) and pressure (2x, -1~15bar), with optional software enabling fault simulation and real-time p-h diagram tracking.
The Model of a Refrigeration System with Refrigeration and Freezing Stage PolarX – 592 is a component of the Hardware/Software Integration (HSI) training system for refrigeration and air conditioning technology. When combined with the base unit PolarX – 592, sold separately, this Model of a Refrigeration System with Refrigeration and Freezing Stage forms a complete refrigeration system that includes both refrigeration and freezing stages.
Product Overview The module attaches securely to the base unit using fasteners and connects with refrigerant hoses to create a full refrigeration circuit. In systems that combine refrigeration and freezing, evaporators are typically connected in parallel. For increased cooling capacity, evaporators can be linked in series, allowing for different pressure levels and temperature ranges suited to either refrigeration or freezing.
The module features two distinct refrigeration chambers, each with its own evaporator and expansion elements. The evaporators can be configured to operate either in series or in parallel. Two fans within the chambers ensure consistent temperature distribution, and heaters can be used to simulate additional cooling loads. One chamber can be equipped with either an expansion valve or a capillary tube as the expansion element. Various operational modes are controlled via solenoid valves. An evaporation pressure controller allows independent temperature adjustments in the upper chamber during parallel operation. All components are clearly organized on a panel.
Individual system components such as temperature control, fans, heaters, compressors, and solenoid valves can be managed through the software provided with the base unit PolarX – 592 (optional). The software also includes features for fault simulation. Sensors track and display temperatures and pressures in real time, and changes in parameters can be monitored online via the p-h diagram.
Model of a Refrigeration System with Refrigeration and Freezing Stage PolarX – 592 — Technical Specifications
| Component | Type / Detail |
|---|---|
| System Integration | Model of a refrigeration system designed to plug into the base unit (PolarX – 592), sold separately |
| Chamber Configuration | Each chamber features evaporator with fan for air circulation and heater to simulate cooling loads |
| Chamber Front | Transparent |
| Pressure Control | Adjustable evaporation pressure controller |
| Expansion Elements | Selectable expansion valve or capillary tube |
| Training Technology | Hardware/Software Integration (HSI) technology |
| Operating Modes | Configured using 5 manual service valves |
| Sensors | Record temperature and pressure |
| Software Control | Solenoid valves, fans, heaters, and fault conditions managed through software |
| Software Connectivity | Control functions and data acquisition via USB on Windows 10 (optional) |
| Software Package | Educational content, data acquisition, system operation, available with base unit PolarX – 592 (optional) |
Technical Data
Refrigeration Chamber
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 265x265x265mm |
| Electric PTC Heater (cooling load) | 150W |
| Expansion Valve | Thermostatic |
| Capillary Tube Length | 1.6~2.2m |
| Evaporation Pressure Controller | 0~6bar |
| Valve Selection | Separate valves to operate expansion valve or capillary tube |
| Fan | For air circulation |
Freezing Chamber
| Parameter | Value |
|---|---|
| Dimensions (L x W x H) | 265x265x265mm |
| Electric PTC Heater (cooling load) | 150W |
| Expansion Valve | Thermostatic |
| Bypass Valve | Included |
| Fan | For air circulation |
Measuring Ranges
| Parameter | Value |
|---|---|
| Temperature | 6x -100~400°C |
| Pressure | 2x -1~15bar |
Key Features
- System Type: Model of a Refrigeration System with Refrigeration and Freezing Stage for HSI training
- Base Compatibility: Plugs onto base unit PolarX – 592, sold separately
- Dual Chambers: Two refrigeration chambers, each with independent evaporator and expansion elements
- Evaporator Configuration: Series or parallel operation
- Pressure Control: Adjustable evaporation pressure controller, 0~6bar
- Expansion Elements: Thermostatic expansion valve, capillary tube (1.6~2.2m), and bypass valve
- Manual Control: 5 manual service valves for operating mode configuration
- Fans: 2, one per chamber, for consistent temperature distribution
- Temperature Sensors: 6x, range -100~400°C
- Pressure Sensors: 2x, range -1~15bar
Experiments
- Design and operation of a refrigeration system with two evaporators
- Series and parallel connection of two evaporators
- Familiarisation with the different expansion elements
- Operation with capillary tube
- Operation with expansion valve
- Operating behaviour under load
- Refrigeration cycle in the p-h diagram
- Effect of the evaporation pressure
- Fault simulation
Construction and Design
The Model of a Refrigeration System with Refrigeration and Freezing Stage PolarX – 592 features two distinct refrigeration chambers, each measuring 265x265x265mm with a transparent front. Each chamber includes its own evaporator, fan, and a 150W electric PTC heater to simulate cooling loads. Evaporators can be configured in series or parallel using solenoid valves. One chamber offers a choice between a thermostatic expansion valve and a capillary tube (1.6~2.2m), while the freezing chamber uses a thermostatic expansion valve with a bypass valve. An evaporation pressure controller (0~6bar) allows independent temperature adjustment in the upper chamber during parallel operation. Operating modes are configured using 5 manual service valves, and all components are clearly organized on a panel.
Required for Operation (optional)
- Base unit for refrigeration and air conditioning training system, PolarX – 592
Scope of Delivery
- 1 module
- 1 instructional manual
Q: What does the Model of a Refrigeration System with Refrigeration and Freezing Stage PolarX – 592 demonstrate?
A: It forms a complete refrigeration system with both refrigeration and freezing stages when combined with the base unit, sold separately.
Q: How can the evaporators be configured?
A: The two evaporators can be connected in series or in parallel, allowing for different pressure levels and temperature ranges suited to refrigeration or freezing.
Q: What expansion elements are available?
A: One chamber offers a choice between a thermostatic expansion valve and a capillary tube (1.6~2.2m); the freezing chamber uses a thermostatic expansion valve with a bypass valve.
Q: How many manual service valves control the operating modes?
A: 5 manual service valves configure the system’s operating modes.
Q: What is the range of the evaporation pressure controller?
A: 0~6bar, allowing independent temperature adjustment in the upper chamber during parallel operation.
