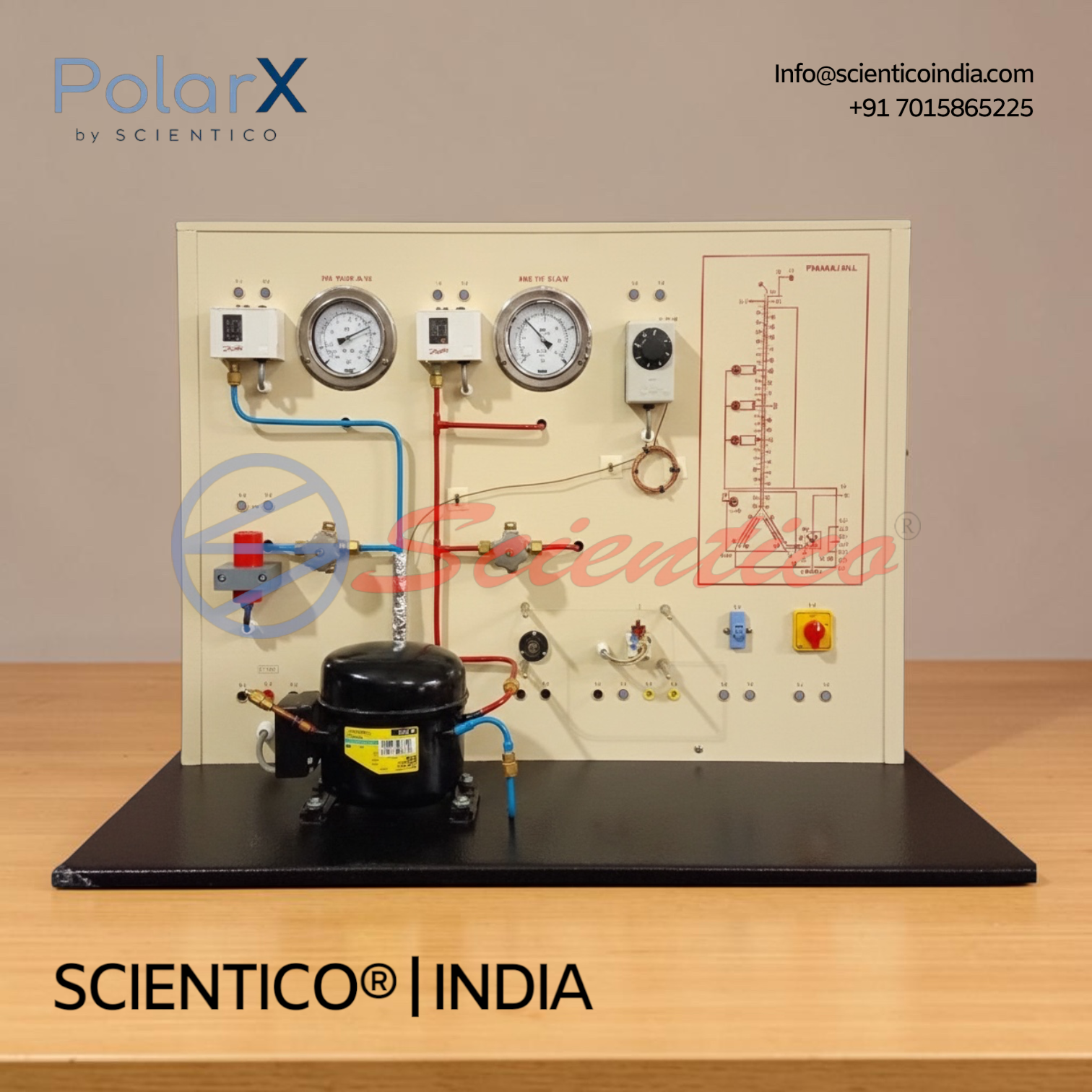

Hermetic Compressor Fault Simulator Trainer | PolarX – 548
The Hermetic Compressor Fault Simulator Trainer PolarX – 548 teaches the wiring, start-up, and safe operation of refrigerant compressors under mains voltage. This Hermetic Compressor Fault Simulator Trainer includes a refrigerant circuit with compressor, receiver, 2 valves, and 2 manometers to test pressure switches on the delivery and intake sides. Electrical components, including start-up capacitor, start-up relay, overheat protection, automatic fuse, and thermostat (range -30~30°C), are mounted clearly visible with lab jacks and cables for connection. Optional LABVIEW-based DAQ software supports automated data measurement.
The Hermetic Compressor Fault Simulator Trainer PolarX – 548 teaches the electrical connection, start-up, and operation of refrigerant compressors. This Hermetic Compressor Fault Simulator Trainer also covers essential safety considerations when working with mains voltage.
Product Overview Connecting electrical components for the start and operation of refrigerant compressors is a common task in the refrigeration industry. The IRC-1914 equipment makes it possible to learn these concepts and skills. All components are operated and tested with mains voltage to ensure high practical relevance.
The electrical parts required to start and run the refrigerant compressor are organized for easy visibility. The electrical connection of individual components is made with cables via lab jacks. The capacitor and start-up relay, for example, are components required to start the motor. The front panel’s circuit schematic makes it simple to allocate the various parts.
The pressure switches on the intake and delivery sides of the compressor can be checked using the refrigeration circuit with the compressor and receiver. Valves are used to set the pressure, and a pressure switch is tripped. Two manometers make it possible to monitor the pressure curve. If one of the pressure switches trips, the compressor’s current supply is cut off. Other standard safety chain parts, such as automatic fuses and circuit breakers, are also wired and checked as part of this Hermetic Compressor Fault Simulator Trainer.
Hermetic Compressor Fault Simulator Trainer PolarX – 548 — Technical Specifications
| Component | Type / Detail |
|---|---|
| Compressor Circuit | Refrigerant circuit with compressor, receiver, 2 valves, 2 manometers |
| Electrical Components | Start-up capacitor, start-up relay, overheat protection, automatic fuse, pressure switch, thermostat |
| Control Panel | Test point pins provided with simplicity, installed on same panel as compressor and pressure gauges |
| Connections | Lab jacks and cables for electrical component connection |
| Front Panel | Circuit diagram displayed for easy component identification |
| Refrigerant | R134a, CFC-free |
Technical Data
Refrigerant Compressor
| Parameter | Value |
|---|---|
| Power Consumption | approx. 165W |
| Receiver | 0.8L |
| Suction Side (low pressure gauge) | -1~16bar |
| Delivery Side (high pressure gauge) | -1~25bar |
Electrical Components for the Compressor
| Component | Detail |
|---|---|
| Start-up Capacitor | Included |
| Start-up Relay | Included |
| Overheat Protection | Bimetallic |
| Automatic Fuse | Included |
| Thermostat Range | -30~30°C |
Pressure Safety Switch
| Side | Value |
|---|---|
| Delivery Side | Not specified |
| Suction Side | Not specified |
Key Features
- Training Focus: Hermetic Compressor Fault Simulator Trainer for wiring, testing, and safety of refrigerant compressors
- Reference Code: IRC-1914 equipment
- Component Visibility: Electrical parts clearly organized and visible
- Connections: Lab jacks and cables for component wiring
- Control Panel: Test point pins with circuit diagram on front panel
- Refrigerant Circuit: Compressor, receiver, 2 valves, 2 manometers for pressure switch testing
- Compressor Power Consumption: approx. 165W
- Receiver Capacity: 0.8L
- Thermostat Range: -30~30°C
- Refrigerant: R134a, CFC-free
- Safety Chain Testing: Automatic fuses and circuit breakers wired and checked
Experiments
- Read, understand, wire and test electric circuit diagrams for refrigerant compressors
- Safety aspects when handling mains voltage
- Design and testing of a safety chain
- Design and operation of electrical components of refrigerant compressors: start-up capacitor, start-up relay, overheat protection, automatic fuse, pressure switch, thermostat
- Representation methods in electrical engineering: symbols, circuit diagrams
- Correct electrical connection of a refrigerant compressor
- Operation of a thermostat
Construction and Design
The Hermetic Compressor Fault Simulator Trainer PolarX – 548 features a control panel with test point pins, installed with simplicity on the same panel as the compressor and pressure gauges. The refrigerant circuit includes a compressor, receiver, 2 valves, and 2 manometers to investigate pressure switches on the delivery and intake sides. Electrical components for compressor start and operation are mounted clearly visible. Lab jacks and cables connect the electrical components. A circuit diagram is displayed on the front panel for easy identification of components. The unit operates on R134a refrigerant, which is CFC-free.
Software
PolarX – 548 (optional). A DAQ software package, specially designed in National Instruments LABVIEW environment, measures and calculates the results of the apparatus. The software is optional. When the software is used, a set of electronic sensors is included. The software can be run on any Windows environment.
Scope of Delivery
- 1 experimental module
- 1 set of cables
- 1 instruction manual
Q: What does the Hermetic Compressor Fault Simulator Trainer PolarX – 548 teach?
A: It teaches how to read, understand, wire, and test electric circuit diagrams for refrigerant compressors, along with safety aspects of handling mains voltage.
Q: What electrical components are covered?
A: Start-up capacitor, start-up relay, overheat protection, automatic fuse, pressure switch, and thermostat.
Q: How are pressure switches tested on this unit?
A: The refrigerant circuit includes a compressor, receiver, 2 valves, and 2 manometers, allowing pressure switches on the delivery and intake sides to be tested and monitored.
Q: What happens when a pressure switch trips?
A: The compressor’s current supply is cut off.
Q: Is the DAQ software required to operate the trainer?
A: No. The PolarX – 548 software is optional, and a set of electronic sensors is included when the software is used.
