Refrigeration System (Refrigeration & Freezing Chamber) | PolarX – 524
The Refrigeration System (Refrigeration & Freezing Chamber) PolarX – 524 is a trainer that arranges the components of a refrigeration circuit with refrigeration and freezing chambers clearly for structured study. It features a compressor, condenser, 2 evaporators, a thermostatic expansion valve, and an evaporation pressure controller, with valves enabling individual or parallel chamber operation. A heat exchanger supercools the refrigerant to increase efficiency, while an electric defrost heater defrosts the freezing chamber. This refrigeration system (refrigeration & freezing chamber) uses R134a, CFC-free refrigerant, and supports optional DAQ data transmission with log p-h diagram visualization.
Identifying faults in refrigeration systems requires comprehensive knowledge of the design and purpose of individual components. The Refrigeration System (Refrigeration & Freezing Chamber) PolarX – 524 trainer helps build this knowledge. Components of a refrigeration circuit with refrigeration and freezing chambers are arranged clearly in the trainer for structured study.
Product Overview
Valves enable individual or parallel operation of the evaporators in the two chambers. The circuit is equipped with a pressure switch for the delivery and intake side of the compressor. The refrigeration chamber features an evaporation pressure controller, and the effect of this controller on the overall process can be examined.
An inner heat exchanger at the inlet of the two evaporators supercools the refrigerant to increase process efficiency. At the same time, the intake gas is superheated. An electric defrost heater is available to defrost the freezing chamber.
A process schematic on the trainer offers a quick overview, with signal lamps indicating the operating state of selected components. Relevant measured values are captured by sensors and read on digital displays. Optionally, the measured values can also be transmitted directly to a PC via DAQ; the data acquisition software is optional. The most important pressures are additionally indicated with manometers directly at the trainer. This Refrigeration System (Refrigeration & Freezing Chamber) also enables the cyclic process to be represented in the log p-h diagram through its software.

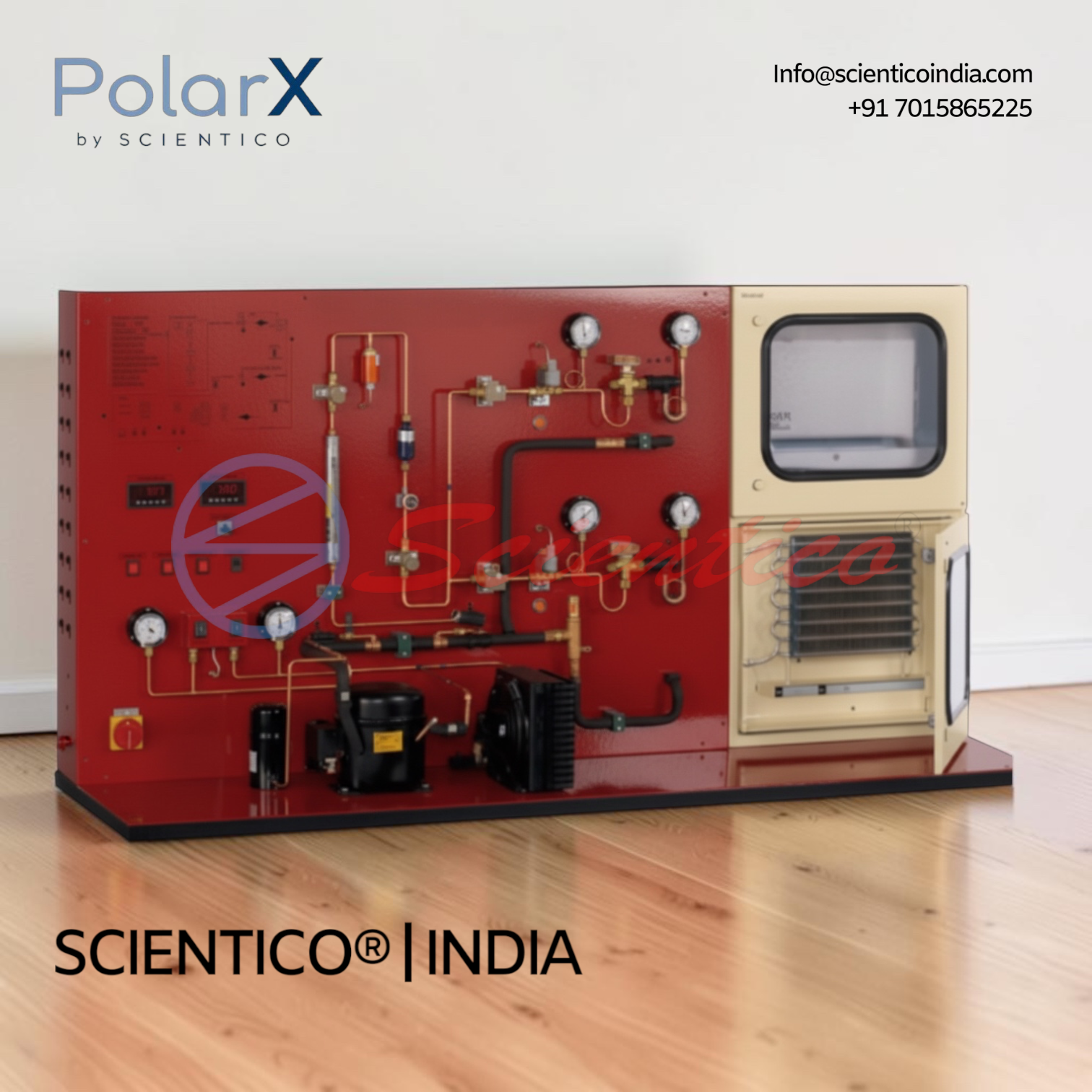

Refrigeration System (Refrigeration & Freezing Chamber) PolarX – 524 — Technical Specifications
| Specification | Detail |
|---|---|
| System Investigation | Investigation of a refrigeration system with refrigeration and freezing chambers |
| Circuit Configuration | Compressor, condenser and 2 evaporators with thermostatic expansion valve and evaporation pressure controller |
| Freezing Chamber | Insulated, with fan and electric defrost heater |
| Refrigeration Chamber | Insulated, with evaporation pressure controller |
| Supercooling | Heat exchanger for refrigerant supercooling |
| Chamber Operation | Individual or parallel operation of the chambers via valves |
| Refrigerant | R134a, CFC-free |
Technical Data
Compressor
| Parameter | Value |
|---|---|
| Power Consumption | Approx. 491W at 5/40°C |
| Refrigeration Capacity | 1104W at 5/40°C |
Measuring Ranges
| Parameter | Value |
|---|---|
| Temperature | 12x -50°C to 120°C |
| Pressure | 1x -1 to 15 bar, 3x -1 to 9 bar, 3x 1 to 24 bar |
| Power | 0 to 1125W |
| Flow Rate | 1.5 to 25 L/h |
Condenser with Fan
| Parameter | Value |
|---|---|
| Volumetric Air Flow Rate | 290 m³/h |
| Transfer Area | 1.5 m² |
Refrigeration Chamber
| Parameter | Value |
|---|---|
| Evaporator Transfer Area | 1.06 m² |
Freezing Chamber
| Parameter | Value |
|---|---|
| Evaporator Transfer Area | 2.42 m² |
| Volumetric Air Flow Rate, Fan | 135 m³/h |
| Electric Defrost Heater | Approx. 150W |
| Evaporation Pressure Controller | 0 to 5.5 bar |
Key Features
- Component Layout: Refrigeration and freezing chamber components arranged clearly in trainer
- Chamber Operation: Valves enable individual or parallel operation of two evaporators
- Pressure Switch: Protects delivery and intake side of compressor
- Evaporation Pressure Controller: Fitted to refrigeration chamber, effect on process examined
- Refrigerant Supercooling: Inner heat exchanger at inlet of two evaporators, increases process efficiency
- Intake Gas Superheating: Occurs simultaneously with supercooling
- Defrosting: Electric defrost heater for freezing chamber, approx. 150W
- Process Schematic: Quick overview with signal lamps showing operating state
- Measurement: Sensors record relevant values, readable on digital displays
- Data Transmission: Optional DAQ transmission of measured values to PC
- Pressure Display: Manometers directly at trainer for key pressures
- Software Visualization: Cyclic process represented in log p-h diagram (optional)
- Trainer Application: Refrigeration System (Refrigeration & Freezing Chamber) supports fault finding in refrigeration system components
Experiments
- Design and components of a refrigeration system with 2 evaporators
- Components and their functions:
- Compressor, condenser, evaporator
- Thermostatic expansion valve
- Evaporation pressure controller
- Pressure switch
- Electric defrost heater
- Thermodynamics of the refrigeration cycle:
- Effect of refrigerant supercooling
- Representation of the thermodynamic cycle in the log p-h diagram
- Determination of important characteristic variables
- Coefficient of performance
- Refrigeration capacity
- Compressor work
- Fault finding in refrigeration system components
Construction and Design
The Refrigeration System (Refrigeration & Freezing Chamber) PolarX – 524 is built around a refrigeration circuit with a compressor, condenser, and 2 evaporators, fitted with a thermostatic expansion valve and an evaporation pressure controller. The freezing chamber is insulated and includes a fan and an electric defrost heater. The refrigeration chamber is insulated and includes an evaporation pressure controller. A heat exchanger is fitted for refrigerant supercooling at the inlet of the two evaporators. Valves allow individual or parallel operation of the two chambers. The circuit uses R134a, a CFC-free refrigerant. A pressure switch is fitted on the delivery and intake side of the compressor. The trainer includes a process schematic with signal lamps to indicate the operating state of selected components, along with manometers for direct pressure readings.
Software
Software PolarX – 524 (optional)
DAQ software designed in National Instruments™ LabVIEW™ environment to measure and calculate the results of the apparatus. The software is optional. When the software is used, a set of electronic sensors is included. The software can be run on any Windows™ environment.
Scope of Delivery
- 1 Experimental module
- 1 Instruction manual
Optional Accessories
- Software PolarX – 524 (DAQ software, National Instruments™ LabVIEW™ environment, requires electronic sensor set)
- DAQ transmission of measured values directly to PC
- Representation of the cyclic process in the log p-h diagram (software feature)
Q: What does the Refrigeration System (Refrigeration & Freezing Chamber) PolarX – 524 demonstrate?
A: It demonstrates the design, components, and fault finding of a refrigeration system with refrigeration and freezing chambers, including 2 evaporators.
Q: Can the two chambers be operated independently?
A: Yes, valves enable individual or parallel operation of the evaporators in the two chambers.
Q: What refrigerant does the unit use?
A: R134a, which is CFC-free.
Q: How is the freezing chamber defrosted?
A: An electric defrost heater, approx. 150W, is available to defrost the freezing chamber.
Q: Is the PolarX – 524 software required to operate the unit?
A: No, the software is optional. A set of electronic sensors is included when the software is used.
