Base unit for Refrigeration & Air Conditioning Training System | PolarX – 584

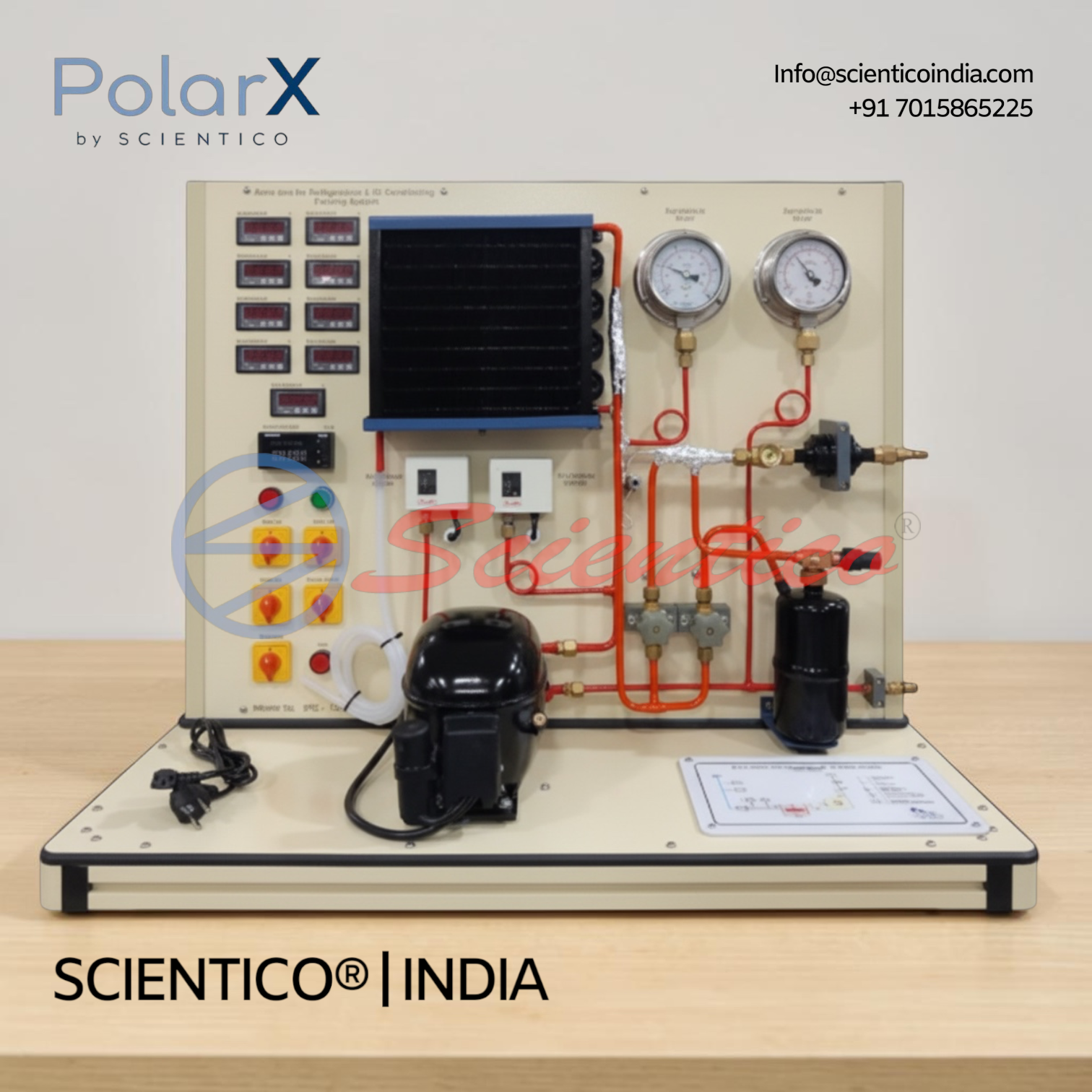

The Base unit for Refrigeration & Air Conditioning Training System PolarX – 584 extends into a full refrigeration circuit using various available models, including refrigerator, freezing-stage refrigeration, and air conditioning modules. This Base unit for Refrigeration & Air Conditioning Training System features a hermetically sealed compressor (470W capacity, 280W consumption), forced air condenser, and 0.7L liquid receiver, monitored by 3 temperature sensors and pressure sensors on intake (-1~15bar) and delivery (-1~25bar) sides. Advanced software connects via USB or LAN for real-time data acquisition, system operation, and educational analysis. Electronic high and low pressure switches provide safety protection.
The Base unit for Refrigeration & Air Conditioning Training System PolarX – 584 can be extended into a full refrigeration circuit depending on the experiment’s objectives. This Base unit for Refrigeration & Air Conditioning Training System supports various available models, including the refrigerator module, a refrigeration system with both cooling and freezing stages, or an air conditioning module.
Product Overview Key components of this training system include the compressor, condenser, receiver, and both electrical and communication systems. The models attach to the base unit and connect hydraulically through refrigerant hoses and electrically with cables. Self-sealing couplings minimize refrigerant loss, and the components are arranged to be clearly visible for monitoring their operation.
The system includes advanced software integrated with the hardware for ease of experimentation and analysis. The experimental unit connects to a PC via USB or LAN. The software includes a system operation and data acquisition program, as well as educational software that aids understanding with explanations and illustrations. Each model has a specific software module tailored to its learning objectives, and teachers can create additional exercises using an authoring system.
Sensors measure temperatures and pressures, which the software displays in real-time for both system operation and data acquisition. The software provides precise data on the refrigerant’s condition, allowing for accurate calculations of refrigerant mass flow rate. This method of calculation is more precise than traditional measurement techniques. The software also tracks the effects of parameter changes in a log p-h diagram and optionally allows system operation through the software.
Base unit for Refrigeration & Air Conditioning Training System PolarX – 584 — Technical Specifications
| Component | Type / Detail |
|---|---|
| System Function | Basic experiments on refrigeration and air conditioning systems via integration with various models |
| HSI Technology | Available as an optional feature |
| Condensing Unit | Compressor, condenser, receiver |
| Model Connection | Refrigerant hoses between condensing unit and models |
| Model Attachment | Firmly attached to the trainer using fasteners |
| Manometer | Includes a temperature scale |
| Mass Flow Rate Calculation | Accurately calculated through software (optional) |
| Refrigerant | R134A (other refrigerants available on demand) |
| System Control | Managed through solenoid valves and software (optional) |
| Software Functions | Educational content, data acquisition, system operation (optional) |
Technical Data
Compressor
| Parameter | Value |
|---|---|
| Type | Hermetically sealed |
| Refrigeration Capacity | 470W |
| Power Consumption | 280W |
Liquid Receiver
| Parameter | Value |
|---|---|
| Capacity | 0.7L |
Additional Components
| Component | Detail |
|---|---|
| Filter Dryer & Sight Glass | Included |
| Bypass Valves | Included |
Refrigerant
| Parameter | Value |
|---|---|
| Type | R134A (other refrigerants available on demand) |
Condenser
| Parameter | Value |
|---|---|
| Type | Forced air |
Power Analyzer
| Parameter | Value |
|---|---|
| Function | Shows power, voltage, and current consumed by compressor |
Measuring Ranges – Temperature
| Parameter | Value |
|---|---|
| Sensors | 3x -100~400°C |
Measuring Ranges – Pressure
| Parameter | Value |
|---|---|
| Intake Side | 1x -1~15bar |
| Delivery Side | 2x -1~25bar |
Safety
| Component | Detail |
|---|---|
| Electronic High Pressure Switch | Included |
| Electronic Low Pressure Switch | Included |
Key Features
- System Type: Base unit for Refrigeration & Air Conditioning Training System, extendable with multiple modules
- Compressor: Hermetically sealed, 470W refrigeration capacity, 280W power consumption
- Condenser: Forced air type
- Liquid Receiver: 0.7L capacity
- Connectivity: PC connection via USB or LAN, self-sealing refrigerant hose couplings
- Software: System operation, data acquisition, and educational modules with authoring system
- Temperature Sensors: 3x, range -100~400°C
- Pressure Sensors: 1x intake side (-1~15bar), 2x delivery side (-1~25bar)
- Safety Features: Electronic high pressure switch and electronic low pressure switch
- Refrigerant: R134A, other refrigerants available on demand
- Power Analyzer: Displays power, voltage, and current consumed by compressor
Experiments
- Fundamentals of the refrigeration cycle (in conjunction with its different modules)
- Fundamentals of air conditioning
- Components in a refrigeration system/air conditioning system
- System operation
- Fault finding
Construction and Design
The Base unit for Refrigeration & Air Conditioning Training System PolarX – 584 integrates a condensing unit containing the compressor, condenser, and receiver as its core components. Models attach to the base unit using fasteners and connect hydraulically through refrigerant hoses with self-sealing couplings, and electrically via cables. All components are arranged for clear visibility during operation monitoring. A manometer with an integrated temperature scale supports refrigerant condition readings. Electronic high pressure and low pressure switches provide safety protection. The system connects to a PC via USB or LAN for real-time software-based monitoring and analysis.
Software
PolarX – 584 (optional). A DAQ software package, specially designed in National Instruments LABVIEW environment, measures and calculates the results of the apparatus. The software is optional. When the software is used, a set of electronic sensors is included. The software can be run on any Windows environment.
Recommended Accessories (optional)
- Refrigerator Model, PolarX – 588
- Model of a Refrigeration System with Refrigeration and Freezing Stage, PolarX – 592
- Maintenance Kit, PolarX – 596
Scope of Delivery
- 1 Base Unit
- 1 instructional manual
Q: Can the Base unit for Refrigeration & Air Conditioning Training System PolarX – 584 be expanded?
A: Yes. It can be extended into a full refrigeration circuit using various available models, including the refrigerator module, a refrigeration system with cooling and freezing stages, or an air conditioning module.
Q: How do the models connect to the base unit?
A: Models attach using fasteners and connect hydraulically through refrigerant hoses with self-sealing couplings, and electrically with cables.
Q: What safety features are included?
A: An electronic high pressure switch and an electronic low pressure switch.
Q: How does the software calculate refrigerant mass flow rate?
A: The software uses precise data on the refrigerant’s condition to calculate mass flow rate, a method more precise than traditional measurement techniques.
Q: Is the DAQ software required to operate the base unit?
A: No. The PolarX – 584 software is optional, and a set of electronic sensors is included when the software is used.
