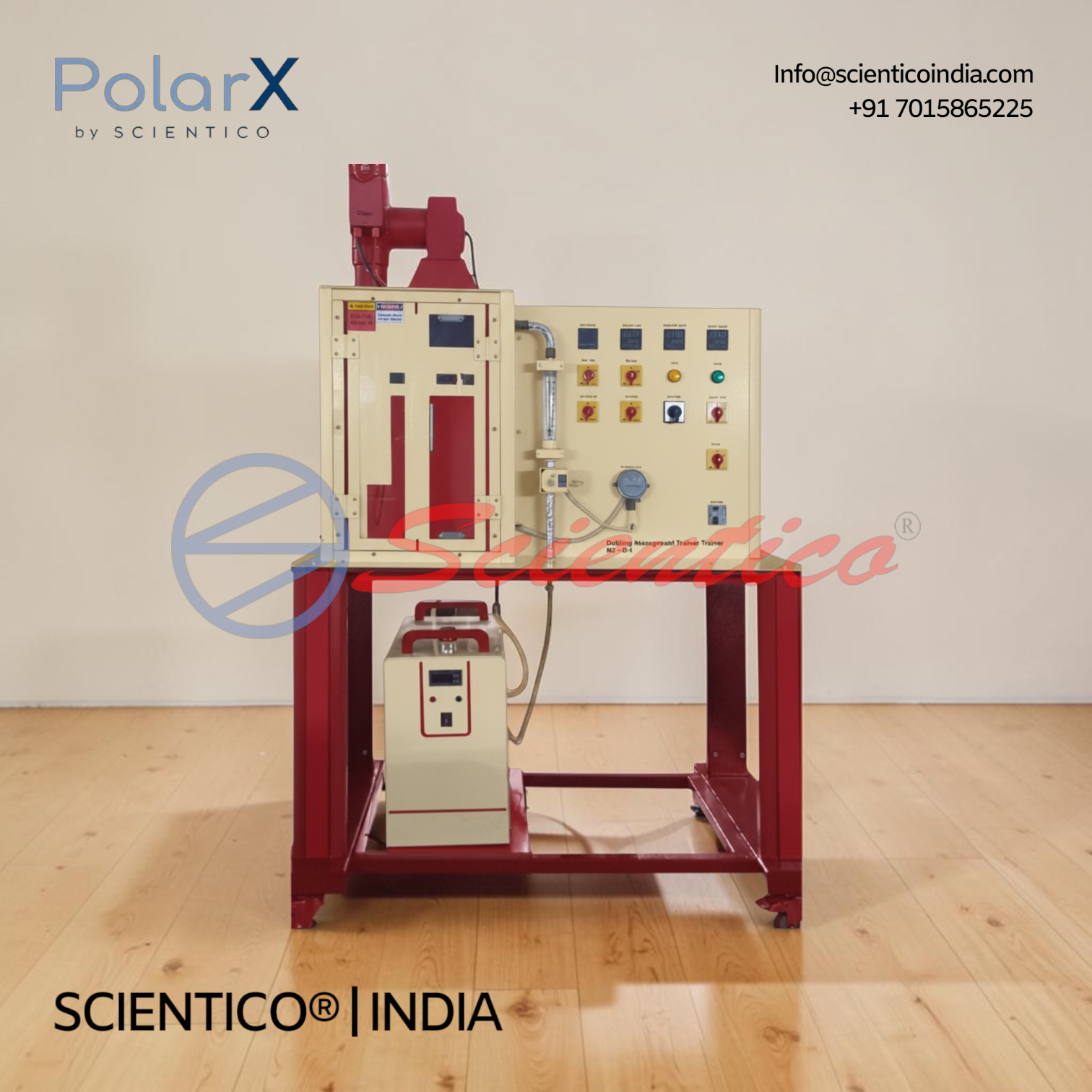

Building Management System Trainer | PolarX – 568
The Building Management System Trainer PolarX – 568 is a small lab scale model for studying intelligent building automation. This Building Management System Trainer covers climate, humidity, temperature, fluid, and pressure management using PID based digital controllers. Sensors supply input signals for temperature, humidity, pressure, and flow to an advanced intelligent controller. Simulated feedback signals, including a heater, simulated fluid flow, a humidifier, and an air blower, replace large scale physical components. The control panel is pre wired with quick connectors, and optional DAQ software (National Instrument™ LABVIEW™) is available for data measurement and calculation.
The Building Management System Trainer PolarX – 568 is a lab scale trainer built to demonstrate intelligent control of climate, humidity, pressure, and fluid flow in modern buildings. This Building Management System Trainer uses simulated feedback signals instead of large scale field devices, making it suitable for hands on laboratory experiments in building automation.
Product Overview
Modern homes, hotels, and office buildings rely on intelligent unit management to handle climate controlling, humidity controlling, temperature managements, fluid controlling for heating and cooling applications, pressure managements, and access control managements. The Building Management System Trainer PolarX – 568 replicates these functions on a small lab scale model.
Different sensors on the trainer supply input signals to an advanced intelligent controller. These signals include temperature, humidity, pressure, flow, and access control inputs. Each controller manages its output according to programmable parameters linked to the building management function.
Instead of using physical large scale components and multiple output devices, the trainer uses simulated feedback signals. A heater is used for heating. Fluid flow is simulated as cold water to the evaporator. A humidifier is used for humidity control. An air blower is used for pressure control. A range of experiments can be performed for all the applications described above.
Building Management System Trainer PolarX – 568: Technical Specifications
| Specification | Value |
|---|---|
| Product Name | Building Management System Trainer |
| Model | PolarX – 568 |
| Power Supply | 220V AC |
| Control Panel Type | Pre wired type with input and output devices installed |
| Electrical Connections | Quick connector type |
| Controller Type (all channels) | PID based digital controllers |
Technical Data
Temperature Controller
| Parameter | Value |
|---|---|
| Controller Type | PID based digital Temperature Controller |
| Output Device | Electric Heater |
| Signal Device | PT-100 RTD or K Type Thermocouple for Temperature Sensing |
Humidity Controller
| Parameter | Value |
|---|---|
| Controller Type | PID based digital Humidity Controller |
| Output Device | Ultrasonic Room Humidifier |
| Signal Device | Humidity Sensor, 0 to 100% RH, analog output to Controller |
Fluid Controller
| Parameter | Value |
|---|---|
| Controller Type | PID based digital Proportional Controller for opening and closing of flow control valve |
| Output Device | Flow Control Valve |
| Signal Device | Flow Meter / Temperature Sensor for flow regulating |
Pressure Controller
| Parameter | Value |
|---|---|
| Controller Type | PID based digital Controller |
| Output Device | Fan with damper to control the inlet damper opening |
| Feedback Signal Device | Differential Pressure Sensor in small box (room model) with analog output signal |
Control Panel
| Parameter | Value |
|---|---|
| Type | Pre wired, input and output devices pre installed |
| Connections | Quick connector for electrical connections |
| Power Supply | 220V AC |
Key Features
- Trainer Type: Building Management System Trainer, small lab scale model
- Applications Covered: Climate, humidity, temperature, fluid, pressure, and access control management
- Temperature Control: PID based digital controller, Electric Heater output
- Temperature Sensing: PT-100 RTD or K Type Thermocouple
- Humidity Control: PID based digital controller, Ultrasonic Room Humidifier output
- Humidity Sensing: 0 to 100% RH sensor, analog output
- Fluid Control: PID based digital Proportional Controller, Flow Control Valve
- Fluid Sensing: Flow Meter / Temperature Sensor
- Pressure Control: PID based digital controller, Fan with damper output
- Pressure Sensing: Differential Pressure Sensor, room model box, analog output
- Control Panel: Pre wired, quick connector electrical connections
- Power Supply: 220V AC
- Simulated Feedback Signals: Heater, simulated fluid flow (cold water to evaporator), humidifier, air blower
Experiments
Using the Building Management System Trainer PolarX – 568, experiments can be performed for the following applications:
- Climate Controlling
- Humidity Controlling
- Temperature Managements
- Fluid Controlling (for Heating & Cooling Applications)
- Pressure Managements
- Access Control Managements
Construction and Design
The Building Management System Trainer PolarX – 568 is built as a small lab scale model of a real building management system. Different sensors are fitted on the trainer to supply input signals for temperature, humidity, pressure, flow, and access control. An advanced intelligent controller processes these input signals. Each controller manages its output based on programmable parameters. Instead of physical large scale components and output devices, the trainer uses simulated feedback signals. A heater simulates the heating output. Fluid flow is simulated as cold water to the evaporator. A humidifier simulates the humidity output. An air blower simulates the pressure output. The control panel is pre wired, with all input and output devices already installed. Quick connectors are provided for electrical connections. This design makes the Building Management System Trainer compact and ready for laboratory use.
Software
Software PolarX – 568 (optional)
DAQ software specially designed in National Instrument™ LABVIEW™ environment to measure and calculate the results of the apparatus. The software is optional. A set of electronic sensors is included when the software option is used. The software can be run on any Windows™ environment.
Scope of Delivery
- 1 experimental module
- 1 instruction manual
- Software PolarX – 568 (optional)
Q1: What is the Building Management System Trainer PolarX – 568 used for?
A: It is used to demonstrate and experiment with intelligent building management functions including climate, humidity, temperature, fluid, pressure, and access control on a small lab scale model.
Q2: What type of controllers does the trainer use?
A: All controllers on the trainer, temperature, humidity, fluid, and pressure, are PID based digital controllers.
Q3: Does the trainer use real building scale components?
A: No. Instead of physical large scale components and output devices, the trainer uses simulated feedback signals such as a heater, simulated fluid flow, a humidifier, and an air blower.
Q4: Is the DAQ software included by default?
A: No. Software PolarX – 568 is optional. When the software is used, a set of electronic sensors is included.
Q5: What power supply does the trainer require?
A: The trainer operates on a 220V AC power supply.
