Commercial Refrigeration Training Unit | PolarX – 604

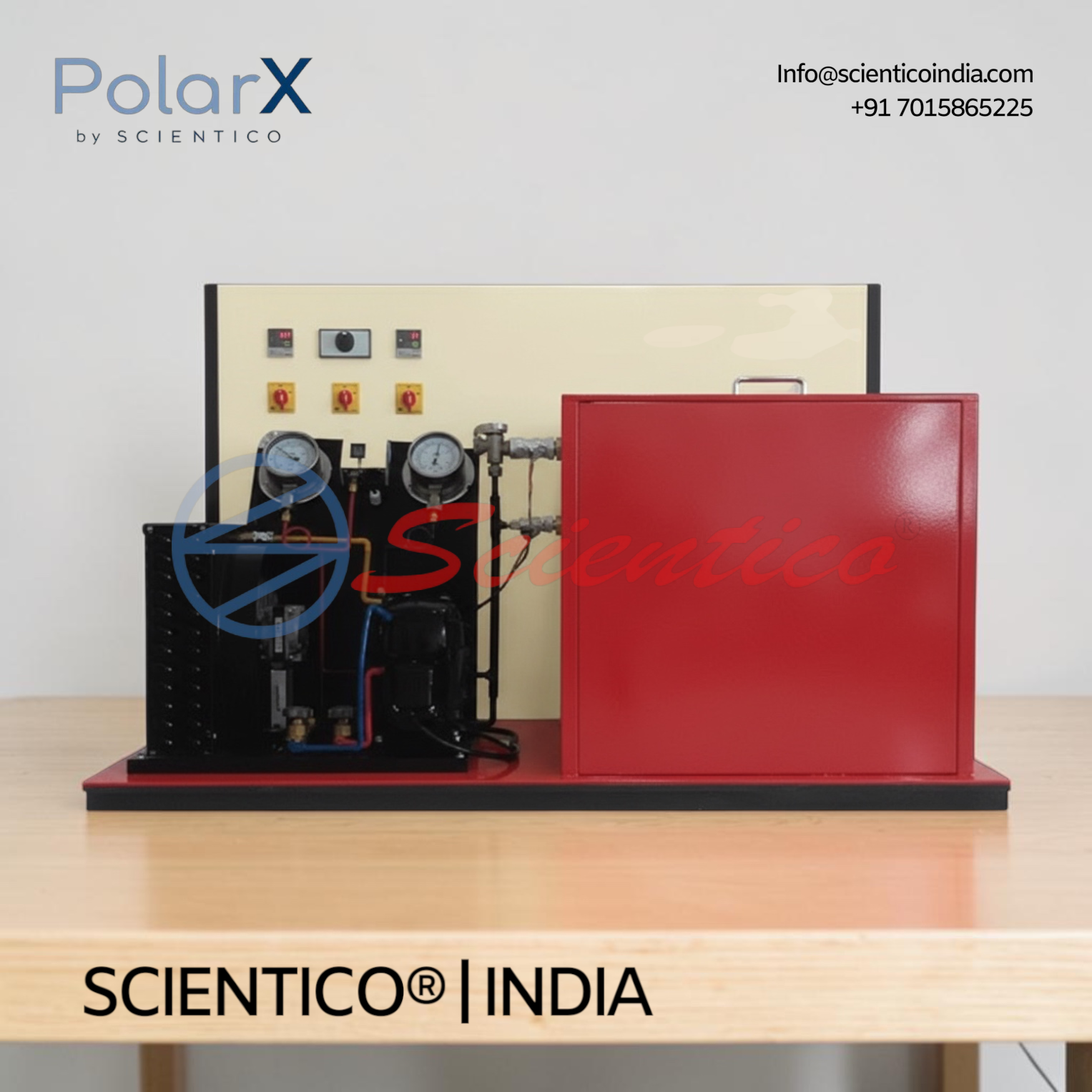

The Commercial Refrigeration Training Unit PolarX – 604 features an air-cooled condensing unit with a hermetic compressor rated for high back pressure and high starting torque. This Commercial Refrigeration Training Unit includes a forced air evaporator with 5 FPI aluminium fins, a detachable insulated hood (100-watt heat load) for thermal performance testing, and an internally equalized thermostatic expansion valve. Pressure monitoring is handled by high and low pressure switches and gauges, alongside 4 Type-k temperature sensors. Optional LABVIEW-based DAQ software supports automated data measurement.
The Commercial Refrigeration Training Unit PolarX – 604 consists of an air-cooled condensing unit with a hermetic compressor featuring high back pressure and high starting torque. This Commercial Refrigeration Training Unit is complete with suction and discharge service valves, gauge manifold connections, and an integrated motor protector.
Product Overview The forced air, blow through, powder-coated evaporator has a detachable front panel and a galvanized sheet steel case. The evaporator is a finned coil type with five fins per inch. The device contains a digital thermometer and can be thermally loaded to investigate performance. Additional components include a thermostatic expansion valve with internal equalization, a liquid line filter drier, a liquid-vapour heat exchanger, high and low pressure switches, a high pressure gauge, and a low pressure compound gauge.
The base of this Commercial Refrigeration Training Unit is made of stainless steel and is set on a steel frame. The forced air, blow through type evaporator includes a 15-watt fan motor. The powder coated galvanized sheet steel casing has a removable front panel. The evaporator coil is constructed from internally grooved copper tube and fitted with aluminium fins at 5 FPI. A detachable insulated hood provides a heat load of 100 watts, monitored by a K type thermocouple.
Commercial Refrigeration Training Unit PolarX – 604 — Technical Specifications
| Component | Type / Detail |
|---|---|
| Condensing Unit | Air-cooled, high back pressure, high starting torque hermetic compressor |
| Service Valves | Suction and Discharge Service Valves |
| Gauge Connections | Gauge Manifold Connections |
| Motor Protection | Built in Motor Protector |
| Evaporator | Forced air, blow through type, 15-watt fan motor |
| Evaporator Casing | Powder coated galvanized sheet steel, removable front panel |
| Evaporator Coil | Internally grooved copper tube, aluminium fins at 5 FPI |
| Insulated Hood | Detachable, heat load 100 watts |
| Temperature Sensing | K type thermocouple |
| Expansion Valve | Internally equalized Thermostatic Expansion Valve |
| Filter Drier | Liquid Line Filter Drier |
| Heat Exchanger | Liquid-vapour type |
| Pressure Switches | High Pressure Switch, Low Pressure Switch |
| Pressure Gauges | High Pressure gauge and low pressure compound gauge |
| Base and Frame | Stainless steel base on a steel frame |
Technical Data
Condenser
| Parameter | Value |
|---|---|
| Type | Fan Cool, Continuous Tubing and External Finned |
Temperature Sensor
| Parameter | Value |
|---|---|
| Range | -40~400°C |
| Type | Type-k |
| Total | 4 |
Refrigerant Pressure Gauges
| Parameter | Value |
|---|---|
| Suction Side (low pressure gauge) | -1~16bar |
| Delivery Side (high pressure gauge) | -1~25bar |
Digital Multifunctional Power Meter
| Parameter | Value |
|---|---|
| Range of AC Volt | 0~500 volts |
| Range of AC Ampere | 0~40 Ampere |
Pressure Safety Switch
| Side | Value |
|---|---|
| Suction Side | Not specified |
| Delivery Side | Not specified |
Key Features
- Application: Commercial Refrigeration Training Unit for hands-on refrigeration system study
- Compressor: Hermetic, high back pressure, high starting torque
- Service Valves: Suction and discharge service valves with gauge manifold connections
- Motor Protection: Built-in motor protector
- Evaporator: Forced air, blow through type, 15-watt fan motor, 5 FPI aluminium fins
- Insulated Hood: Detachable, 100-watt heat load for thermal performance testing
- Expansion Valve: Internally equalized thermostatic expansion valve
- Heat Exchanger: Liquid-vapour type for improved efficiency
- Temperature Sensors: 4 x Type-k, range -40~400°C
- Frame: Stainless steel base on steel frame
- Pressure Monitoring: High and low pressure switches with dedicated gauges
Construction and Design
The Commercial Refrigeration Training Unit PolarX – 604 uses an air-cooled condensing unit built around a hermetic compressor with high back pressure and high starting torque. The unit includes suction and discharge service valves, gauge manifold connections, and a built-in motor protector. The forced air, blow through evaporator features a powder coated galvanized sheet steel casing with a removable front panel, and its coil is constructed from internally grooved copper tube fitted with aluminium fins at 5 FPI. A detachable insulated hood applies a 100-watt heat load, monitored by a K type thermocouple. The system includes an internally equalized thermostatic expansion valve, liquid line filter drier, and liquid-vapour heat exchanger. High and low pressure switches, along with a high pressure gauge and low pressure compound gauge, provide pressure monitoring. The base is stainless steel, mounted on a steel frame.
Software
PolarX – 604 (optional). A DAQ software package, specially designed in National Instruments LABVIEW environment, measures and calculates the results of the apparatus. The software is optional. When the software is used, a set of electronic sensors is included. The software can be run on any Windows environment.
Scope of Delivery
- 1 experimental module
- 1 instruction manual
Q: What type of compressor does the Commercial Refrigeration Training Unit PolarX – 604 use?
A: A hermetic compressor with high back pressure and high starting torque, part of an air-cooled condensing unit.
Q: How is the evaporator constructed?
A: The evaporator coil is made from internally grooved copper tube fitted with aluminium fins at 5 FPI, housed in a powder coated galvanized sheet steel casing with a removable front panel.
Q: How is thermal performance tested?
A: A detachable insulated hood applies a 100-watt heat load, monitored using a K type thermocouple and digital thermometer.
Q: What pressure monitoring components are included?
A: High and low pressure switches, along with a high pressure gauge and low pressure compound gauge.
Q: Is the DAQ software required to operate the unit?
A: No. The PolarX – 604 software is optional, and a set of electronic sensors is included when the software is used.
