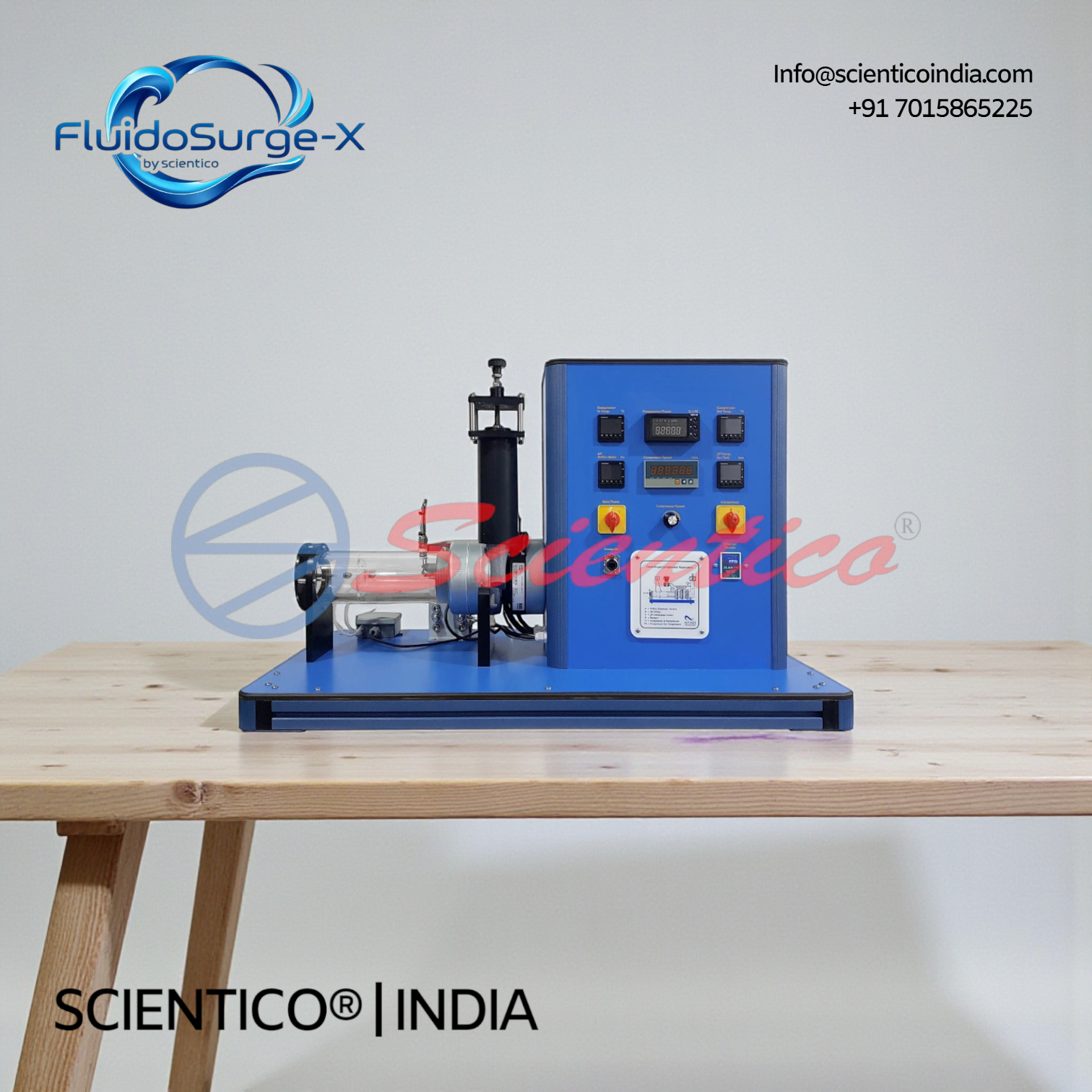

The Centrifugal Compressor Apparatus | FluidoSurge-X 260 by SCIENTICO is a laboratory system for studying centrifugal compressor performance and operating characteristics. It features a multi-stage compressor with variable speed control, transparent intake, and integrated measurement of pressure, temperature, speed, and power. The apparatus supports characteristic curve and efficiency experiments. Suitable for fluid mechanics and turbomachinery teaching laboratories.
The Centrifugal Compressor Apparatus FluidoSurge-X 260 is a laboratory system designed to study the operating behavior and performance characteristics of centrifugal compressors. Manufactured by SCIENTICO, the unit enables controlled investigation of gas compression using a multi-stage radial compressor. It is intended for instructional and experimental use in fluid mechanics and turbomachinery laboratories. Optional data acquisition software supports advanced analysis.
Product Overview
FluidoSurge-X 260 features a two or three stage centrifugal compressor driven by an electric motor with variable speed control via a frequency controller. Air is drawn axially through a transparent intake pipe and compressed radially by the rotating impeller stages. The airflow is regulated using a throttle valve located at the end of the delivery pipe. Integrated sensors measure pressure, temperature, speed, and power, while the flow rate is determined through differential pressure measurement across an intake orifice.
| Parameter | Specification |
|---|---|
| Apparatus Type | Centrifugal compressor study unit |
| Compressor Type | Two or three stage centrifugal compressor |
| Speed Control | Variable via frequency controller |
| Intake Pipe Inner Diameter | 70 mm before orifice, reduced to 50 mm after orifice |
| Delivery Pipe Inner Diameter | 50 mm |
| Orifice Diameter | 40 mm |
| Compressor Power Consumption | 1200 W |
| Speed Range | 0 to 20,000 min⁻¹ |
| Maximum Volumetric Flow Rate | 180 m³/h |
| Maximum Pressure Difference | 200 mbar |
| Differential Pressure Range (per stage) | 0 to 350 mbar |
| Temperature Measurement | 2 channels, -100 to 400 °C |
| Speed Measurement Range | 0 to 99,999 min⁻¹ |
| Electrical Power Measurement Range | 0 to 3000 W |
Key Features
-
Two or three stage centrifugal compressor for laboratory study
-
Variable speed control using frequency controller
-
Transparent intake pipe for visual inspection of airflow
-
Protective plate at inlet to prevent ingress of foreign objects
-
Throttle valve for precise airflow adjustment
-
Measurement of pressure, temperature, speed, and power
-
Flow rate determination using intake nozzle differential pressure
-
Suitable for characteristic curve and efficiency studies
Applications
-
Fluid mechanics and turbomachinery laboratories
-
Study of centrifugal compressor characteristics
-
Analysis of pressure rise and flow rate variation with speed
-
Investigation of temperature increase due to compression
-
Determination of hydraulic power output and efficiencies
Construction & Design Details
The apparatus incorporates a rigid experimental frame supporting the multi-stage centrifugal compressor, intake pipe, and delivery pipe. The intake pipe is transparent and fitted with a protective plate to ensure undisturbed airflow. Sensors are positioned to measure key operating parameters at each stage. Variable speed operation allows experiments across a wide operating range under controlled conditions.
Experiments
-
Study of operating behavior and characteristic variables of a centrifugal compressor
-
Recording of compressor characteristic curves
-
Effect of rotor speed on pressure rise
-
Effect of rotor speed on flow rate
-
Study of temperature increase due to compression
-
Determination of hydraulic power output and compressor efficiency

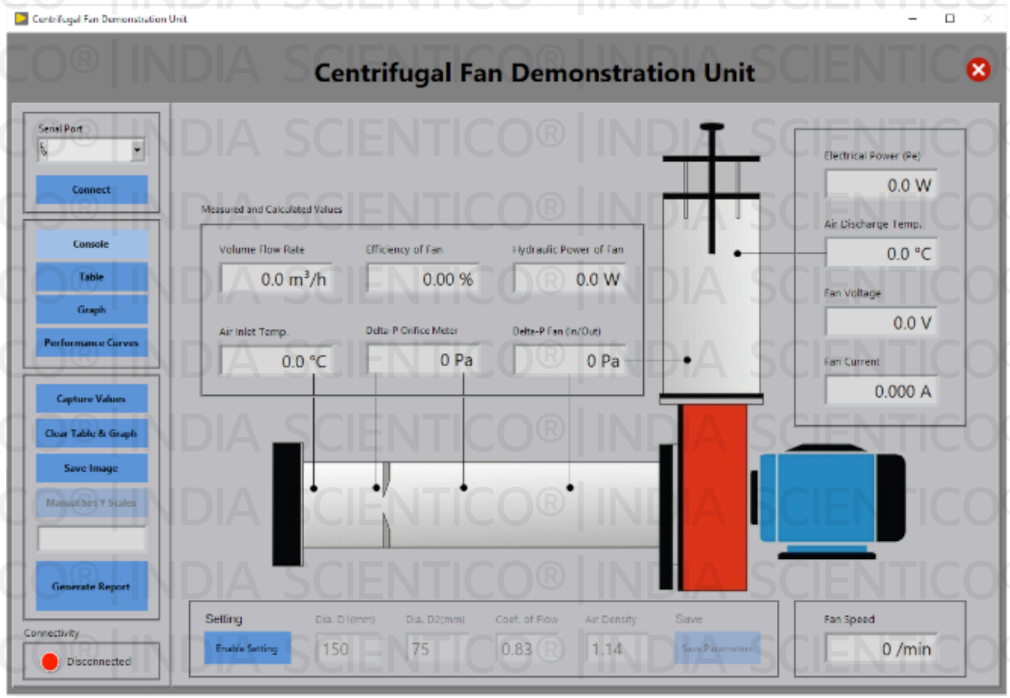

Data Acquisition Software (Optional)
Optional DAQ software developed in the NITM LabVIEW™ environment supports data acquisition, processing, and reporting on Windows systems. The software enables graphical visualization of measured parameters, calculation of performance characteristics, and generation of comprehensive CSV reports containing measured and calculated data.
Standard Scope of Delivery
-
1 experimental unit
-
1 set of instructional material
Export & Supply Capability
SCIENTICO manufactures the Centrifugal Compressor Apparatus FluidoSurge-X 260 for engineering colleges, technical universities, and research laboratories. The equipment is suitable for domestic and international supply. Export packing and documentation are provided according to customer and destination requirements.
Q1. What type of compressor is used in FluidoSurge-X 260?
It uses a two or three stage centrifugal compressor.
Q2. How is the compressor speed controlled?
The speed is controlled using a frequency controller.
Q3. How is airflow measured in the apparatus?
Airflow is determined through differential pressure measurement across the intake nozzle.
Q4. What parameters can be measured during experiments?
Pressure, temperature, speed, electrical power, hydraulic power, and efficiency can be evaluated.
Q5. Is digital data acquisition available?
Yes. Optional DAQ hardware and software are available for data logging and analysis.
