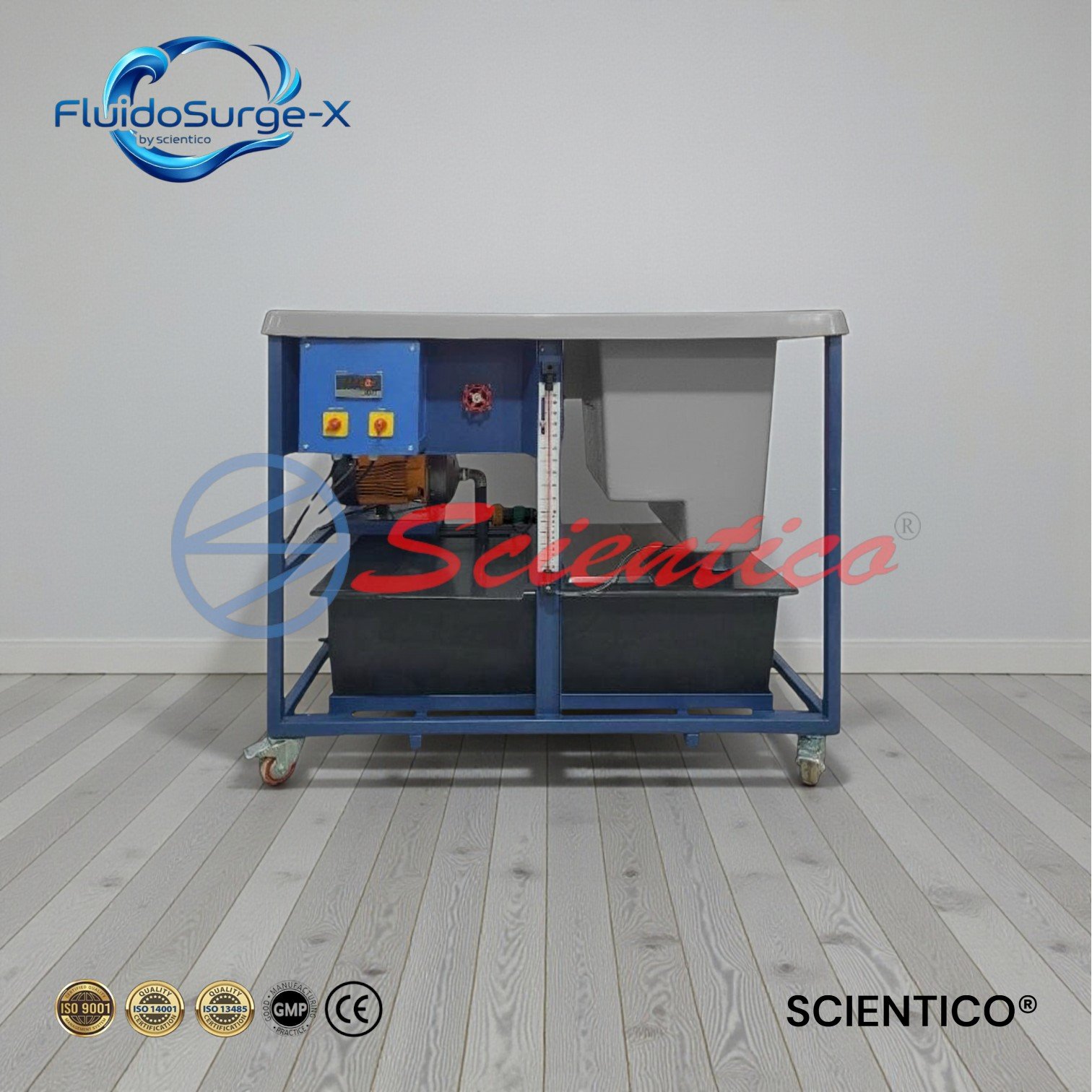

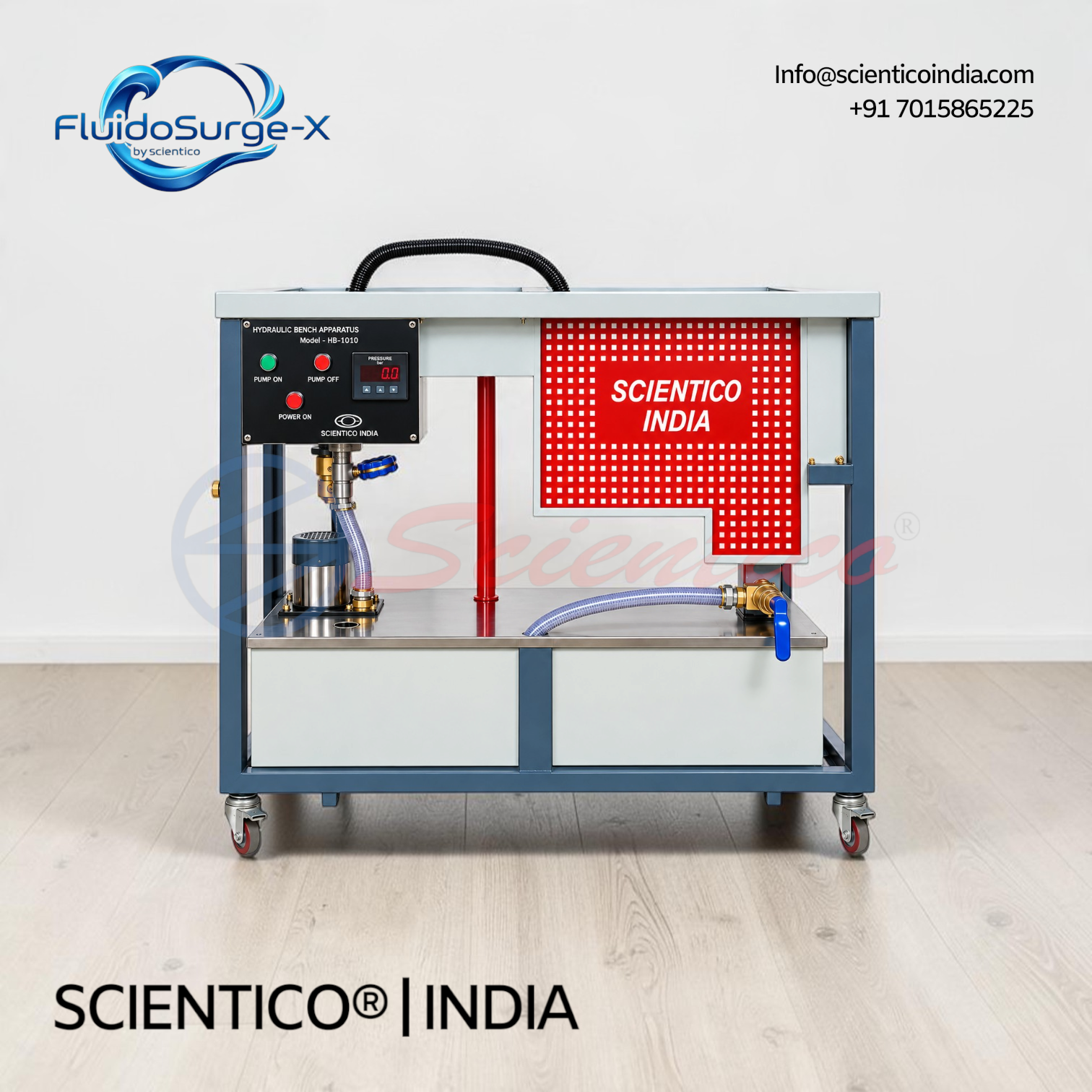

Digital Hydraulic Bench Apparatus | FluidoSurgeX 102
The SCIENTICO FluidoSurgeX 102 Digital Hydraulic Bench is designed for fundamental fluid mechanics laboratory experiments.
It features a closed water circuit with a centrifugal pump, stepped measuring tank, and digital flowmeter.
The system supports accurate volumetric flow measurement using both manual and digital methods.
An integrated flume enables weir experiments, while GRP construction ensures reliable laboratory performance.
Product Overview
The SCIENTICO FluidoSurgeX 102 Digital Hydraulic Bench is designed to supply water, measure volumetric flow rates, and support a wide range of fluid mechanics experiments.
The apparatus operates on a closed-loop water circuit consisting of a storage tank, centrifugal pump, and an elevated stepped measuring tank.
Volumetric flow rates can be determined using a measuring tank and stopwatch, supported by a digital flowmeter for direct flow indication.
The integrated work surface includes a flume for weir experiments and provides safe placement and drainage for experimental units.
| Parameter | Specification |
|---|---|
| Model | FluidoSurgeX 102 |
| Type | Digital Hydraulic Bench Apparatus |
| Application | Fluid Mechanics Laboratory |
| Water Circuit | Closed-loop system |
| Pump Type | Centrifugal pump |
| Pump Power Consumption | 500 to 746 W |
| Maximum Head | 21.5 m |
| Storage Tank Capacity | 160 L |
| Measuring Tank Capacity (Large Flow) | 40 L |
| Measuring Tank Capacity (Small Flow) | 7 L |
| Flow Measurement | Volumetric method using stopwatch |
| Digital Flowmeter Range | Up to 100 LPM |
| Work Surface | Integrated flume with safety edge |
| Construction Material | GRP |
Key Features –
-
Digital hydraulic bench for fluid mechanics experiments
-
Closed water circulation system with integrated storage and measuring tanks
-
Dual-section measuring tank for large and small volumetric flow rates
-
Digital flowmeter for direct flow indication
-
Measuring beaker for very low flow rate experiments
-
Integrated flume for conducting weir experiments
-
GRP construction for durability and corrosion resistance
Applications –
-
Fluid mechanics laboratory experiments
-
Volumetric flow rate measurement and analysis
-
Weir and open channel flow studies
-
Engineering colleges and technical institutes
-
Teaching and demonstration of hydraulic principles
Construction & Design Details –
The FluidoSurgeX 102 features GRP construction for the storage tank, measuring tank, and work surface to ensure long-term resistance to water exposure.
The measuring tank is positioned above the storage tank to collect return water efficiently.
A stepped measuring tank design allows accurate measurement across different flow ranges, while the integrated flume supports controlled weir experiments.
Export & Supply Capability –
SCIENTICO manufactures the FluidoSurgeX 102 Digital Hydraulic Bench for supply to domestic and international markets.
The equipment is suitable for export to universities, engineering colleges, and training laboratories.
Standard packing, documentation, and instruction manuals are provided for export shipments.
Q1. What makes the FluidoSurgeX 102 a digital hydraulic bench?
It is equipped with a digital flowmeter that provides direct flow rate readings in addition to manual volumetric measurement.
Q2. How is the water circulated in this system?
Water is circulated through a closed-loop system using an integrated centrifugal pump.
Q3. Can low flow rates be measured accurately?
Yes, very small flow rates can be measured using the graduated measuring beaker and stopwatch method.
Q4. What experiments can be performed using the integrated flume?
The flume is used for weir-related and open channel flow experiments.
Q5. What items are included in the scope of delivery?
The supply includes one stopwatch, one measuring beaker, one instruction manual, and one base hydraulic bench module.
