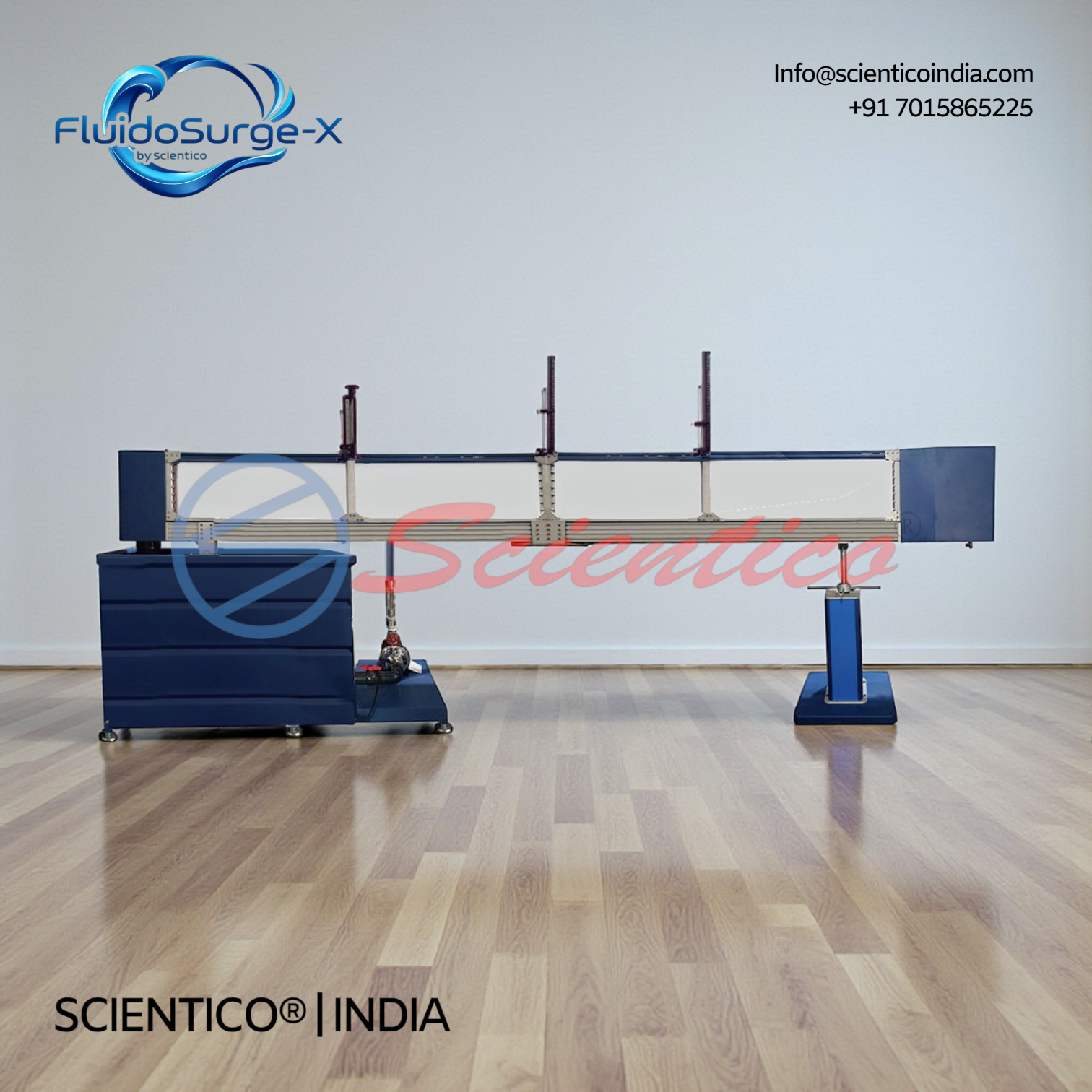

The Multi-Purpose Teaching Flume (Length 5 m) | FluidoSurge-X 240 by SCIENTICO is a large-scale open channel laboratory flume for hydraulic engineering education. It features a tempered glass experimental section, adjustable slope, and closed water circuit. The system supports a wide range of experiments using standard and optional hydraulic models. Suitable for teaching, demonstration, and advanced fluid mechanics research.
The Multi-Purpose Teaching Flume FluidoSurge-X 240 is a large-scale laboratory flume designed for teaching and experimental studies in hydraulic engineering and open-channel flow. Manufactured by SCIENTICO, the system enables detailed investigation of flow phenomena under controlled conditions. Its extended 5 m experimental section supports advanced and comparative studies. The flume operates on a closed water circuit for stable and repeatable experimentation.
Product Overview
FluidoSurge-X 240 features a 5 m long experimental section with a rectangular cross section and tempered glass side walls for clear observation of flow behavior. A flow-optimized inlet element ensures low-turbulence entry into the test section. The flume inclination can be smoothly adjusted to simulate channel slopes and achieve uniform flow at constant discharge depth. A wide range of hydraulic models can be installed to support comprehensive laboratory programs.
Standard Accessories
Control Structures
-
Sluice gate
-
Broad-crested weir
-
Sharp-crested overshot weir with aeration
-
Ogee-crested weir with chute and ski jump
-
Radial gate
-
Set of plate weirs, four types
-
Rectangular weir
-
Thomson weir
-
Cipoletti weir
Measuring Instruments
-
Vernier level gauge
-
Pitot tube with twin tube manometer
Available Accessories (Optional)
-
Crump weir, Rehbock weir
-
Air regulated siphon weir and siphon spillway
-
Venturi flume and Parshall flume
-
Trapezoidal flow-measuring flume
-
Energy dissipation elements
-
Artificially roughened bed
-
Set of piers with seven profiles
-
Wave generator, vibrating piles, beaches
-
Digital level gauge and velocity meter
-
Closed sediment circuit with sediment trap and feeder
-
Instrument carrier and electronic pressure measuremen
| Parameter | Specification |
|---|---|
| Apparatus Type | Open channel teaching flume |
| Experimental Section Length | 5 m |
| Flow Cross Section (W x H) | 150 x 360 mm ± 2 mm |
| Side Wall Material | Tempered glass |
| Wetted Materials | Stainless steel, glass reinforced plastic |
| Inclination Adjustment Range | -0.5% to +2.5% |
| Inlet Condition | Flow-optimized, low-turbulence |
| Model Mounting | 6 evenly spaced threaded holes |
| Water Circuit | Closed |
| Inclinometer | Magnetic |
| Inclinometer Range | -90° to 0° to +90° |
| Tank Capacity | 600 L |
| Pump Power Consumption | 2.2 kW |
| Maximum Flow Rate | 300 L/min |
| Maximum Head | 13 m |
Key Features
-
5 m long experimental section for extended open-channel studies
-
Tempered glass side walls for excellent visual access
-
Smoothly adjustable flume inclination for slope simulation
-
Closed water circuit with tank, pump, rotameter, and manual flow control
-
Low-turbulence inlet for stable and uniform flow
-
Corrosion-resistant construction for long-term laboratory use
-
Rapid and secure installation of hydraulic models
Applications
-
Hydraulic engineering teaching and training
-
Study of uniform and non-uniform open-channel flow
-
Investigation of hydraulic jump and energy dissipation
-
Flow over weirs, gates, and control structures
-
Velocity distribution and momentum studies
-
Sediment transport and transient flow experiments using accessories
Construction & Design Details
The experimental section is constructed using corrosion-resistant materials, with tempered glass side walls for unobstructed observation. The inlet element conditions the flow to minimize turbulence. The flume inclination is smoothly adjustable to simulate varying channel slopes. Multiple threaded mounting points allow fast and secure installation of experimental models along the flume bed.
Experiments
-
Uniform and non-uniform discharge
-
Flow transition and hydraulic jump
-
Energy dissipation in stilling basins
-
Flow over sharp-crested, broad-crested, and ogee-crested weirs
-
Discharge under gates and flow-measuring flumes
-
Local losses due to obstacles and piers
-
Transient flow including waves and vibrations
-
Sediment transport studies

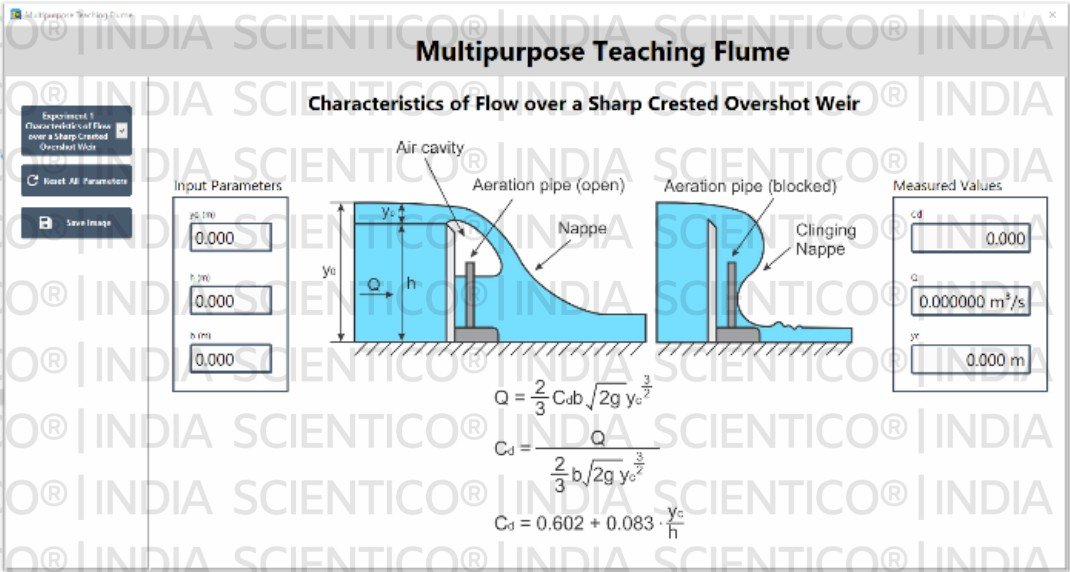

Data Acquisition Software (Optional)
Optional DAQ software developed in the NITM LabVIEW™ environment supports data acquisition, processing, and reporting on Windows systems. The software enables precise measurement and calculation of experimental parameters, visualization using tables and graphs, and generation of comprehensive CSV reports containing measured and calculated data.
Standard Scope of Delivery
-
1 experimental flume
-
1 set of standard accessories
-
1 instruction manual
Export & Supply Capability
SCIENTICO manufactures the Multi-Purpose Teaching Flume FluidoSurge-X 240 for engineering institutes, technical universities, and research laboratories. The system is suitable for domestic and international supply. Export packing, documentation, and accessory configuration are provided as per customer and destination requirements.
Q1. What is the length of the experimental section?
The experimental section length is 5 m.
Q2. Can the flume slope be adjusted?
Yes. The inclination can be adjusted from -0.5% to +2.5%.
Q3. What materials are used for wetted components?
All wetted components are made from corrosion-resistant materials such as stainless steel and glass reinforced plastic.
Q4. Are control structures included as standard?
Yes. A set of standard control structures and measuring instruments is supplied.
Q5. Is digital data acquisition supported?
Yes. Optional DAQ hardware and software are available for data logging and analysis.
