The Pipe Network Apparatus | FluidoSurge-X 228 by SCIENTICO is a modular laboratory system for studying flow behavior in interconnected pipe networks. It supports experiments on head loss, discharge, and flow distribution in series, parallel, and mixed configurations. The apparatus features tool-free reconfiguration, individual flow control, and pressure measurement points. Suitable for fluid mechanics and hydraulics laboratories.

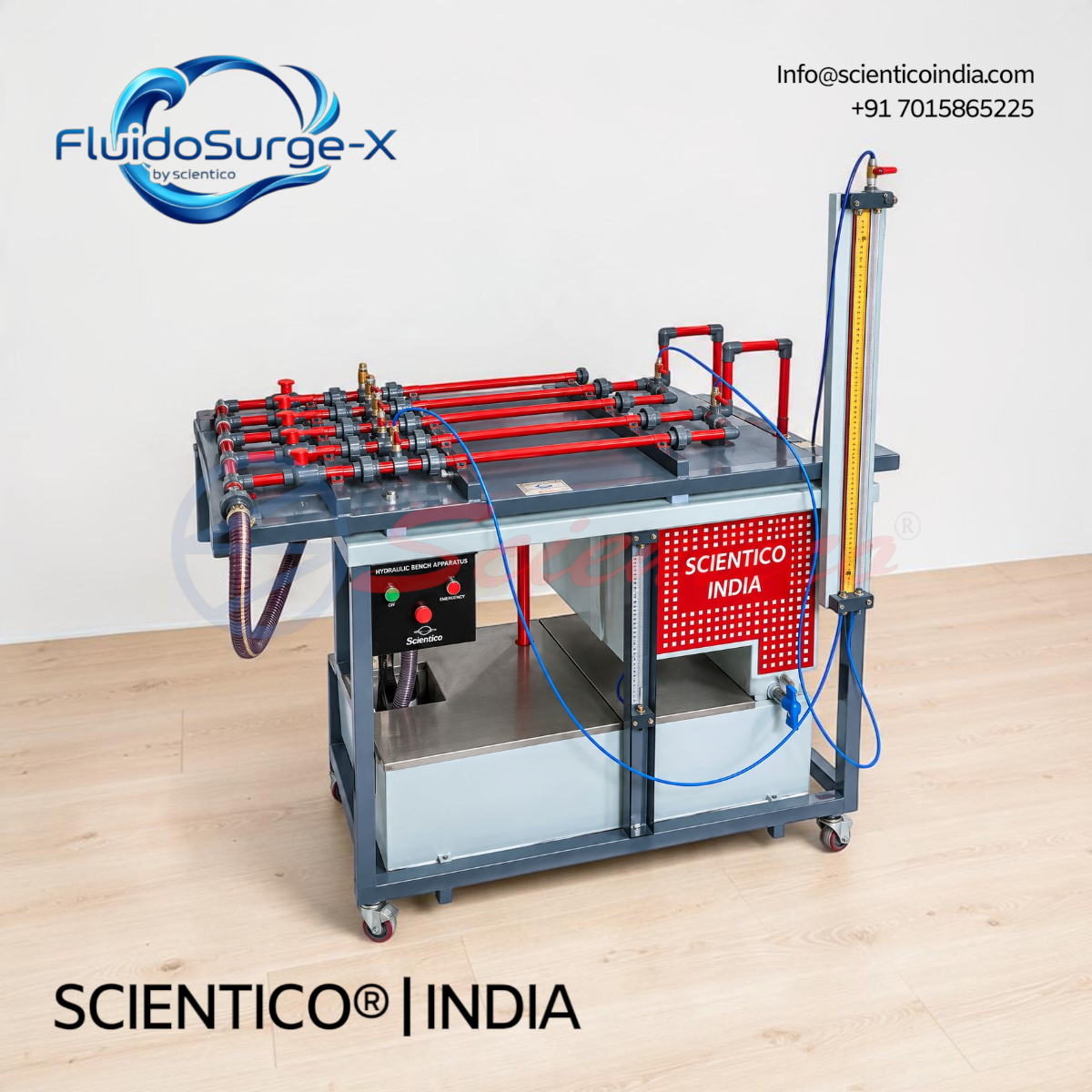

The Pipe Network Apparatus FluidoSurge-X 228 is a laboratory training system designed to study flow behavior in interconnected pipe networks. Manufactured by SCIENTICO, the apparatus allows experimental investigation of head loss, discharge, and flow distribution in series, parallel, and mixed pipe configurations. The system is suitable for hands-on instruction in fluid mechanics and hydraulics laboratories. It operates using a hydraulic bench or laboratory water supply.
Product Overview
FluidoSurge-X 228 consists of a modular arrangement of PVC pipes and fittings mounted on a freestanding support frame. The design enables rapid reconfiguration of pipe networks without draining the system. Individual isolating valves allow precise control of inlet and outlet flows. Differential pressures at selected points in the network are measured using quick-release connections for manometers, while overall discharge is measured using a volumetric hydraulic bench.
| Parameter | Specification |
|---|---|
| Apparatus Type | Pipe network flow analysis unit |
| Mounting | Freestanding support frame |
| Pipe Material | PVC |
| Pipe Length | 0.7 m each |
| Pipe Internal Diameters | 1 × 9.5 mm, 2 × 14 mm, 1 × 12.7 mm, 1 × 18.5 mm |
| Pipe Connections | Union fittings with O-ring seals |
| Flow Control | Individual isolating valves |
| Pressure Measurement | U-tube manometer connections |
| Discharge Measurement | Volumetric hydraulic bench |
| Water Supply | Hydraulic bench or laboratory tap water |
| Sump Tank Capacity | 175 L |
Key Features
-
Modular pipe network for series, parallel, and mixed configurations
-
Freestanding frame suitable for independent laboratory setup
-
Tool-free pipe repositioning using union and O-ring connections
-
Individual flow control at network inlets and outlets
-
Self-sealing quick-release fittings for pressure measurement
-
Compatible with volumetric measurement using a hydraulic bench
-
Designed for repeated reconfiguration without system drainage
Applications
-
Fluid mechanics laboratory experiments
-
Study of head loss versus discharge in pipes
-
Analysis of flow distribution in pipe networks
-
Investigation of parallel and series pipe characteristics
-
Demonstration of ring main behavior and flow redistribution
Construction & Design Details
The apparatus uses rigid PVC pipes mounted on a stable freestanding support frame. Pipes are connected using unions with O-ring seals, allowing rapid rearrangement of network layouts without tools. Reinforced flexible hoses with quick-release fittings connect the network to the water source. Strategic pressure tapping points with self-sealing connectors enable fast attachment of manometers for differential pressure measurement.
Experiments
-
Measurement of head loss versus discharge for different pipe diameters
-
Study of flow through series pipe networks
-
Study of flow through parallel pipe networks
-
Investigation of flow in mixed and interconnected pipe systems
-
Effect of doubling pipes on flow rate
-
Analysis of ring main behavior under changing supply and off-take conditions
Required for Operation
-
Hydraulic bench with closed water circuit or laboratory water connection
-
Sump tank with approximately 175 L capacity
Standard Scope of Delivery
-

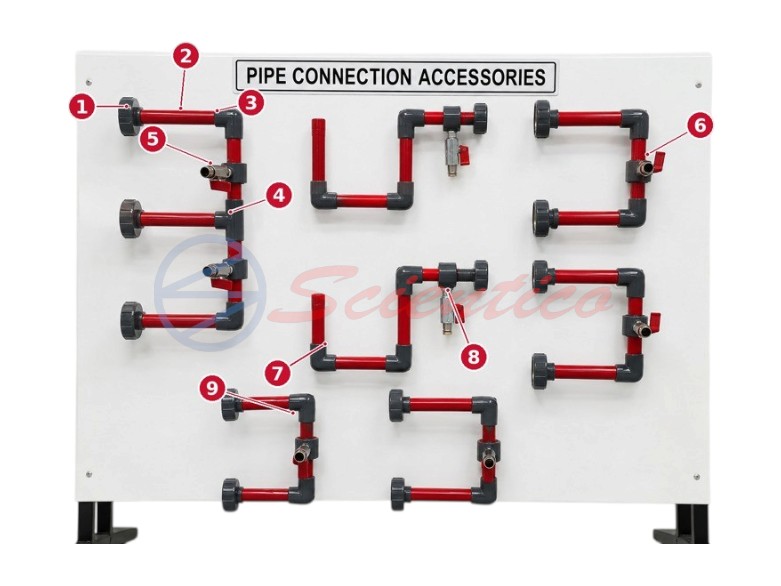

1 experimental module
-
Assorted flexible pipes of different diameters
-
1 instruction manual
Optional Accessories
-
U-tube manometer up to 1 m with 1 mm graduation
-
Water manometer with hand pump
-
Mercury manometer
Export & Supply Capability
SCIENTICO manufactures the Pipe Network Apparatus FluidoSurge-X 228 for engineering colleges, technical universities, and training laboratories. The equipment is suitable for domestic and international supply. Export packing and documentation are provided according to customer and destination requirements.
Q1. What types of pipe configurations can be created with this apparatus?
Series, parallel, mixed networks, and ring main configurations can be assembled.
Q2. Can the network be reconfigured without draining the system?
Yes. Union fittings with O-ring seals allow repositioning without draining.
Q3. How is flow rate measured in the system?
Flow leaving the network is measured using a volumetric hydraulic bench.
Q4. How are pressure losses measured?
Differential pressures are measured using manometers connected via self-sealing quick-release fittings.
Q5. Is a hydraulic bench included with the apparatus?
No. A hydraulic bench or laboratory water supply is required for operation.
