Deflection of Beam Apparatus

Deflection of Beam Apparatus | FortiTestX 06

The FortiTestX 06 Deflection of Beam Apparatus is a benchtop structural mechanics unit for investigating beam deflection, slope, and support reactions under statically determinate and indeterminate conditions. It is supplied with fifteen interchangeable beam sections across five materials and three cross-sectional thicknesses, three articulated supports with built-in force gauges, three dial gauges, and four calibrated weight sets. The anodized aluminum frame houses the complete setup with an integrated storage system. Manufactured by SCIENTICO, the FortiTestX 06 is suited for strength of materials and structural analysis laboratory courses in civil and mechanical engineering programmes, and is available for international supply to institutions and distributors. Optional LabVIEW-based data logging software is available.

Download Catalog

Category Strength of Materials

The FortiTestX 06 Deflection of Beam Apparatus is a comprehensive benchtop experimental unit designed for the investigation of beam deflection, slope measurement, and support reaction determination under various loading and support conditions. Manufactured by SCIENTICO, this apparatus is intended for use in strength of materials, structural mechanics, and civil and mechanical engineering laboratory programmes at engineering colleges, technical universities, and research laboratories. It supports both statically determinate and statically indeterminate beam configurations, enabling students to compare experimental measurements directly against analytical results derived from differential equations and the Area Moment Method.

Product Overview

Beams are fundamental structural elements in both civil and mechanical engineering. A beam resists transverse loading primarily through bending, generating internal compressive, tensile, and shear stresses along its length. Understanding beam deflection behaviour — how a beam deforms under load as a function of its geometry, material, and support conditions — is a core competency in structural analysis and materials science education.

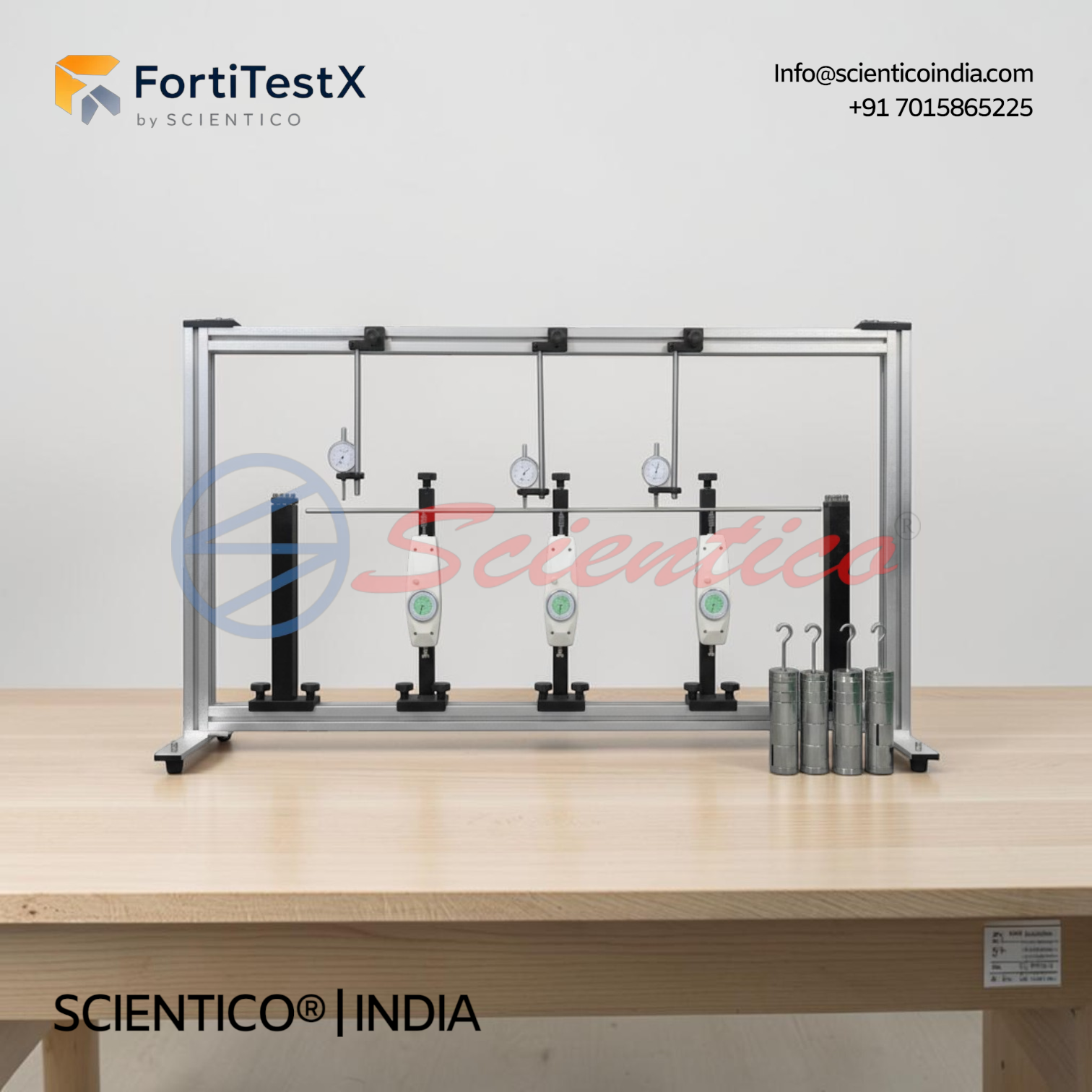

The FortiTestX 06 is housed in an anodized aluminum section frame that contains the complete experimental setup. The investigation beam is supported by up to three articulated, height-adjustable supports, each fitted with a built-in force gauge that provides direct readings of support reactions. Support height adjustment compensates for the dead weight of the beam under investigation. Two additional supports with clamp fixing allow cantilever and other fixed-end configurations to be established. The points of load application are adjustable along the beam span, and up to four sets of calibrated weights can be applied simultaneously — either as point loads using load hangers or as uniform loads using multiple weights with adjustable riders.

Three dial gauges measure deflection and slope at selected points along the beam. The apparatus is supplied with fifteen beam sections across five materials — stainless steel, brass, aluminum, mild steel, and copper — each available in three cross-sectional thicknesses (19 x 3 mm, 19 x 5 mm, and 19 x 6 mm). This range enables systematic investigation of the influence of elastic modulus and cross-sectional geometry on beam deflection behaviour. All components are organised and stored in a dedicated storage system integrated with the frame. Optional LabVIEW-based software is available for data logging and results processing.

Parameter	Details
Model	FortiTestX 06
Unit Type	Benchtop, anodized aluminum section frame
Beam Materials	Stainless steel, brass, aluminum, mild steel, copper
Beam Cross-Sections (all materials)	19 x 3 mm, 19 x 5 mm, 19 x 6 mm
Total Beam Sections Supplied	15 (3 cross-sections × 5 materials)
Articulated Supports with Force Gauge	3; height-adjustable; range 0–100 N; least count 0.5 N
Supports with Clamp Fixing	2
Dial Gauges	3
Weight Sets	4 sets with adjustable riders
Weights Supplied	4 × 0.5 N hangers, 8 × 0.5 N, 8 × 1 N, 8 × 2 N, 8 × 5 N
Measuring Scale	1 m length
Optional Software	FT-06 — LabVIEW-based data logging; Windows compatible
Scope of Delivery	1 experimental unit, 1 storage unit, 3 dial gauges, 4 weight sets, 3 articulated supports with force gauges, 2 supports for clamping, 5 beam sets, 1 manual, 1 measuring scale (1 m)

Key Features

Anodized aluminum section frame houses the complete experimental setup with integrated storage system
Supports statically determinate and indeterminate beam configurations including cantilever, single-span, dual-span, and triple-span arrangements
Three height-adjustable articulated supports with built-in force gauges provide direct support reaction readings
Force gauges feature zeroing, peak hold, and tracking functions
Support height adjustment compensates for beam dead weight prior to loading
Fifteen interchangeable beam sections across five materials and three cross-sectional thicknesses
Three dial gauges measure deflection and slope at selectable positions along the beam span
Load application points are adjustable; up to four weight sets can be applied simultaneously
Optional LabVIEW-based software available for automated data logging and results processing

Applications

Investigation of deflection and slope for statically determinate and indeterminate beams
Cantilever beam deflection measurement at the point of load application
Dual-span and triple-span beam experiments with simultaneous support reaction and deformation measurement
Determination of elastic lines under various clamping and support conditions
Study of the influence of elastic modulus and cross-sectional geometry on beam deflection
Verification of Maxwell-Betti reciprocal theorem coefficients
Application of the principle of virtual work to statically determinate and indeterminate beams
Arithmetic and qualitative determination of influence lines using the Muller-Breslau method
Formulation and verification of differential equations for the elastic line

Construction and System Design

The apparatus is built within a rigid anodized aluminum section frame that provides a stable and consistent reference plane for all beam and support configurations. The three articulated supports are height-adjustable via fine adjustment mechanisms and incorporate integrated force gauges with zeroing, peak, and tracking functions, allowing support reactions to be read directly without external instrumentation. The clamp-fixing supports establish fixed-end boundary conditions for cantilever and other statically indeterminate configurations. Beam sections are interchangeable and standardized to a width of 19 mm across all five materials, with thickness varying across the three supplied cross-sections. The adjustable riders on the weight sets allow uniform load distribution to be simulated along defined spans. All experimental components are stored in a dedicated storage system within the frame, keeping the apparatus organised and ready for repeated laboratory use.

Export and Supply Capability

SCIENTICO manufactures and supplies the FortiTestX 06 Deflection of Beam Apparatus to engineering institutions and laboratory equipment distributors internationally. The unit is packaged for safe transit and is suitable for supply to universities, civil and mechanical engineering departments, and technical training institutes across export markets. Customization of beam materials, cross-sections, or software integration is available upon inquiry.

1. What beam configurations can be tested using the FortiTestX 06?
The apparatus supports cantilever beams, single-span beams, dual-span beams, and triple-span beams under both statically determinate and statically indeterminate conditions. End conditions can be varied using the interchangeable articulated supports and clamp-fixing supports.

2. How many beam sections are supplied and what materials are available?
Fifteen beam sections are supplied across five materials — stainless steel, brass, aluminum, mild steel, and copper — each available in three cross-sections: 19 x 3 mm, 19 x 5 mm, and 19 x 6 mm. This range enables direct comparison of the effect of elastic modulus and cross-sectional geometry on beam deflection.

3. How are support reactions measured on the FortiTestX 06?
Three articulated supports are fitted with built-in force gauges with a measurement range of 0 to 100 N and a least count of 0.5 N. The gauges feature zeroing, peak hold, and tracking functions and provide direct support reaction readings without the need for external instrumentation.

4. Is software available for the FortiTestX 06?
Yes. Optional LabVIEW-based software is available for automated data logging and results processing. It is compatible with any Windows operating system and is designed specifically for use with the FortiTestX 06 experimental setup.

5. What analytical methods can be verified using the FortiTestX 06?
The apparatus supports experimental verification of results obtained from differential equation analysis, the Area Moment Method, the principle of virtual work, Maxwell-Betti reciprocal theorem coefficients, and influence line determination using both arithmetic methods and the qualitative Muller-Breslau force method.
