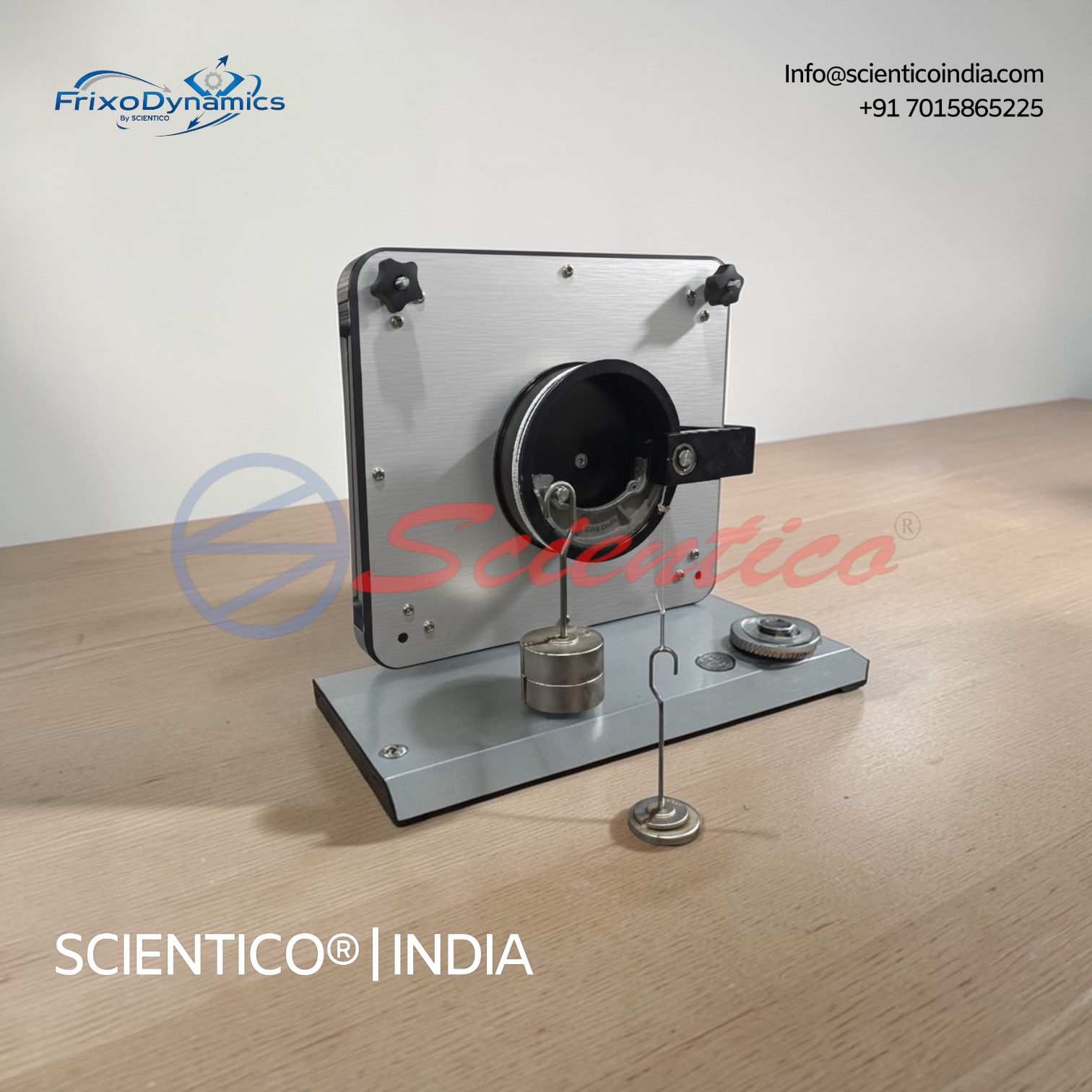

The SCIENTICO FrixoDynamics FX-520 Drum Friction Apparatus is a bench-top experimental unit for the investigation of drum brake friction using a single pivoted shoe inside a plain aluminium drum of 130 mm internal diameter. Calibrated dead weights applied to two independent cord-and-hanger systems control the braking load on the shoe and the torque applied to the drum separately. Students record the torque hanger load required to rotate the drum at near-constant speed across a range of braking load increments, construct a tangential force versus braking load graph, and derive the coefficient of friction directly from its slope. Leading shoe and trailing shoe behaviours are compared by reversing the direction of drum rotation — requiring no component changes. The apparatus directly simulates the operating principle of a real single-shoe drum brake system. Supplied complete with brake drum, brake shoe, two weight sets, two hangers, and thread. Manufactured by SCIENTICO, available for institutional supply and international distribution.

Download Catalog

Category Forces and Friction

The SCIENTICO FrixoDynamics FX-520 Drum Friction Apparatus is a bench-top experimental unit for the investigation of friction in a drum brake system using a single pivoted brake shoe. Students determine the relationship between the braking load applied to the shoe and the tangential force generated at the drum surface, derive the coefficient of friction between the aluminium drum and the brake shoe material, and compare the behaviour of the brake shoe as a leading shoe and as a trailing shoe by reversing the direction of drum rotation. The apparatus directly simulates the operating principle of a real drum brake system and uses calibrated dead weights applied via cord and hanger to control both drum torque and braking load. Manufactured by SCIENTICO, the FX-521 is suitable for supply to engineering institutions and distributors worldwide.

Product Overview

Drum brakes are widely used in automotive and industrial applications. Their performance depends critically on the coefficient of friction between the brake shoe lining and the drum surface, and on whether the shoe is configured as a leading shoe or a trailing shoe relative to the direction of drum rotation. A leading shoe is one whose pivot geometry causes the friction force to draw the shoe tighter against the drum as braking load increases — producing a self-energising or servo effect that amplifies the braking force beyond the directly applied load. A trailing shoe exhibits the opposite behaviour, with friction tending to push the shoe away from the drum, requiring higher applied loads to achieve the same braking torque. The FX-520 allows both behaviours to be demonstrated and compared within the same apparatus simply by reversing the direction of drum rotation.

The apparatus consists of a plain aluminium drum of 130 mm internal diameter, machined to a precise surface finish. A cord is wound around the drum perimeter and connected to a torque hanger. By adding calibrated weights to this hanger, a known torque is applied to the drum, tending to rotate it. Inside the drum, a single brake shoe is mounted on a pivot and connected via a separate cord to a braking load hanger. As weights are added to the braking load hanger, the shoe is pressed against the inner drum surface, generating a friction force that opposes drum rotation. The student adds weights to the torque hanger until the drum rotates at near-constant speed, establishing the relationship between the torque-producing tangential force and the applied braking load at that condition.

By recording the torque hanger load and the braking load hanger load at successive braking load increments, students construct a tangential force versus braking load graph. The slope of this graph gives the coefficient of friction directly. Repeating the experiment with the drum torque cord rewound in the opposite direction reverses the sense of rotation, converting the leading shoe configuration to a trailing shoe configuration, allowing the characteristic difference in braking behaviour between the two to be clearly observed and quantified.

Parameter	Specification
Model	FrixoDynamics FX-520
Drum Internal Diameter	130 mm
Drum Material	Plain aluminium
Brake Shoe Configuration	Single pivoted shoe
Torque Application	Cord wound on drum perimeter, dead weights on hanger
Braking Load Application	Cord connected to brake shoe, dead weights on hanger
Leading/Trailing Shoe Transition	Reversal of drum rotation direction
Weight Set	5 x 5 N, 4 x 2 N, 4 x 1 N, 2 x 0.5 N, 1 x 1 N hanger, 1 x 0.5 N hanger
Hangers	2
Scope of Delivery	1 experimental unit, 1 brake drum, 1 brake shoe, 2 sets of weights, 2 hangers, 1 thread

Key Features

Single pivoted brake shoe inside a 130 mm internal diameter plain aluminium drum for realistic drum brake simulation
Direct comparison of leading shoe and trailing shoe braking behaviour by reversal of drum rotation direction — no reconfiguration of components required
Torque and braking load both applied via cord and dead weight hangers for independent, precise control of each variable
Tangential force versus braking load graph directly yields the coefficient of friction between drum and shoe
Two independent weight sets and hangers allow torque and braking load to be varied simultaneously without weight transfer between hangers
Compact bench-top design — self-contained, no power supply required
Simulates the operating principle of a real single-shoe drum brake in a safe, controllable laboratory format
Calibrated weight set with denominations from 0.5 N to 5 N for fine incremental braking load variation

Applications

Experimental determination of the variation of tangential force with braking load in a drum brake system
Determination of the coefficient of friction between an aluminium drum and a brake shoe
Comparison of leading shoe and trailing shoe braking characteristics
Demonstration of the self-energising effect in leading shoe brake configurations
Study of the relationship between applied braking load, drum torque, and friction force
Undergraduate laboratory practicals in machine elements, tribology, mechanical engineering design, and applied mechanics
Supplementary demonstration for courses covering brake system design, friction, and power transmission

Construction and System Design

The FX-520 is built around a plain aluminium drum of 130 mm internal diameter, machined to a consistent surface finish to ensure repeatable friction conditions across experiments. The drum is mounted on the apparatus frame with its axis horizontal. A cord is wound around the outer perimeter of the drum and led to a weight hanger, providing the torque loading. The torque direction — and therefore the sense of drum rotation at impending slip — is determined by the direction in which the cord is wound.

Inside the drum, a single brake shoe is mounted on a fixed pivot point. The shoe is shaped to conform to the inner drum surface and carries a friction lining on its contact face. A cord attached to the shoe leads out of the drum to a separate braking load hanger. As the braking load hanger is loaded with weights, the shoe is pressed against the drum surface with a controlled normal force, generating a tangential friction force at the drum surface.

The student increases the torque hanger load incrementally until the drum rotates at near-constant speed under the applied braking load. This condition identifies the tangential force needed to overcome the shoe’s friction resistance at that braking load level. The experiment is repeated at successive braking load increments, building up a dataset from which the coefficient of friction is extracted as the slope of the tangential force versus braking load graph.

To compare leading and trailing shoe behaviour, the cord on the drum perimeter is rewound in the opposite direction, reversing the rotation sense. With the same braking load applied, the torque required to rotate the drum at near-constant speed will differ significantly between the two configurations — more torque is required to overcome a leading shoe than a trailing shoe at the same braking load, directly illustrating the self-energising effect.

Export and Supply Capability

The SCIENTICO FrixoDynamics FX-520 is available for supply to engineering colleges, technical universities, mechanical engineering departments, research institutions, and industrial training centres. SCIENTICO manufactures and exports laboratory equipment to institutions and distributors across multiple regions. Standard packaging is suitable for international shipment. Bulk orders, customised configurations, and institutional procurement enquiries are welcomed. Please contact SCIENTICO directly for pricing, lead times, and shipping terms.

Q1 : What is the drum friction apparatus used for in engineering education?

The FX-5210 is used to investigate friction in a drum brake system. Students apply a controlled braking load to a single pivoted shoe inside an aluminium drum and measure the tangential force required to rotate the drum at near-constant speed. From the relationship between these two quantities, the coefficient of friction between the drum and shoe is determined. The apparatus also demonstrates the characteristic difference in braking behaviour between a leading shoe and a trailing shoe.

Q2: What is the difference between a leading shoe and a trailing shoe, and how does the FX-520 demonstrate it?

A leading shoe is configured so that the friction force between the shoe and the rotating drum tends to draw the shoe tighter against the drum, amplifying the braking effect beyond the directly applied load — known as the self-energising effect. A trailing shoe is configured so that friction tends to push the shoe away from the drum, requiring a higher applied load for the same braking torque. The FX-520 demonstrates both configurations by rewinding the torque cord in the opposite direction to reverse the drum rotation sense, converting the shoe between leading and trailing without changing any other component.

Q3: How is the coefficient of friction determined using the FX-520?

The coefficient of friction is determined by recording the torque hanger load required to rotate the drum at near-constant speed for a series of braking load values. Plotting tangential force against braking load produces a straight-line graph whose slope equals the coefficient of friction between the drum surface and the brake shoe lining. Separate graphs for the leading and trailing shoe configurations allow direct comparison of friction coefficient values and the self-energising effect.

Q4: Why is the drum made from plain aluminium?

Plain aluminium is used for the drum because its consistent surface finish and well-characterised tribological properties make it suitable for repeatable, controlled friction experiments in a laboratory setting. Using a defined drum material also means the coefficient of friction determined experimentally reflects the specific pairing of the aluminium drum surface with the brake shoe lining material, which is a meaningful and realistic material combination found in certain brake applications.

Q5: What is included in the scope of delivery for the FX-520?

The FX-520 is supplied as a complete experimental kit including: one drum friction experimental unit; one plain aluminium brake drum (130 mm internal diameter); one pivoted brake shoe; two sets of calibrated weights (5 x 5 N, 4 x 2 N, 4 x 1 N, 2 x 0.5 N, 1 x 1 N hanger, 1 x 0.5 N hanger); two weight hangers; and one thread for cord setup and drum torque application.
