Flocculation Test Unit – HydraNexis HNX 10

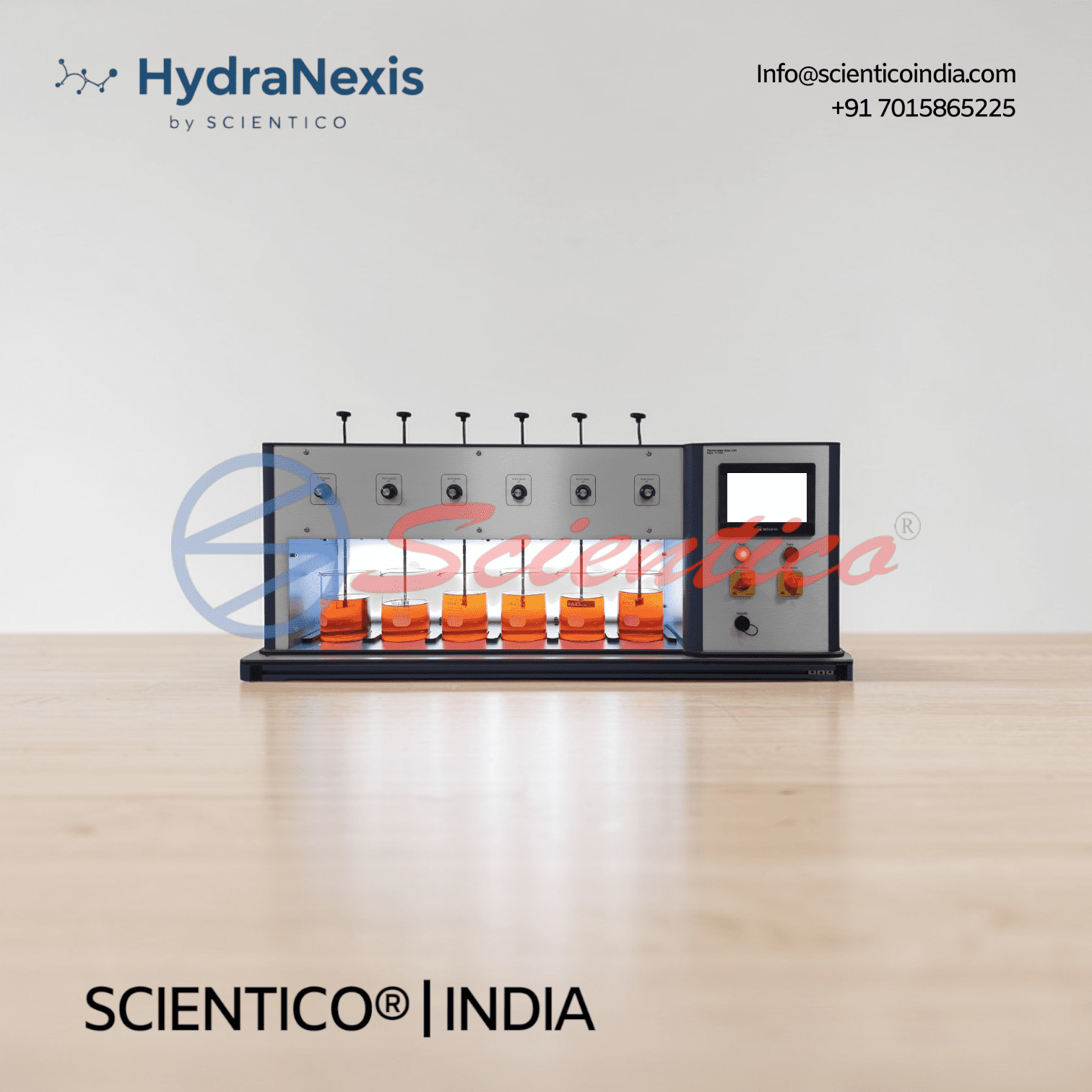

The Flocculation Test Unit (HydraNexis HNX 10) by SCIENTICO is a six-station jar test system for determining optimum coagulation and flocculation conditions. With independent variable-speed stirrers, digital control, and flexible operation, it is ideal for laboratory studies, plant optimization, and educational training in water treatment technology.
The Flocculation Test Unit (HydraNexis HNX 10) by SCIENTICO is a compact, bench-top laboratory system designed for coagulation and flocculation (jar test) studies, which are essential preliminary tests before designing or optimizing water and wastewater treatment plants. The unit enables simultaneous testing under controlled and repeatable conditions to determine optimal treatment parameters.
Product Overview
Before full-scale implementation of a water or wastewater treatment process, coagulation and flocculation tests are carried out to determine the most effective chemical dosages, pH conditions, and mixing regimes. The HydraNexis HNX 10 allows these evaluations through six parallel jar tests, providing reliable comparative results in a single experimental run.
Jar tests are widely used in treatment plants to optimize daily operations. They help identify:
- Optimum coagulant dosage
- Required pH adjustment
- Effectiveness of activated carbon addition
- Floc formation rate and settleability
- Water clarity and filter run performance
| Parameter | Specification |
|---|---|
| Stirrer Speed Range | 0–300 RPM |
| Paddle Blade Dimensions | 50 mm × 15 mm |
| Number of Test Stations | 6 |
| Beaker Volume | 6 × 1000 mL |
| Test Tube Capacity | 16 mm × 150 mm |
Key Features
- Bench-top coagulation and flocculation test unit
- Six independent variable-speed stirrers
- Digital touch LCD display and control
- Integrated LED illumination
- Adjustable stirring blade height during operation
- Removable stirrer assemblies for easy cleaning
- Stainless steel paddle shafts for corrosion resistance
- Built-in timer function
- Low-voltage operation via universal power supply for enhanced safety
Experiments & Learning Outcomes
- Determination of optimum coagulant dosage
- Determination of optimum pH value
- Effect of mixing time and mixing intensity on floc formation
- Coagulation and flocculation with activated carbon
- Coagulation tests combined with filterability studies
Process Capabilities
- Coagulation and flocculation (jar testing)
- Optimization of chemical dosage and pH
- Evaluation of mixing intensity and duration
- Study of floc settleability and filterability
Construction & System Design
The HydraNexis HNX 10 is designed for laboratory durability, precision, and user convenience. Independent drives ensure reproducibility of results, while the modular stirrer assemblies simplify operation and maintenance. The compact footprint makes it ideal for teaching laboratories, research facilities, and treatment plant testing rooms.
Software (Optional)

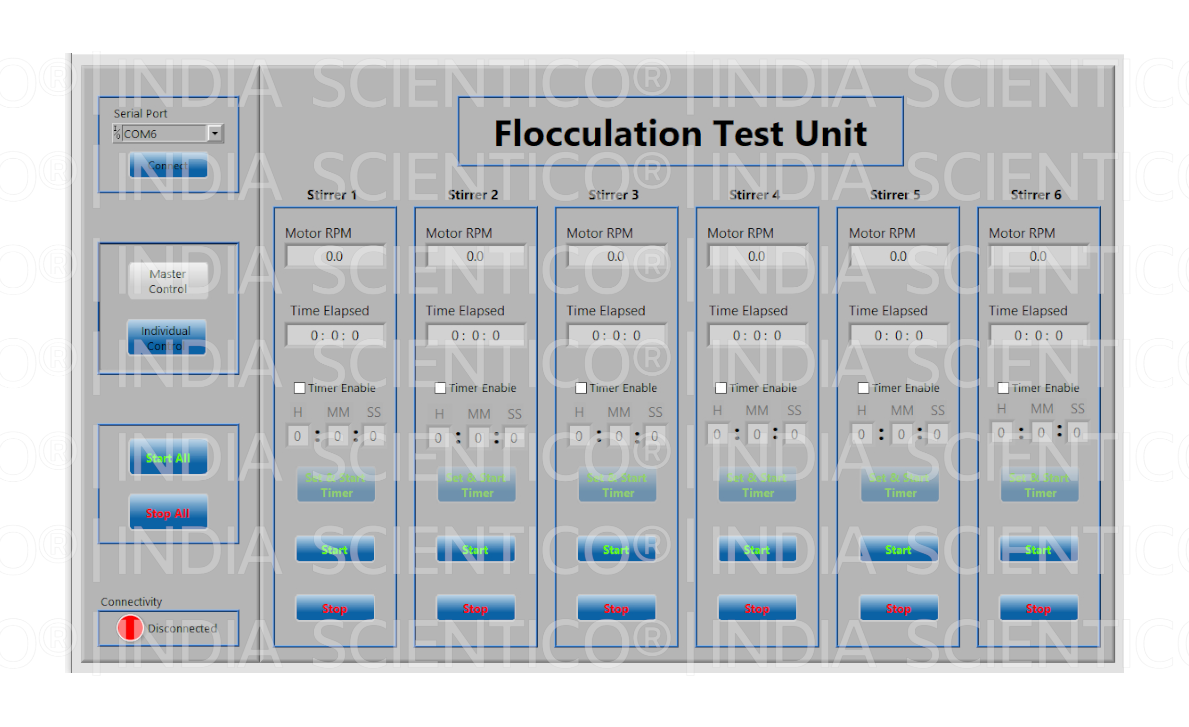

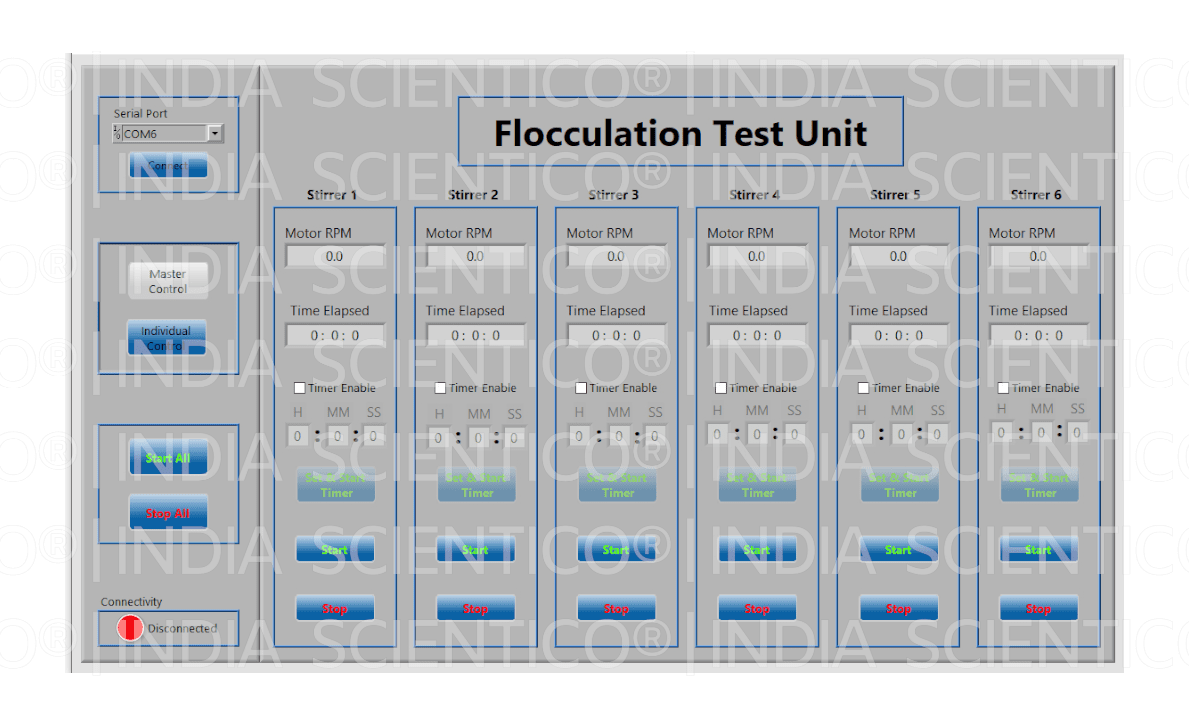

HNX 10SW (Optional DAQ Software)
- Developed in National Instruments™ LABVIEW™ environment
- Enables data measurement, logging, and analysis
- Compatible with Windows™ operating systems
- Supplied with electronic sensors when selected
Scope of Delivery
- 1 × Flocculation Test Experimental Unit
- 1 × Instruction Manual
Applications
- Water and wastewater treatment plant design
- Process optimization and operational control
- Academic teaching and laboratory demonstrations
- Research on coagulation and flocculation kinetics
- Training of plant operators and engineers
